Power Seat Track With Power Recline and Heat

Power Seat Track With Power Recline and Heat

Cushion Frame From Underneath:

Cushion Frame With Power Seat Track Attached From Underneath:

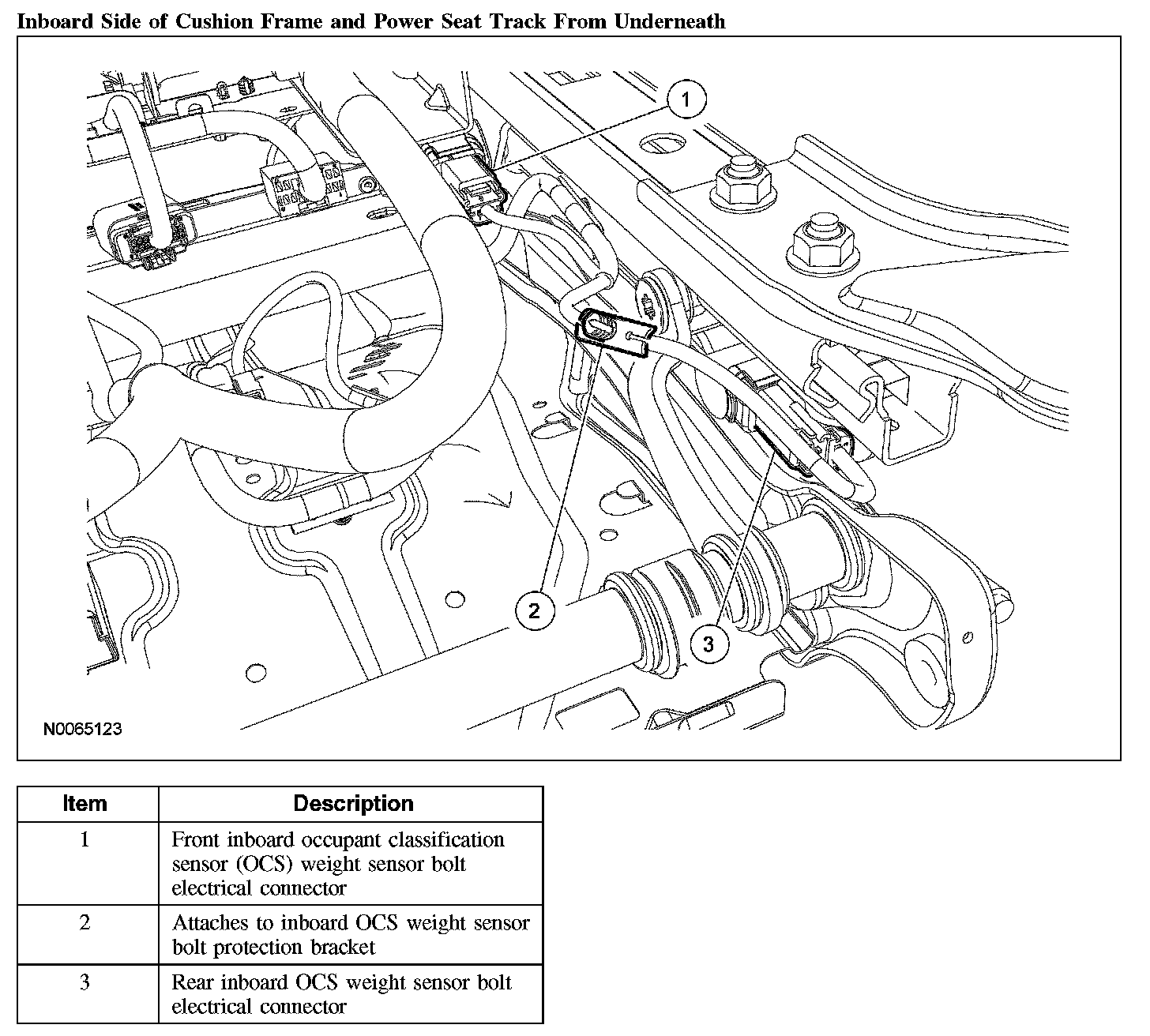

Inboard Side Of Cushion Frame And Power Seat Track From Underneath:

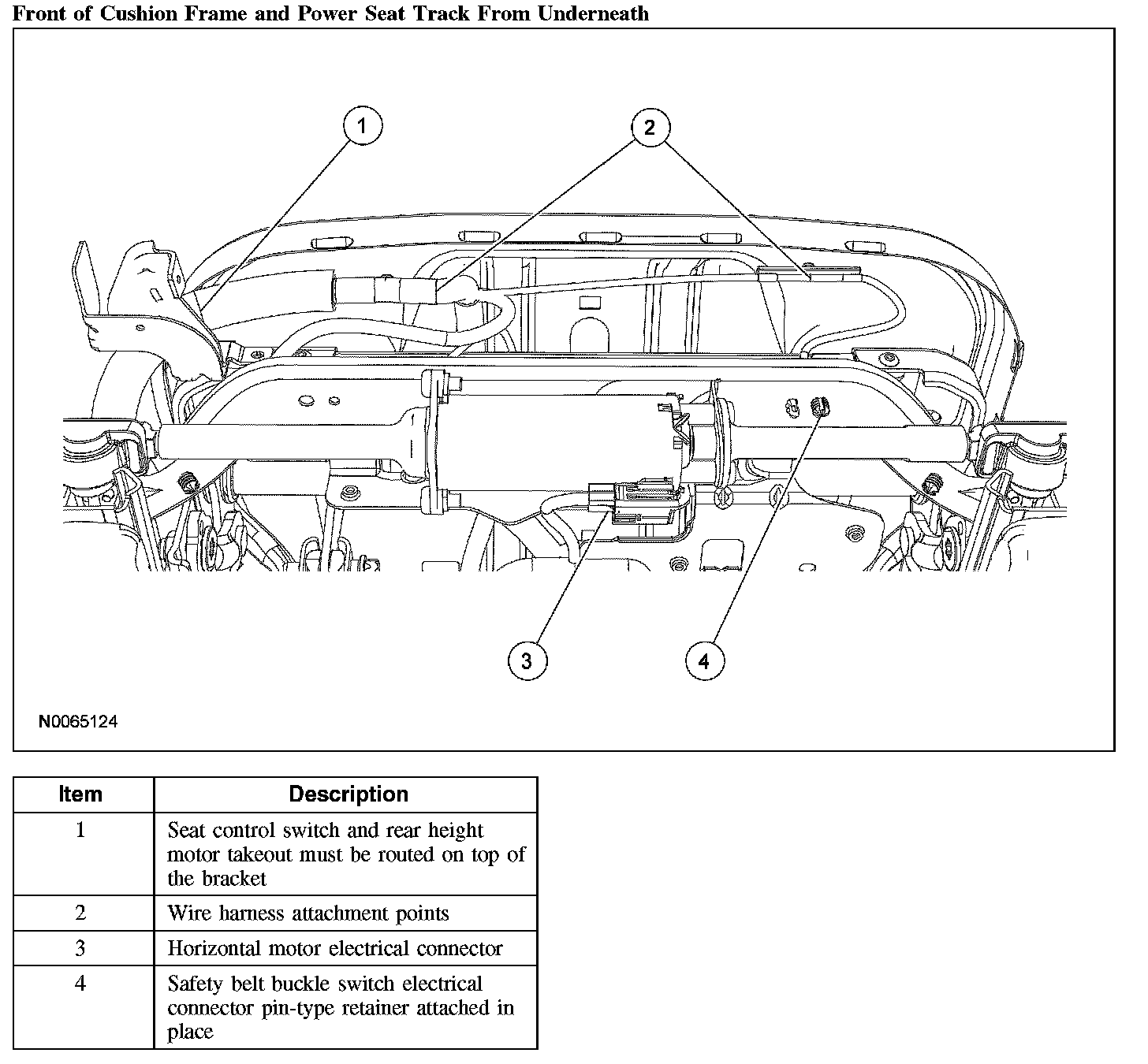

Front Of Cushion Frame And Power Seat Track From Underneath:

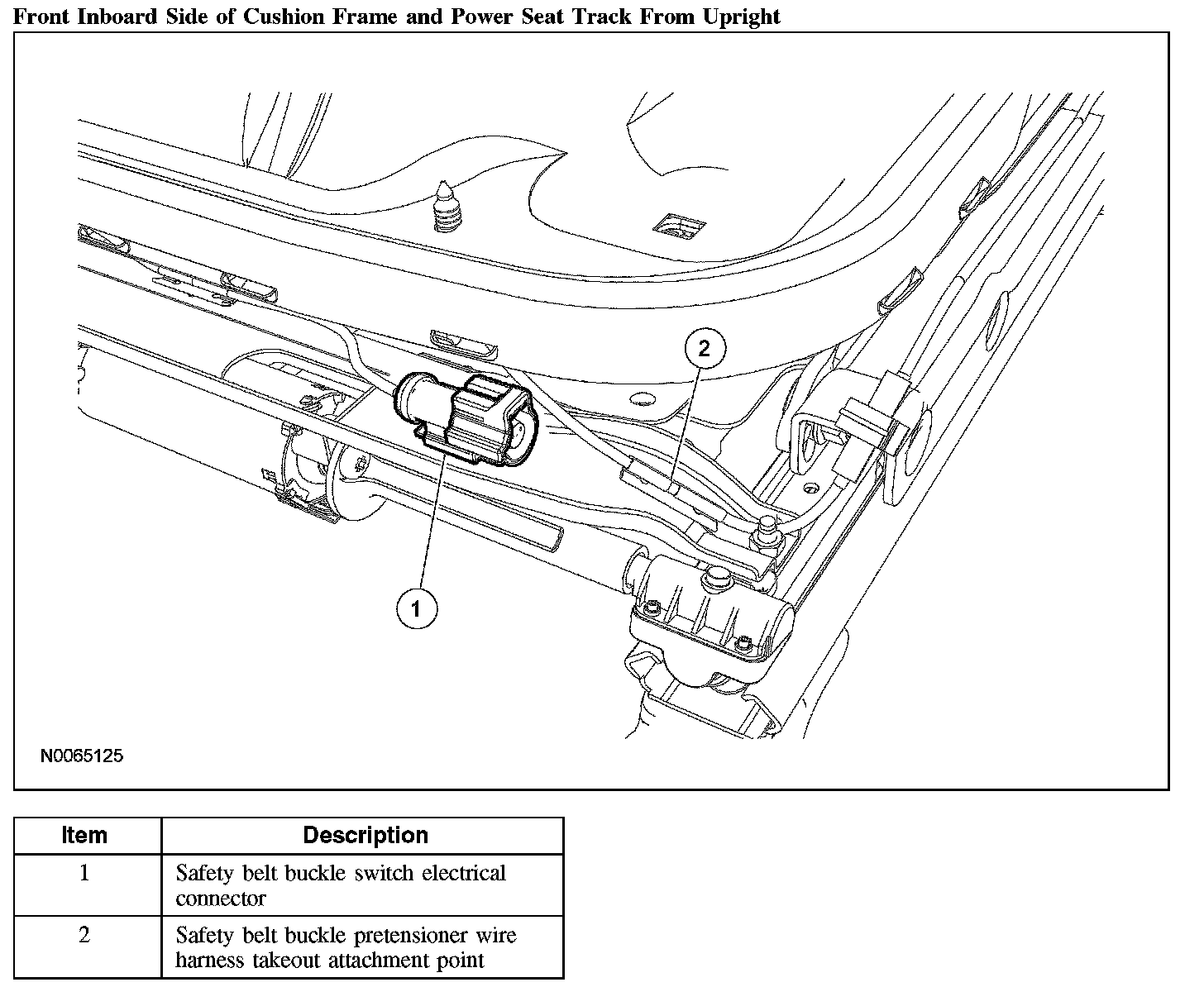

Front Inboard Side Of Cushion Frame And Power Seat Track From Upright:

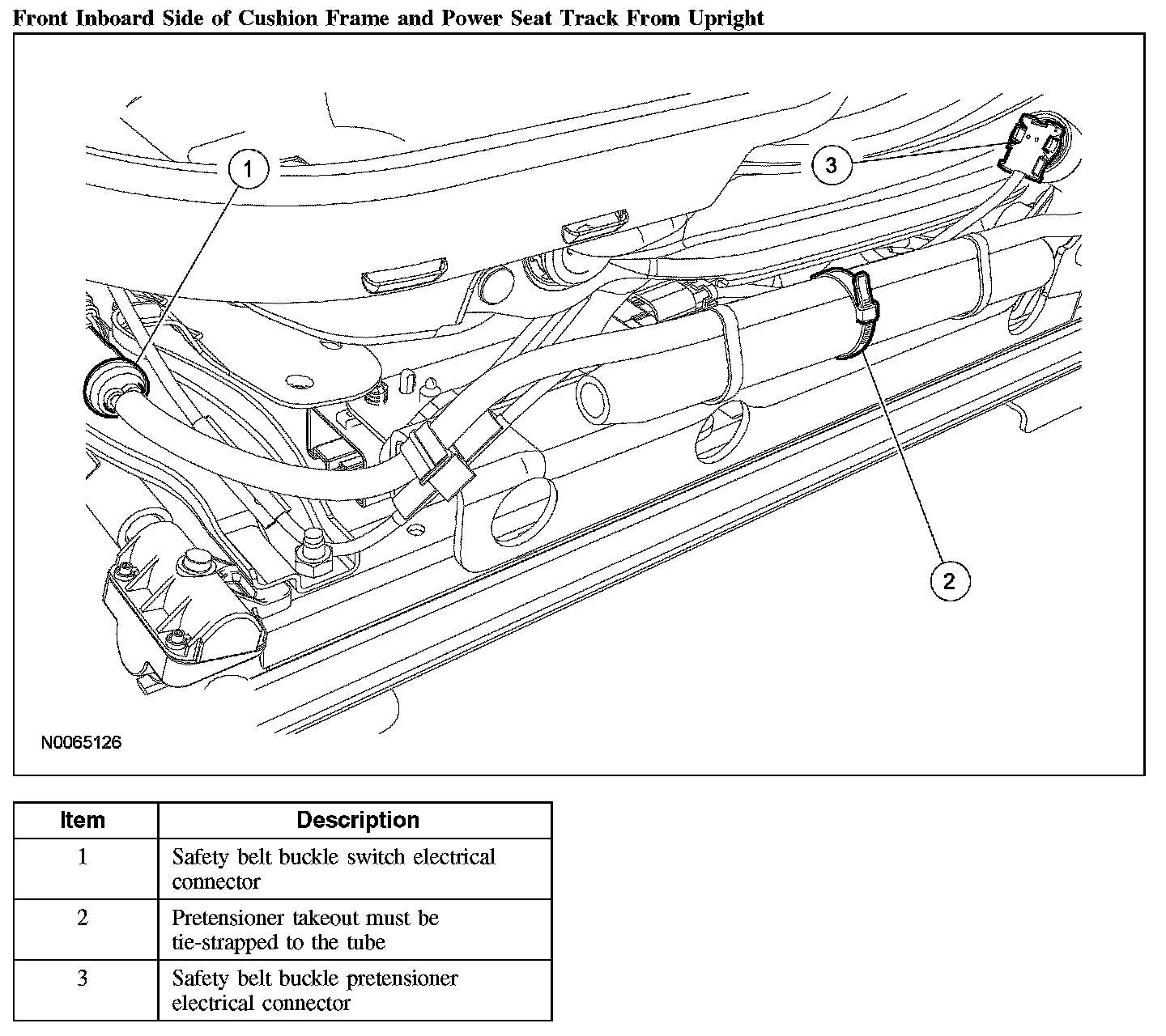

Front Inboard Side Of Cushion Frame And Power Seat Track From Upright:

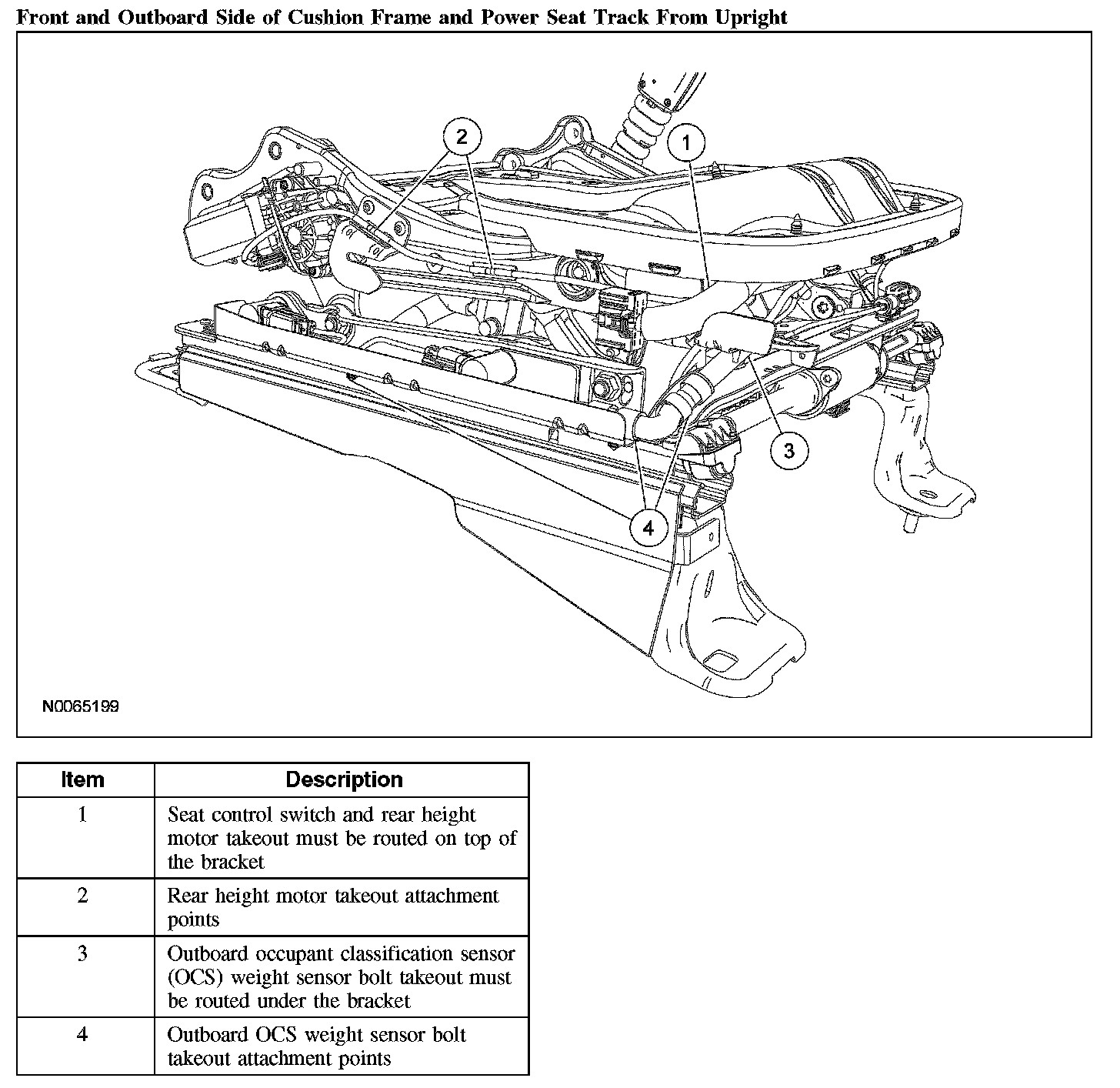

Front And Outboard Side Of Cushion Frame And Power Seat Track From Upright:

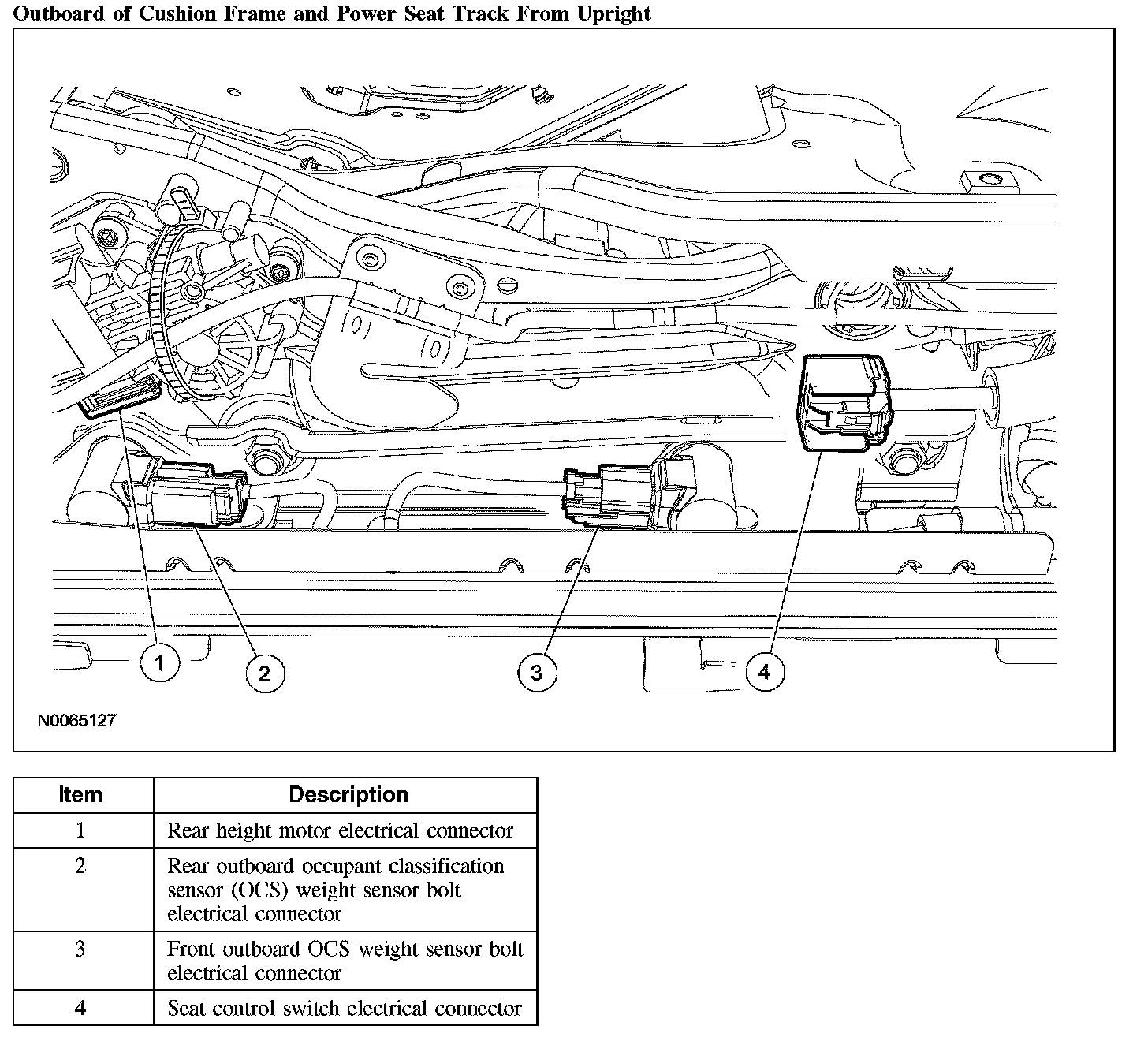

Outboard Of Cushion Frame And Power Seat Track From Upright:

1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
