General Specifications - Welding Specifications

SPECIFICATIONS


General Equipment
3 Phase Inverter Spot Welder 254-00002
Compuspot 700F Welder 190-50080
I4 Inverter Spot Welder 254-00014
Inverter Welder with MIG Welder 254-00015

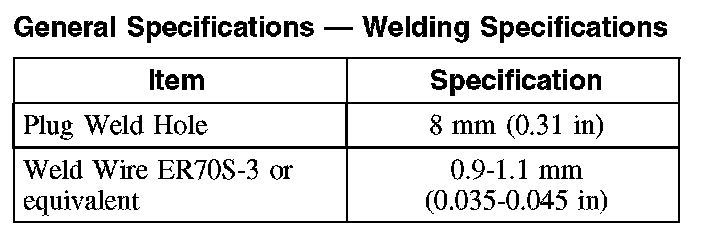

General Specifications - Welding Specifications:

Descriptions Of Ford Steel Families:

Ford Recommended Steel Repairability Matrix (Part 1):

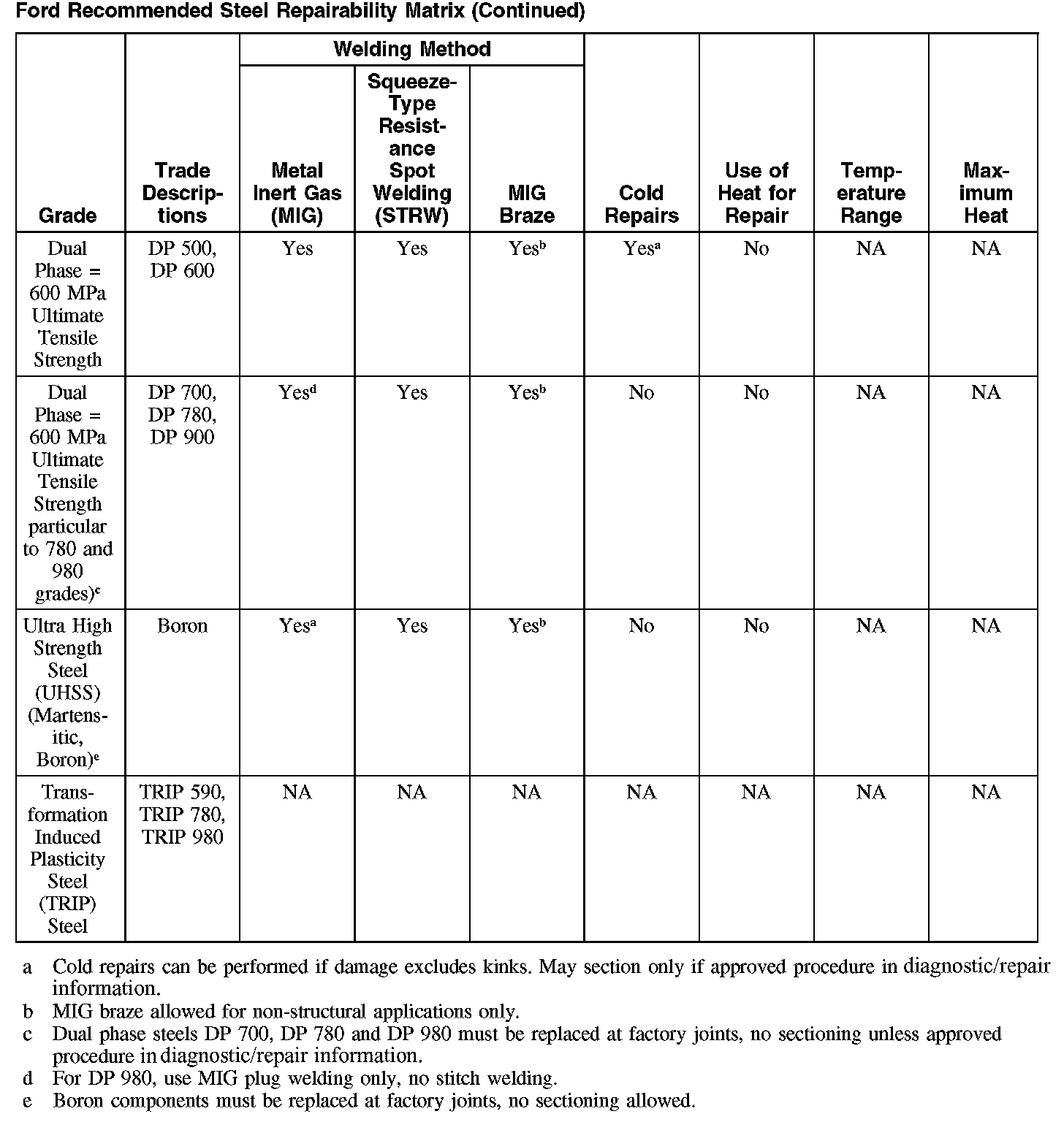

Ford Recommended Steel Repairability Matrix (Part 2):
