Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

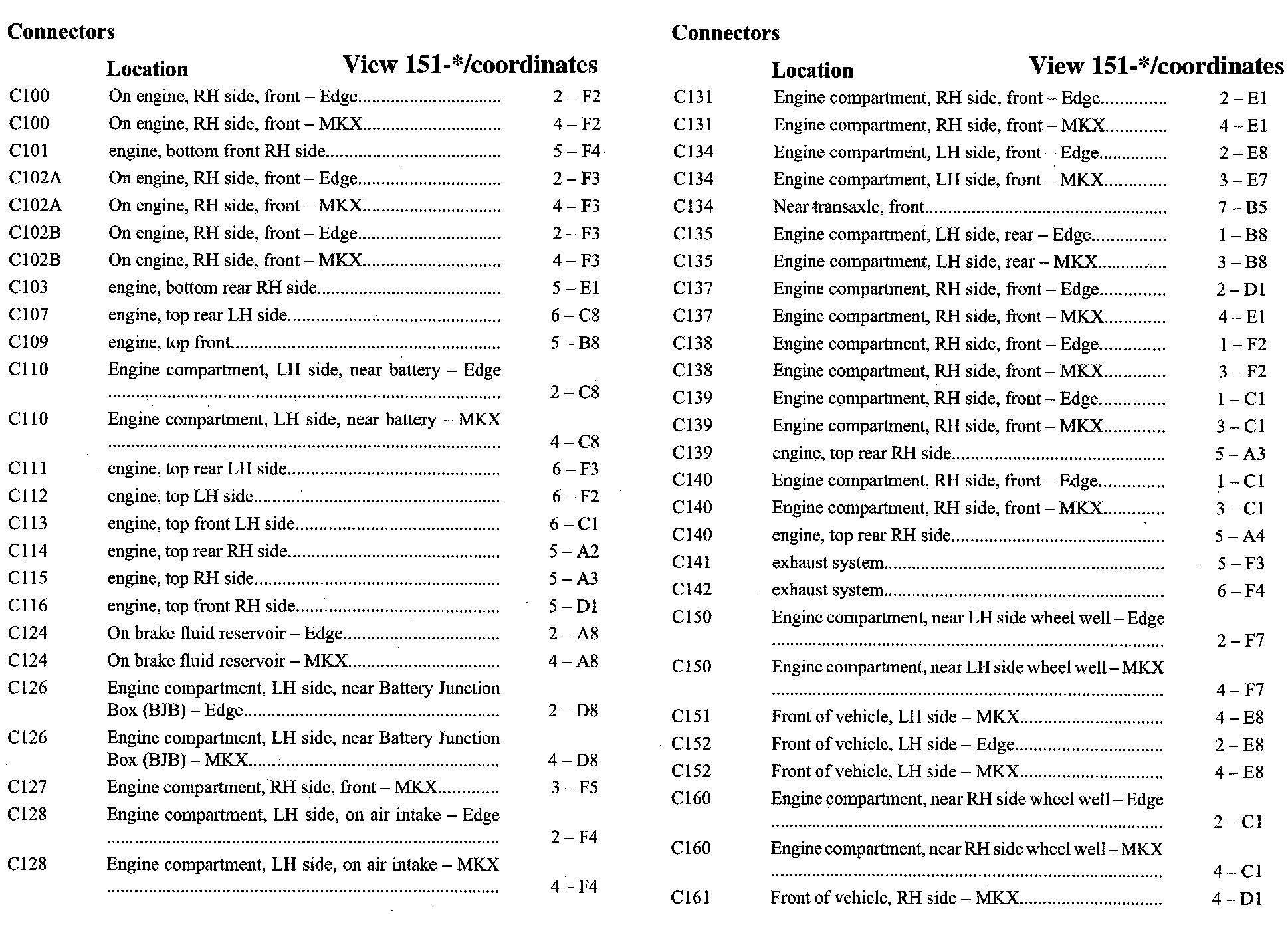

C100-C161:

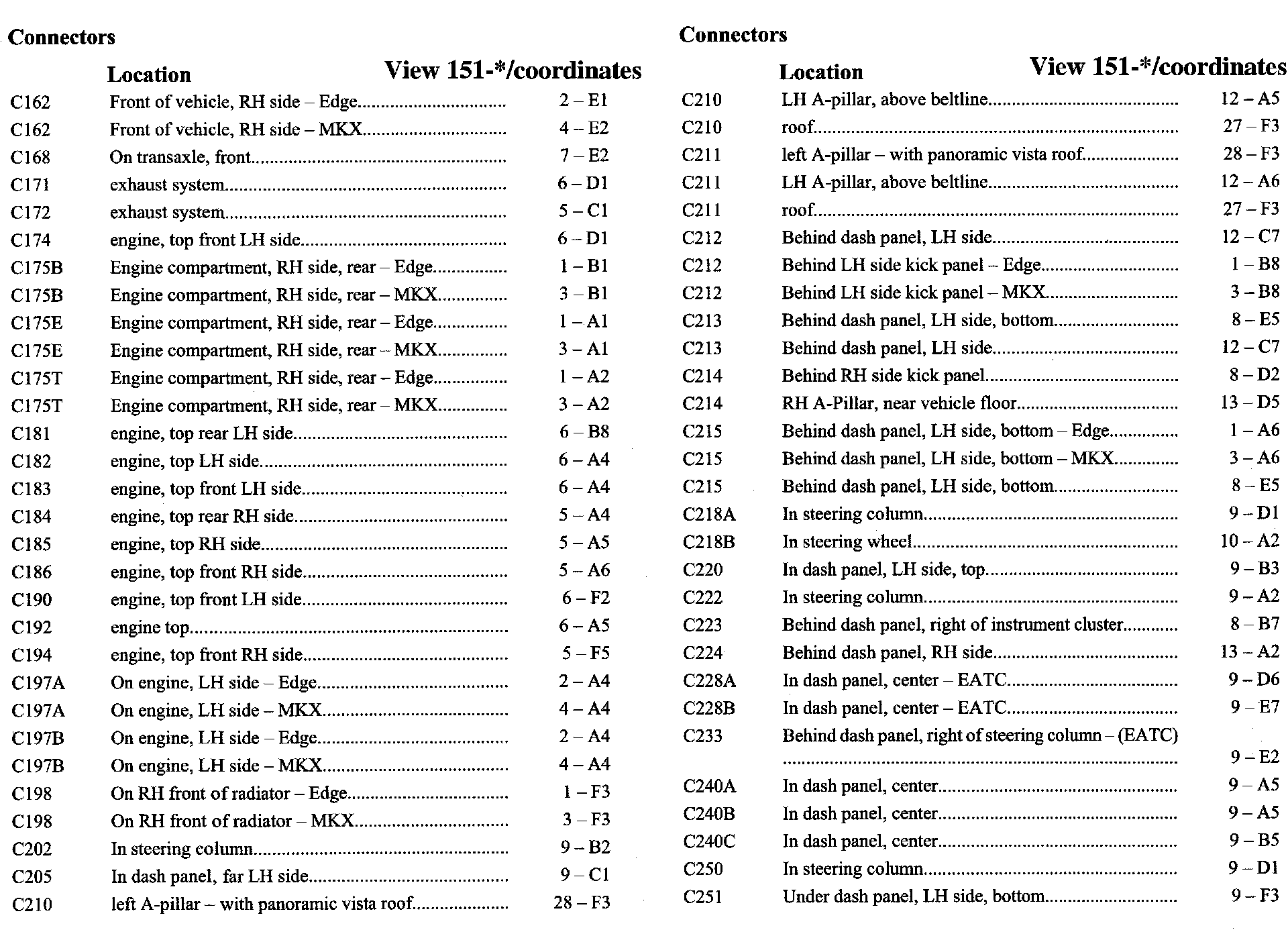

C162-C251:

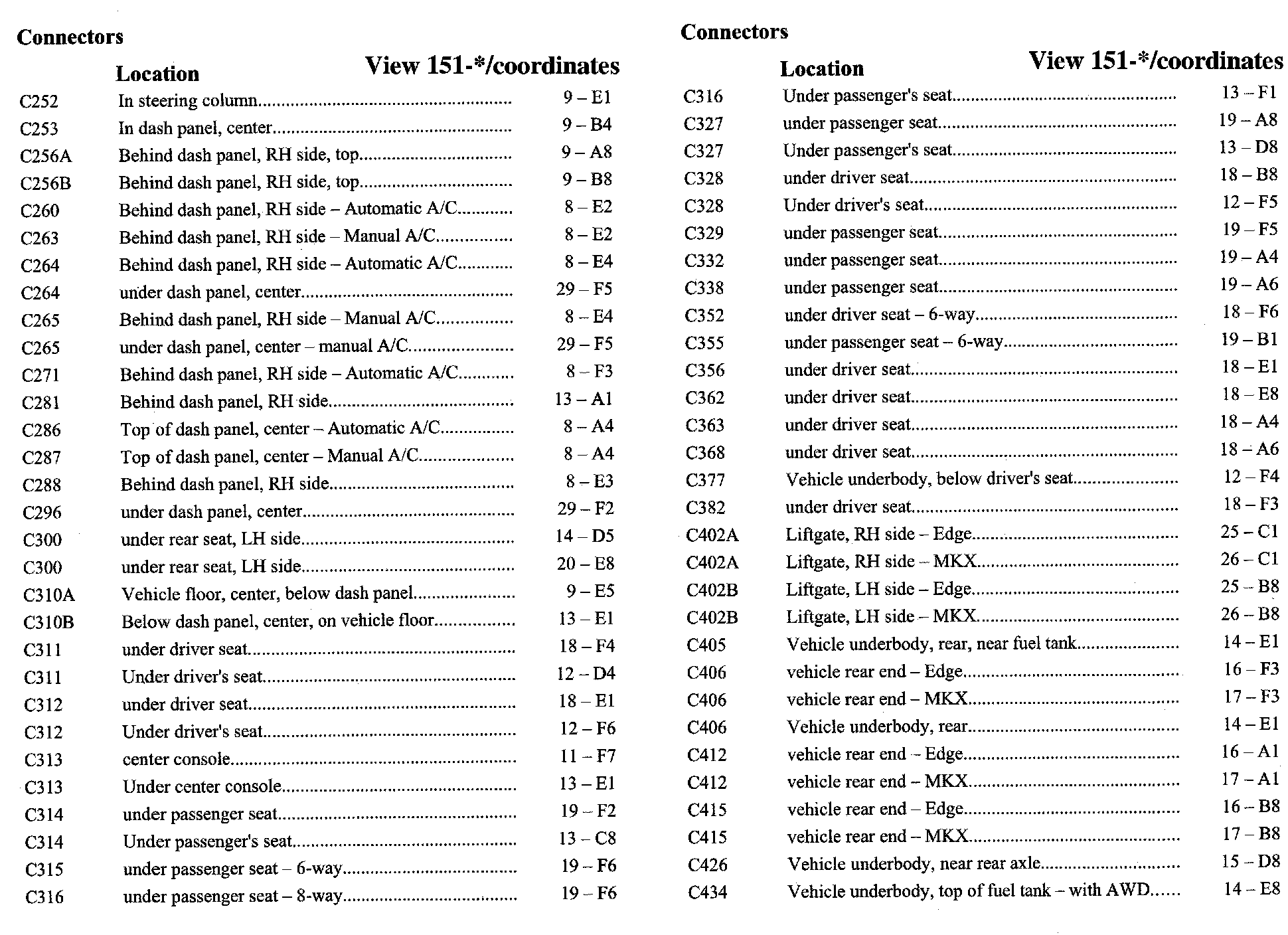

C252-C434:

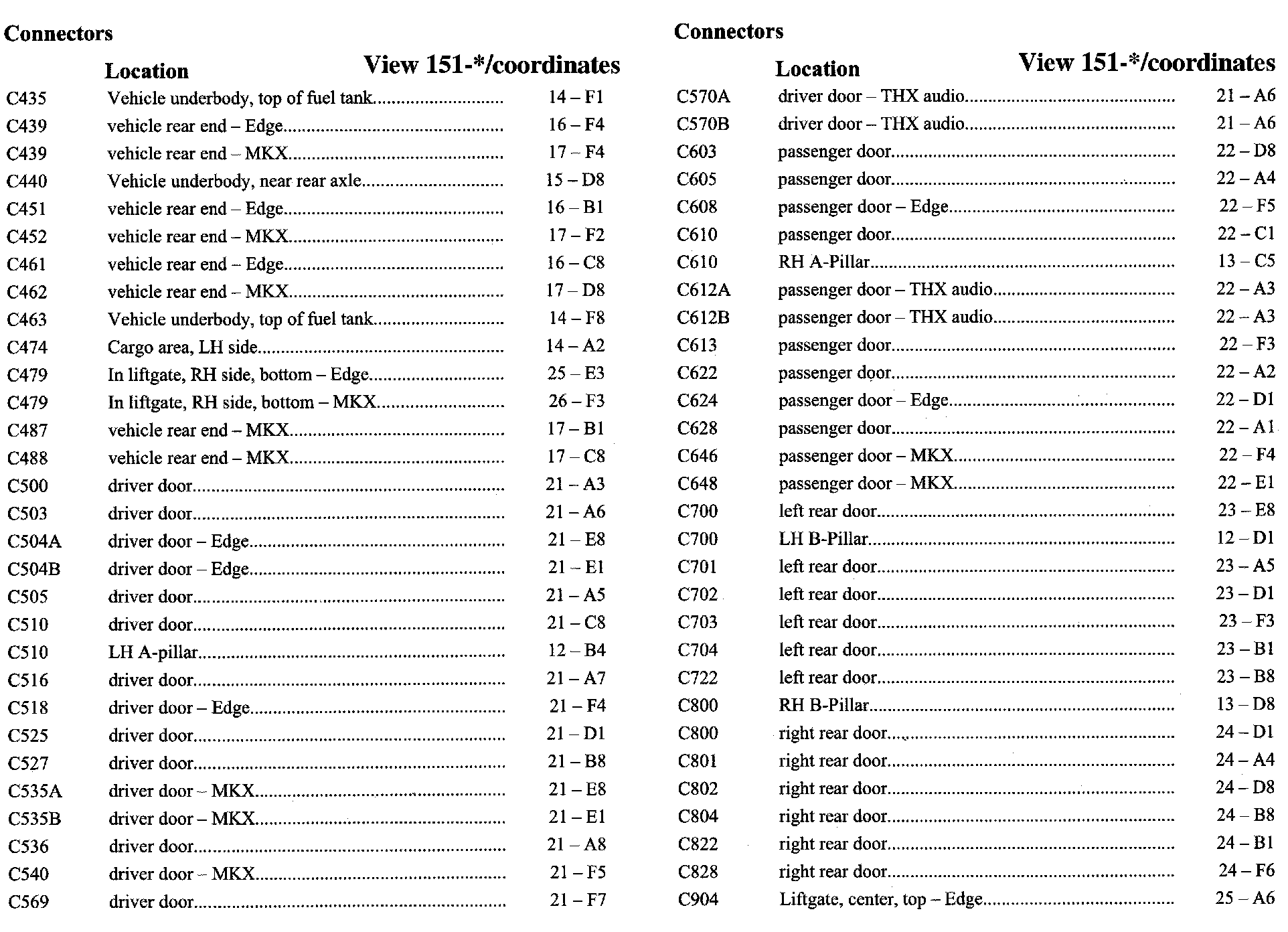

C435-C904:

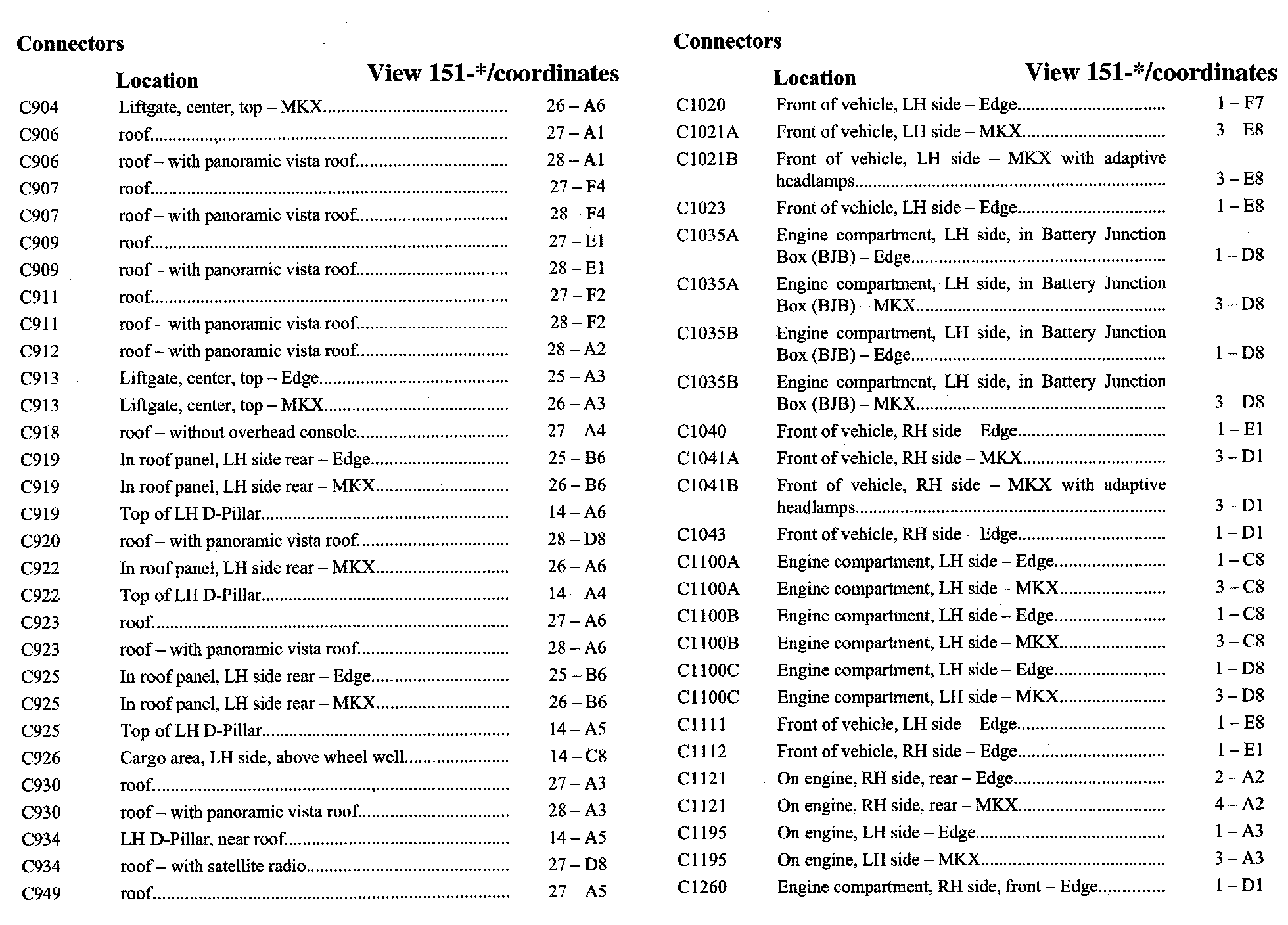

C904-C1260:

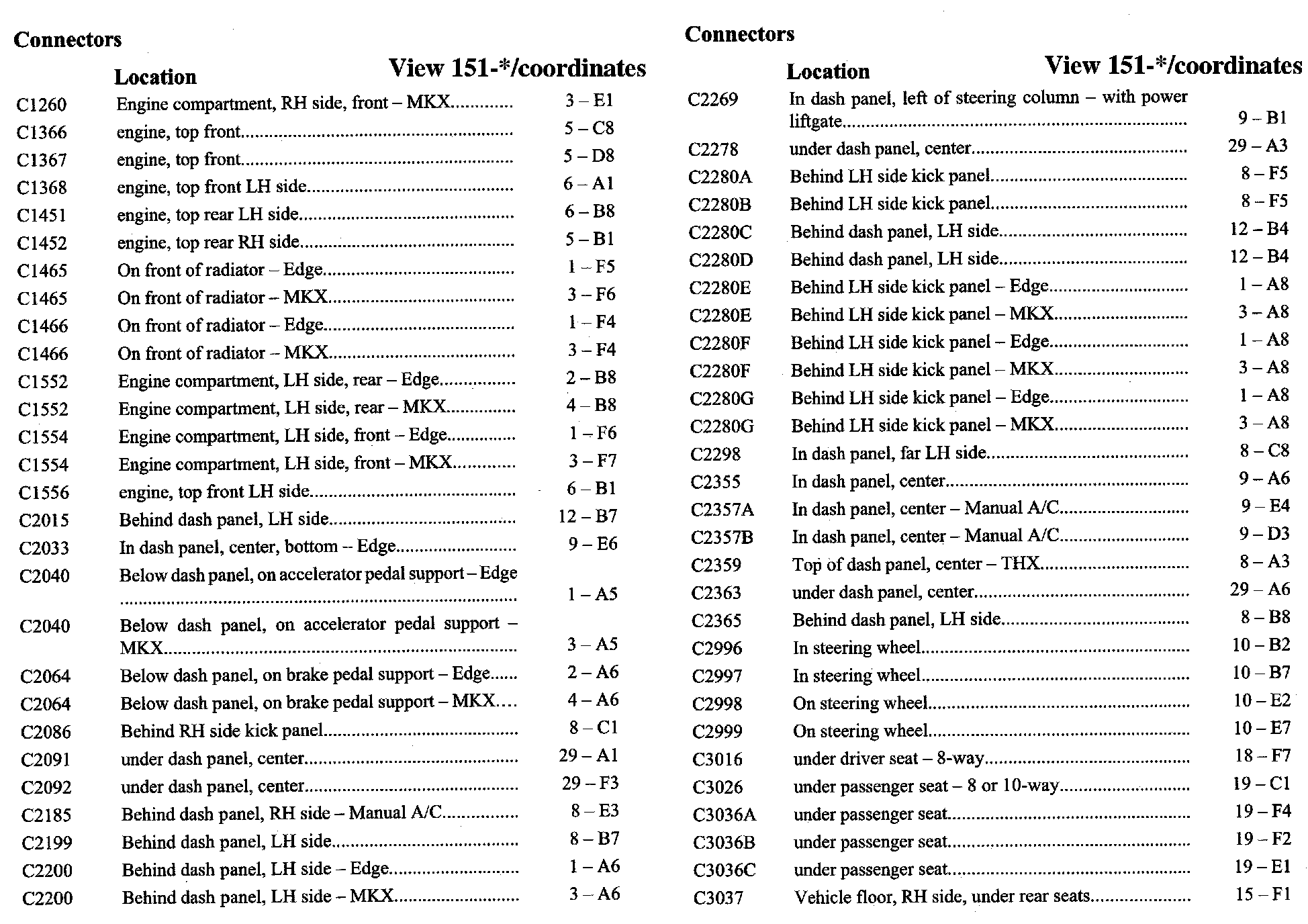

C1260-C3037:

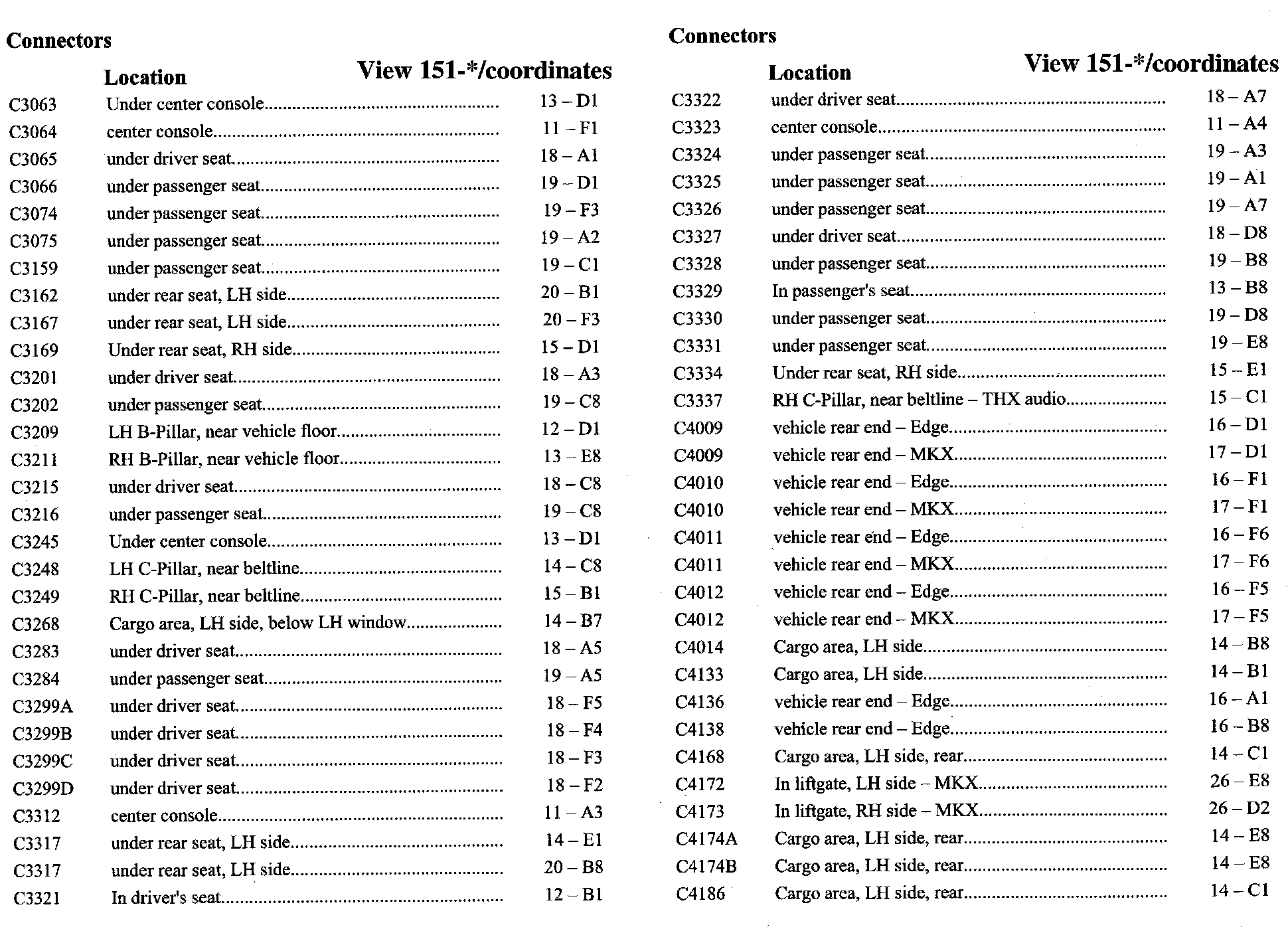

C3063-C4186:

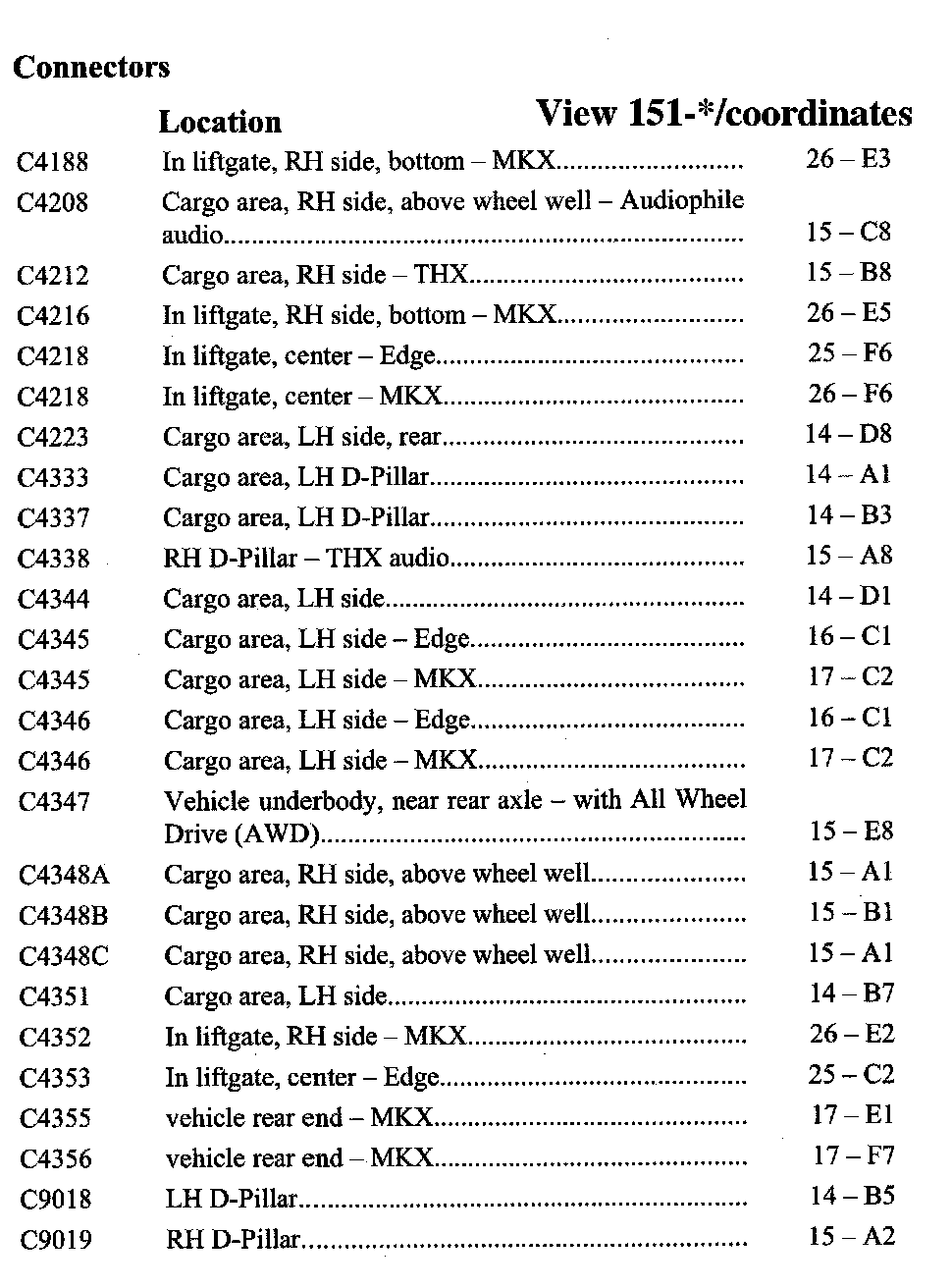

C4188-C9019:
