Radiator Cooling Fan: Service and Repair

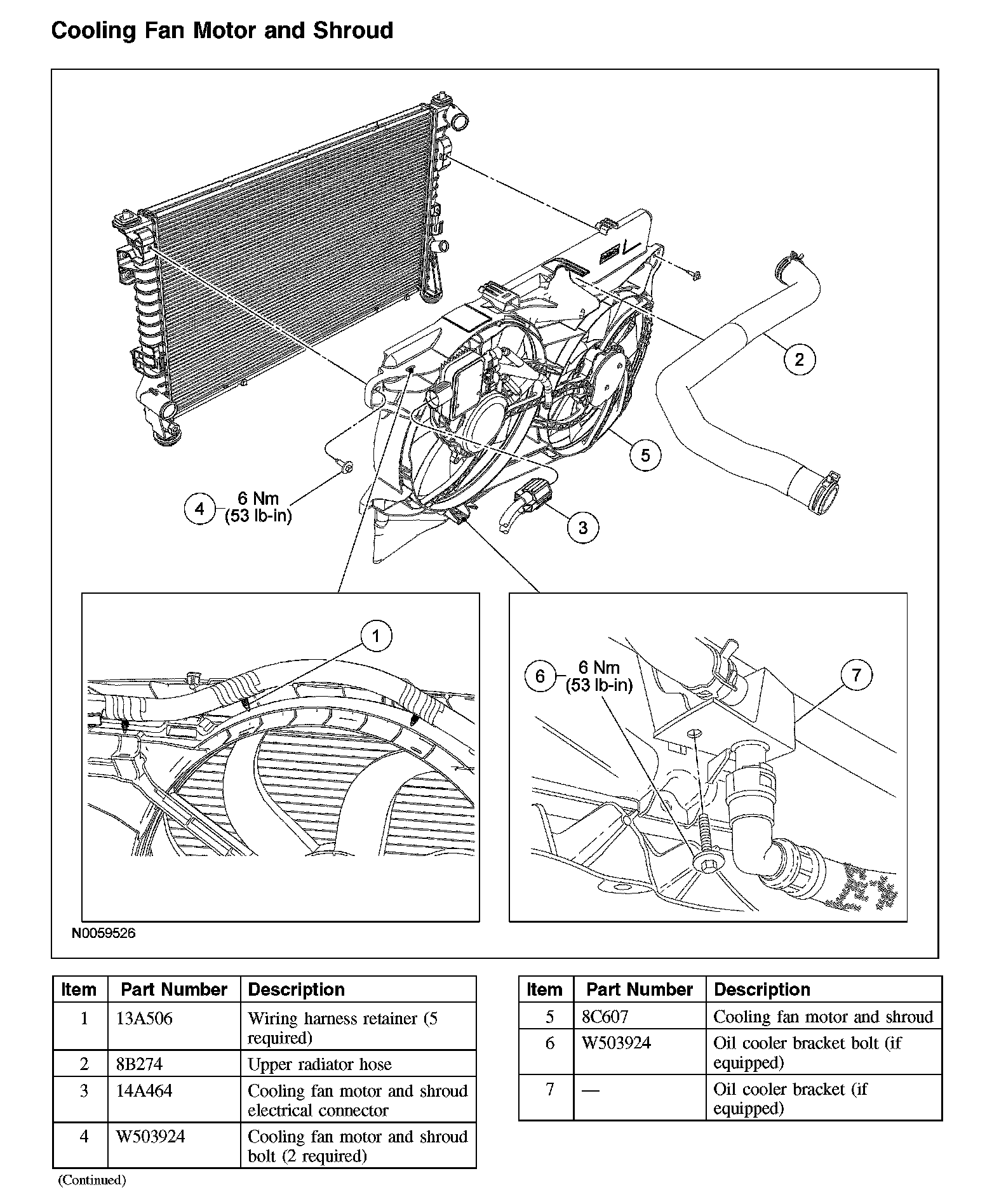

Cooling Fan Motor and ShroudCooling Fan Motor and Shroud:
Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the air cleaner assembly. For additional information, refer to Fuel Delivery and Air Induction.
3. If equipped, detach the 2 block heater wiring clips from the radiator support.

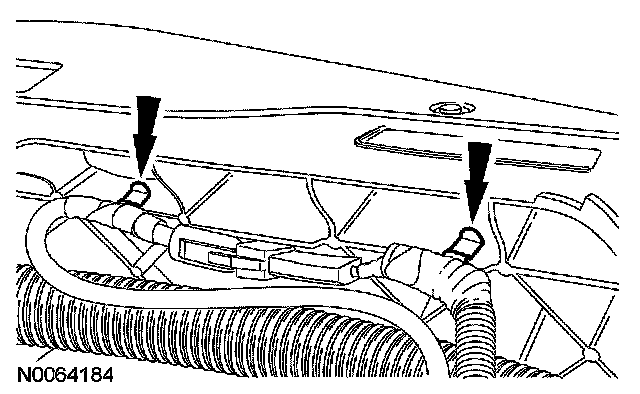

4. Detach the 5 wiring harness retainers and position the harness aside.
5. Position aside the upper radiator hose from the cooling fan motor and shroud.
6. Disconnect the cooling fan motor and shroud electrical connector.
7. If equipped, remove the bolt and position aside the oil cooler bracket.
^ To install, tighten to 6 Nm (53 inch lbs).
8. Remove the 2 bolts and the cooling fan motor and shroud.
^ To install, tighten to 6 Nm (53 inch lbs).
9. To install, reverse the removal procedure.
