Torca(R) Clamp

Torca(R) Clamp
1. Remove the nut from the Torca(R) clamp.

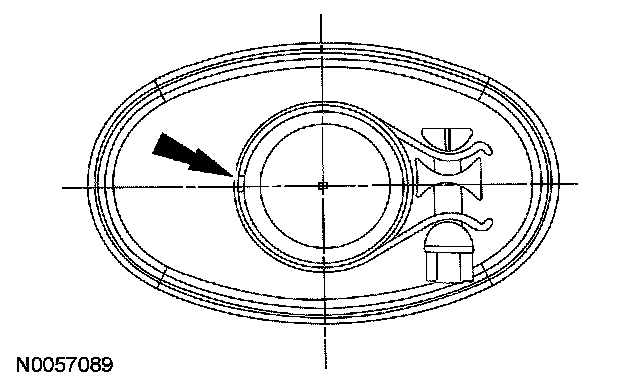

2. Grind the spot weld from the Torca(R) clamp and remove the clamp.
3. Clean the uneven surface area and position a new Torca(R) clamp.

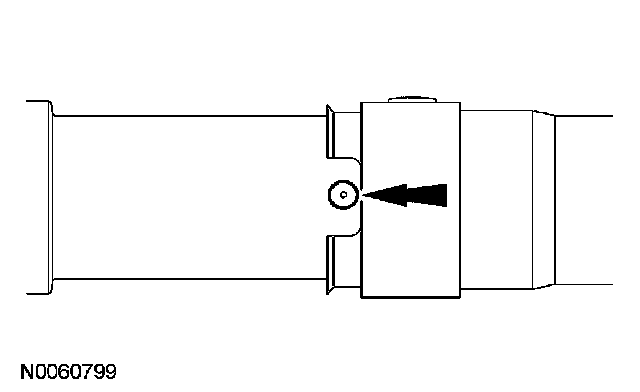

4. Make sure the button is fully seated inside the notch.





5. NOTE: Do not tighten the clamp until the exhaust system has been aligned.

Tighten the new Torca(R) clamp.
^ Tighten to 47 Nm (35 ft. lbs).
