Instrument Cluster Finish Panel
INSTRUMENT PANEL - EXPLODED VIEWEdge Instrument Panel (Part 1):
Edge Instrument Panel (Part 2):
Edge Instrument Panel (Part 1):
Edge Instrument Panel (Part 2):
MKX Instrument Panel (Part 1):
MKX Instrument Panel (Part 2):
MKX Instrument Panel (Part 1):
MKX Instrument Panel (Part 2):
INSTRUMENT CLUSTER FINISH PANEL
Removal and Installation
Edge only
1. Remove the upper instrument panel center finish panel.
- Using a suitable tool, gently pry out the upper center finish panel to disengage the clips.
- Remove the upper center finish panel.
- Disconnect the electrical connectors.
All vehicles
2. Lower the steering column to the full down position.
3. Remove the steering column opening cover.

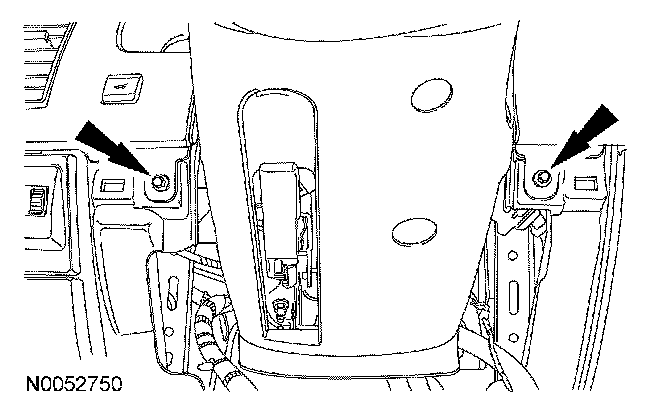

- Remove the 2 steering column opening cover screws.
- Disengage the steering column opening cover from the retainers.
- Disconnect the electrical connector and tube, if equipped.
4. Remove the 2 cluster finish panel screws.
5. Disengage the cluster finish panel from the retaining clips and remove the panel.
- Disconnect the electrical connectors, if equipped.
6. To install, reverse the removal procedure.
