Marker Lamp: Service and Repair

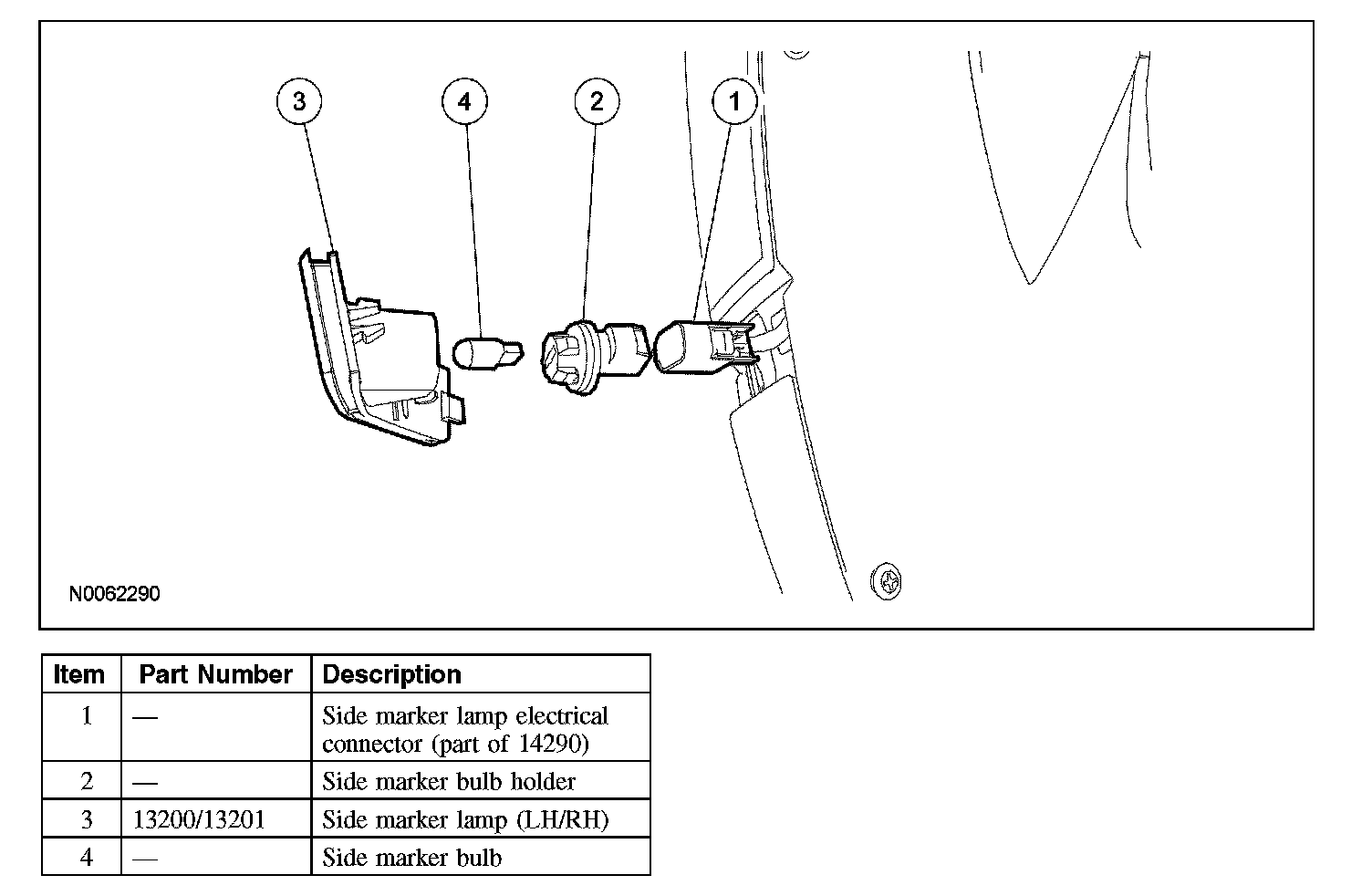

SIDE MARKER LAMP - FRONT







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.







2. Remove the 2 screws and position the fender splash shield aside.
3. Release the tabs and remove the side marker lamp.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
