Automatic Transmission/Transaxle: Application and ID

Identification Tags

Identification Tag Location

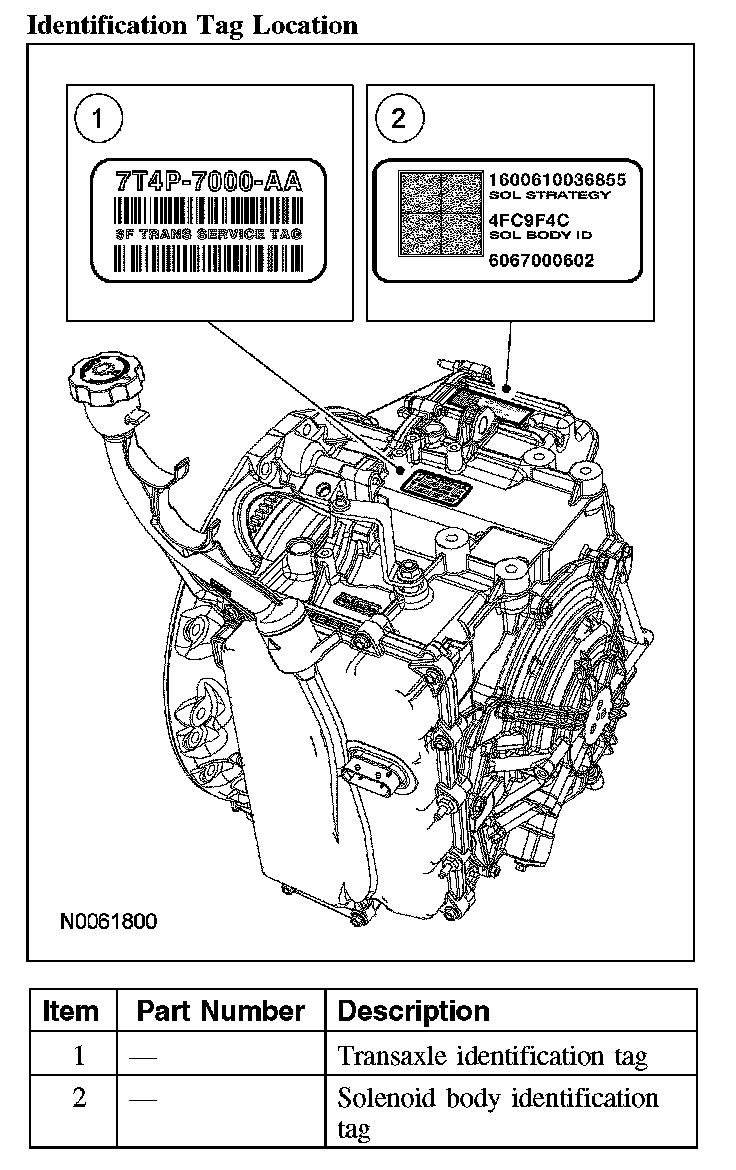

Identification Tag Location:





Transaxle Identification Tag

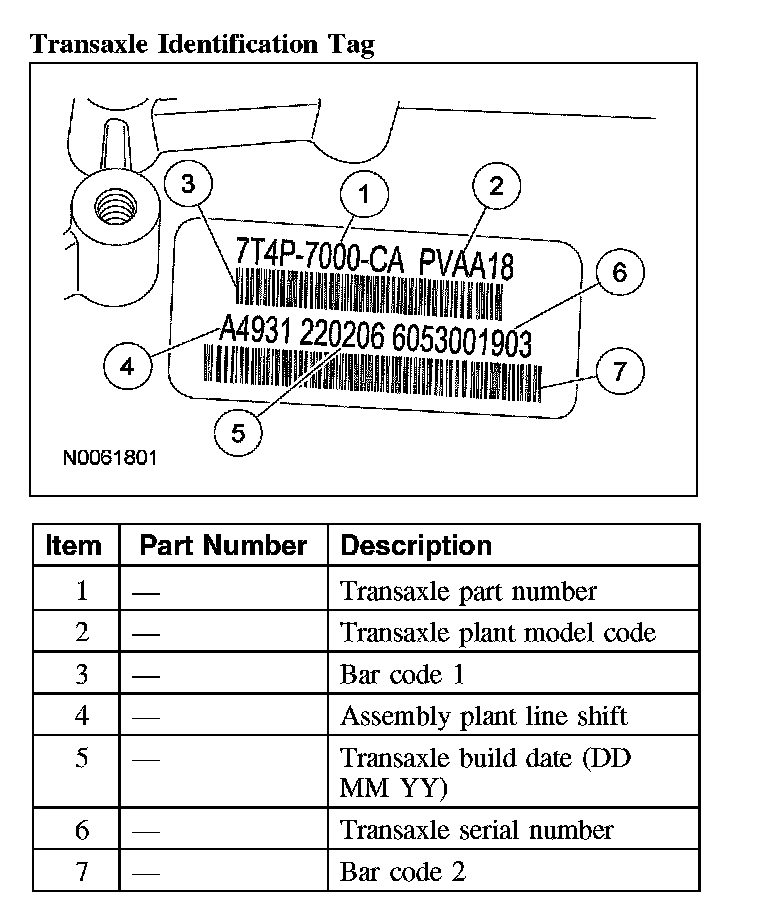

Transaxle Identification Tag:





When servicing the transaxle, use the identification tag located on top of the transaxle case.

Original Solenoid Body Tag

Transaxle Identification Tag:





Replacement Solenoid Body Tag

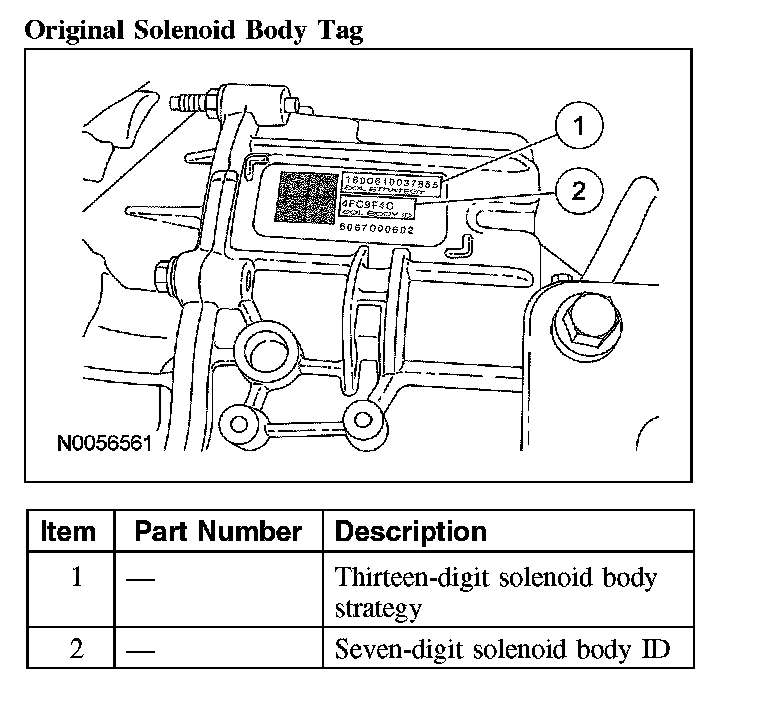

Original Solenoid Body Tag:





Solenoid Body Identification Tag

Solenoid Body Identification Tag:





When servicing the solenoid body, use the identification tag located on top of the transaxle case.
