Test D: The Wipers Stay on Continuously - Rear Window

PINPOINT TEST D: THE WIPERS STAY ON CONTINUOUSLY - REAR WINDOW

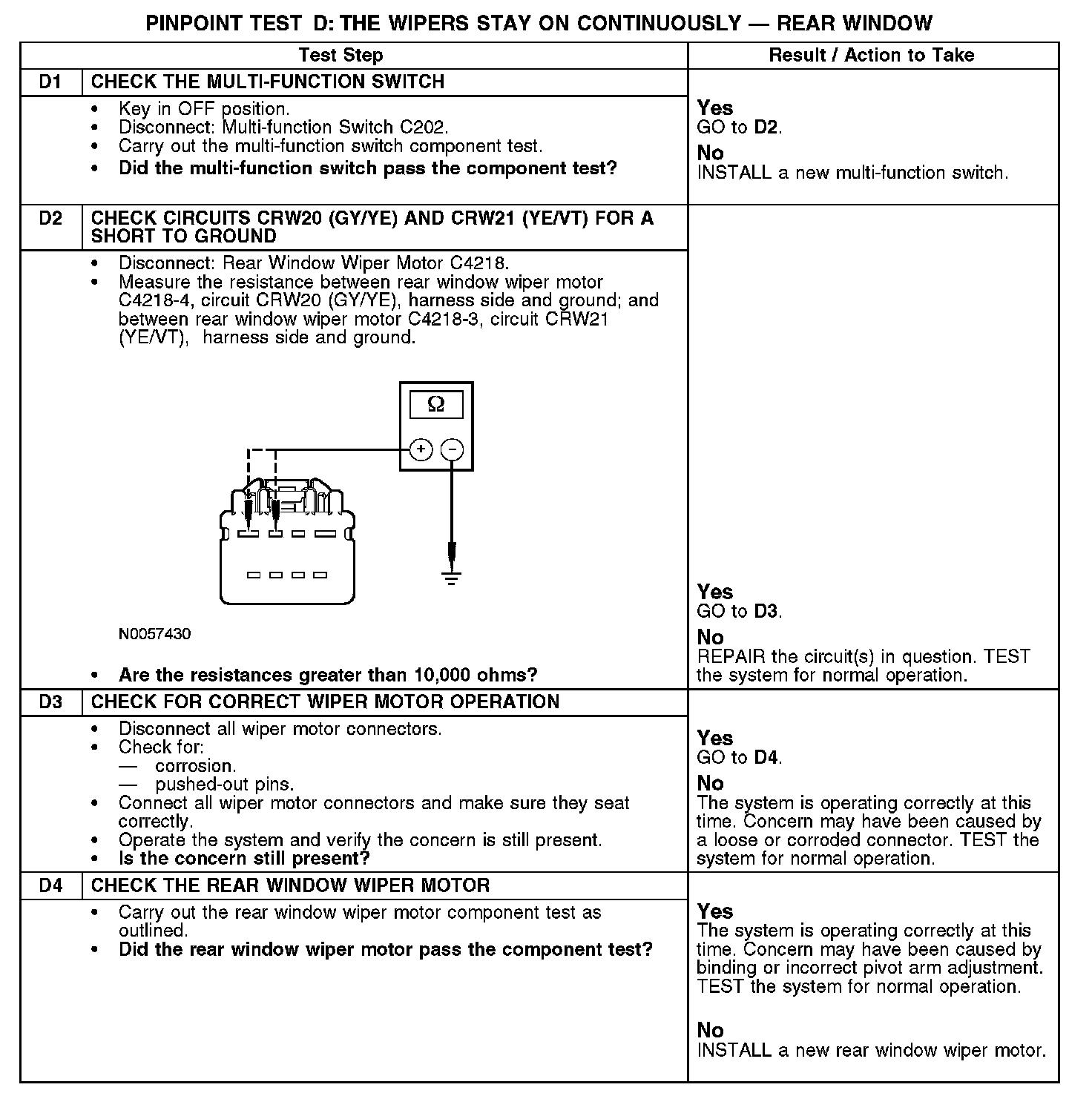

D1-D4:

Normal Operation
Under normal operation, the rear window wiper motor receives open and ground inputs from the multi-function switch through circuits CRW20 (GY/YE) and CRW21 (YE/VT) to activate the wiper to the appropriate speeds.

Possible Causes
- Short to ground in circuit CRW20 (GY/YE) or CRW21 (YE/VT)
- Rear window wiper motor
- Multi-function switch
