Instrument Cluster Finish Panel

INSTRUMENT CLUSTER FINISH PANEL

Exploded View

Part 1:

Part 2:

Removal and Installation
1. If equipped with tilt column, position the steering wheel in the full DOWN position.
2. Pull the headlamp knob to the ON position.

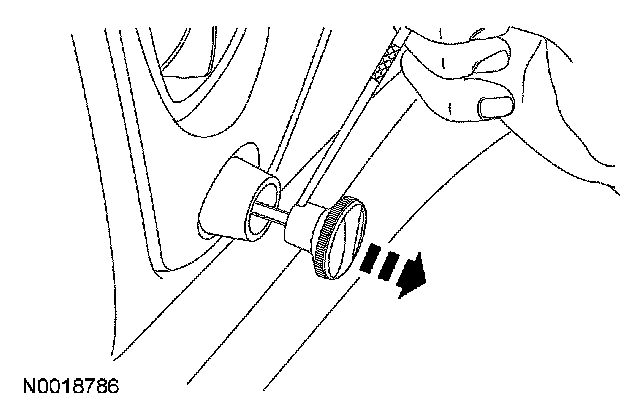

3. Insert a small screwdriver onto the clip and pull the knob outward.







4. Remove the headlamp switch bezel by turning it counterclockwise.







5. Remove the audio unit.

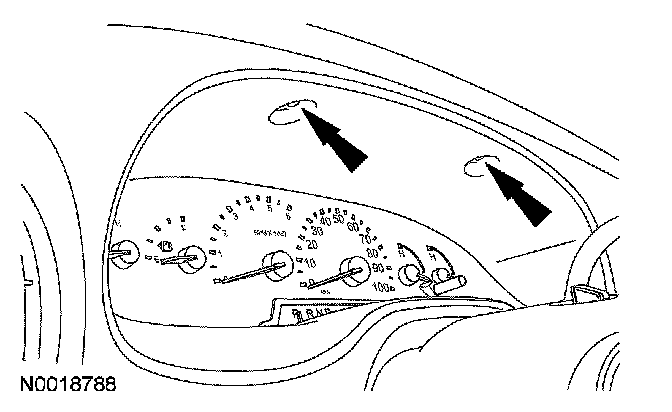

6. Remove the 2 instrument cluster finish panel screws.







7. CAUTION: To avoid damage to the instrument cluster finish panel, pull the panel forward just enough to access electrical connectors before completely removing the panel.

Remove the instrument cluster finish panel.
- Disconnect the electrical connectors.







8. To install, reverse the removal procedure.
