Splices

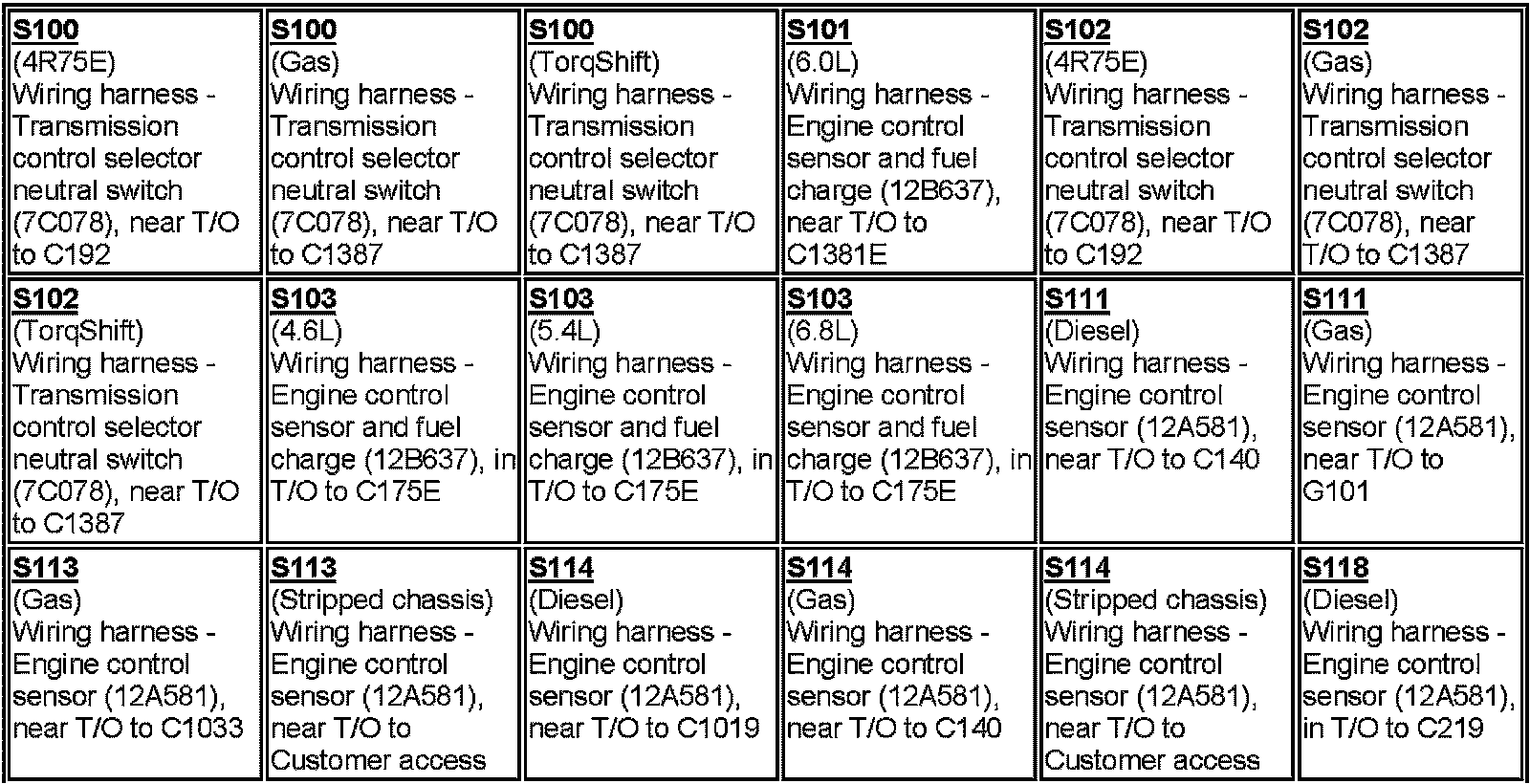

S100-S118:

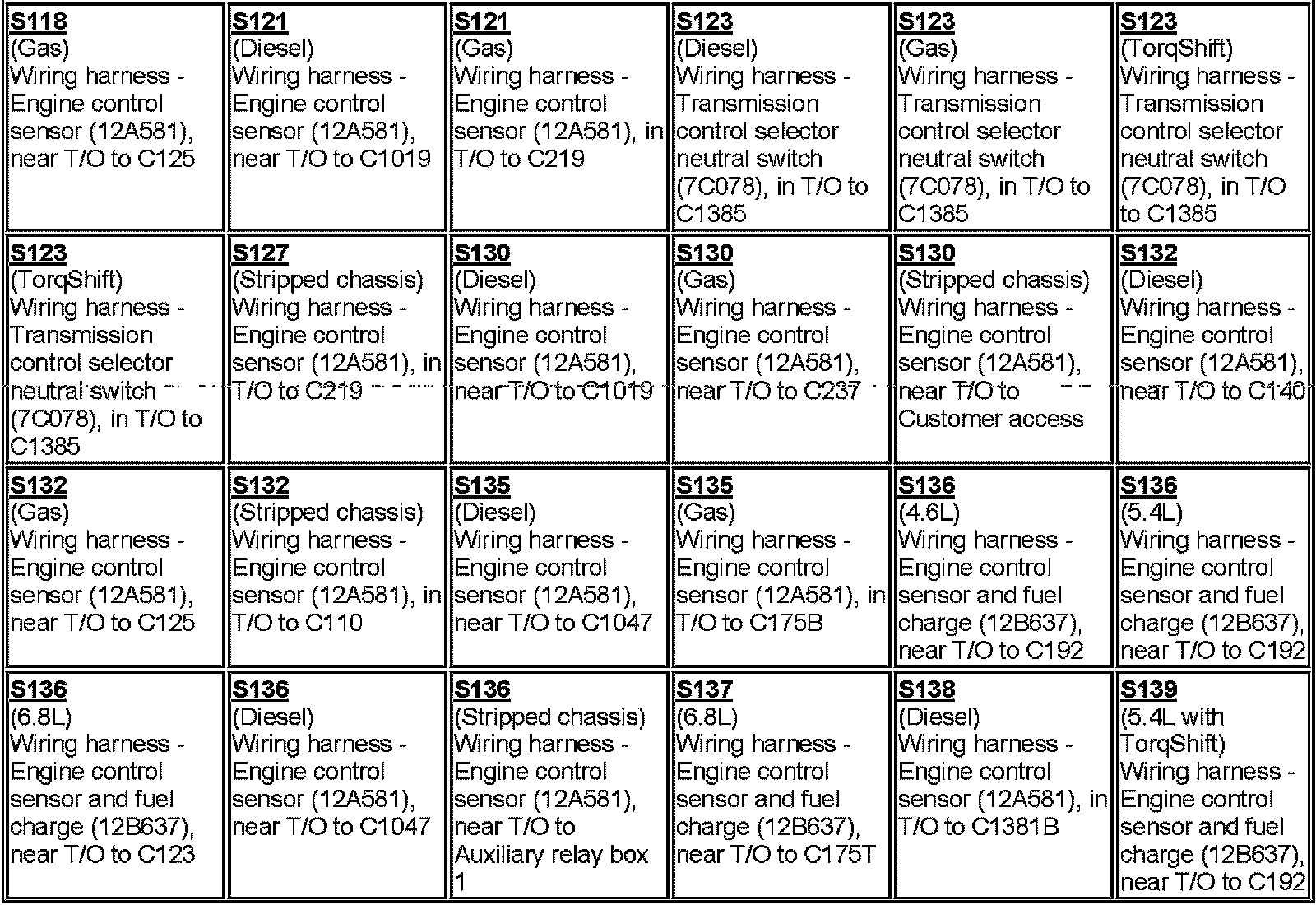

S118-S139:

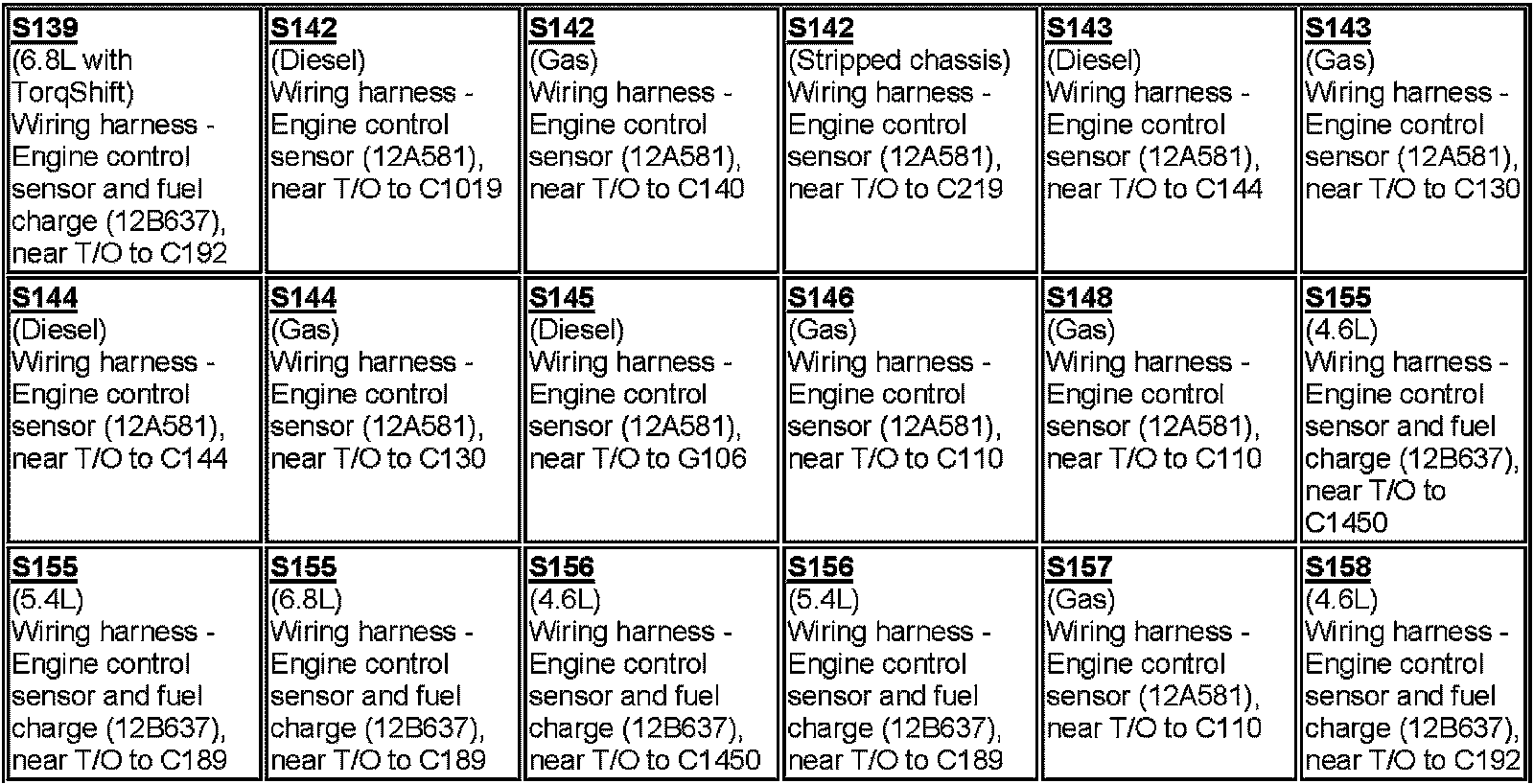

S139-S158:

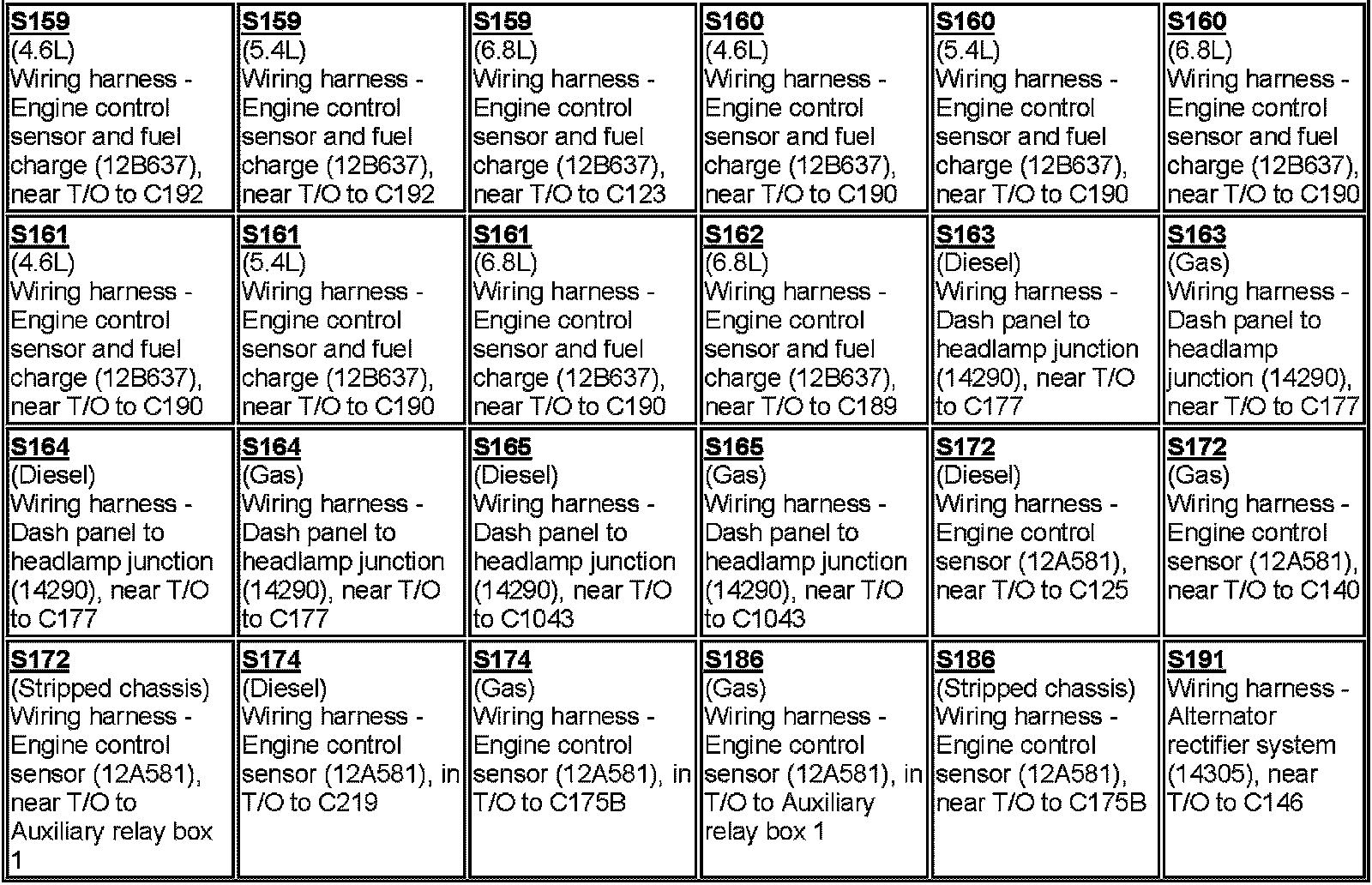

S159-S191:

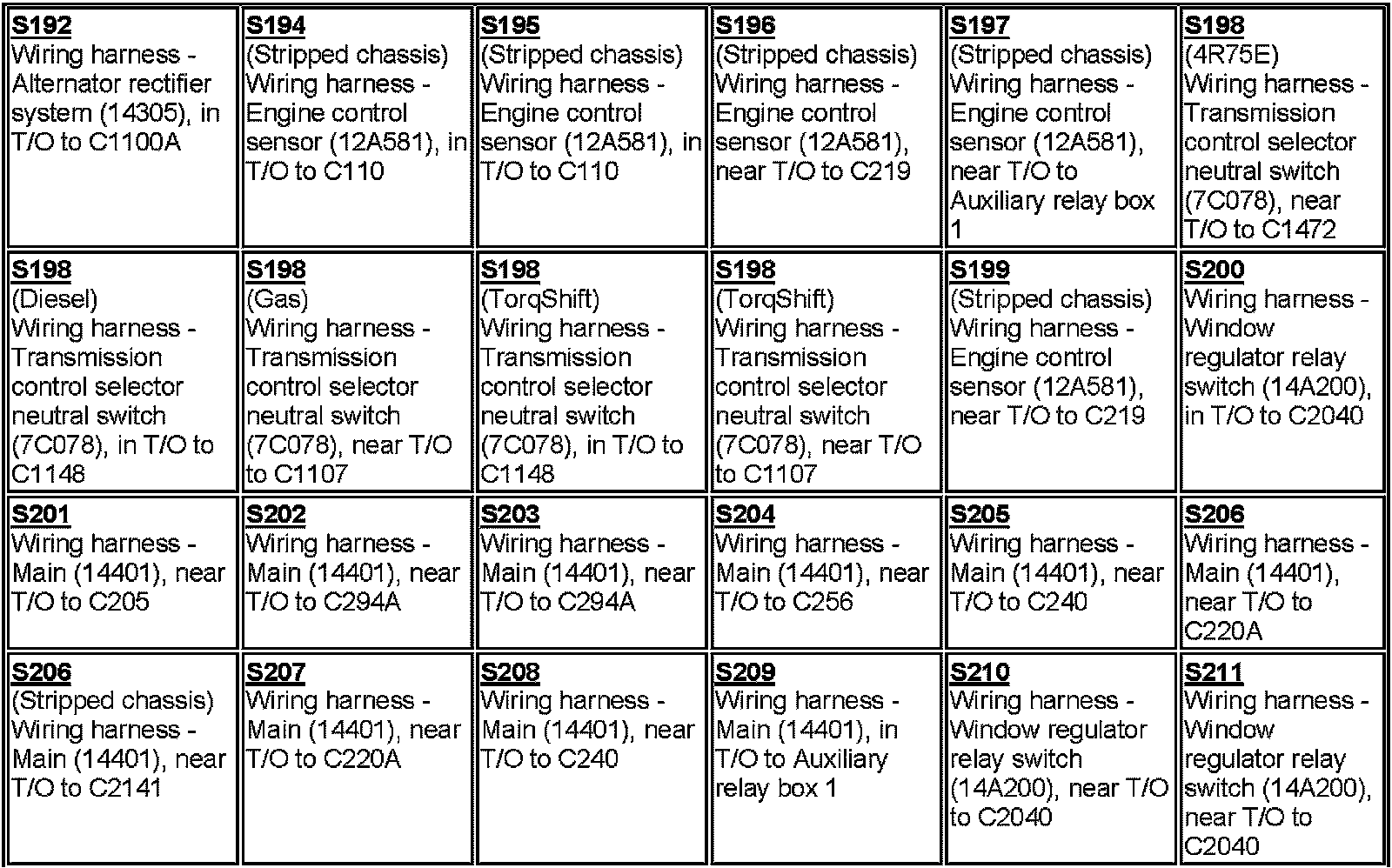

S192-S211:

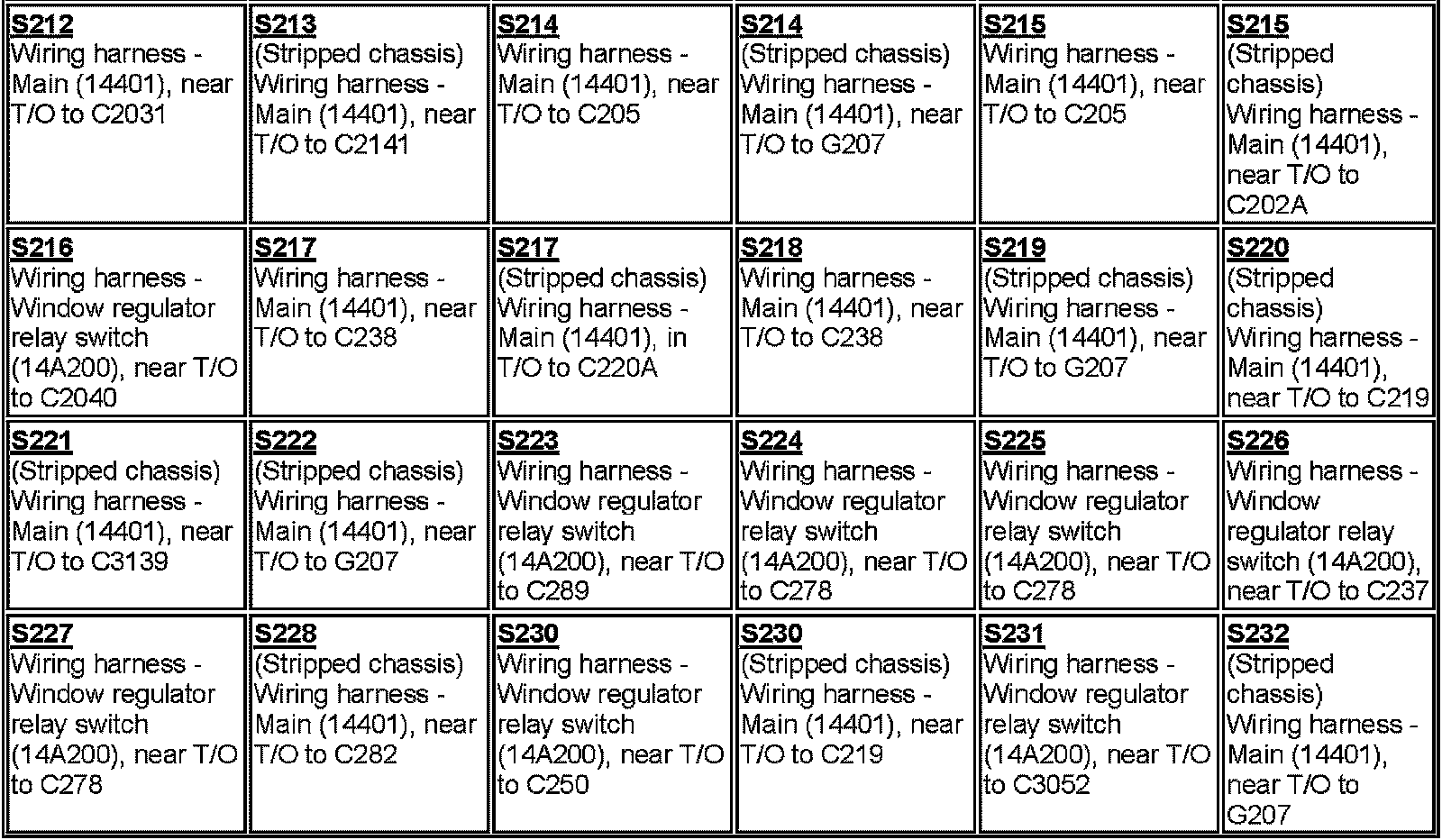

S212-S232:
S233-S256:

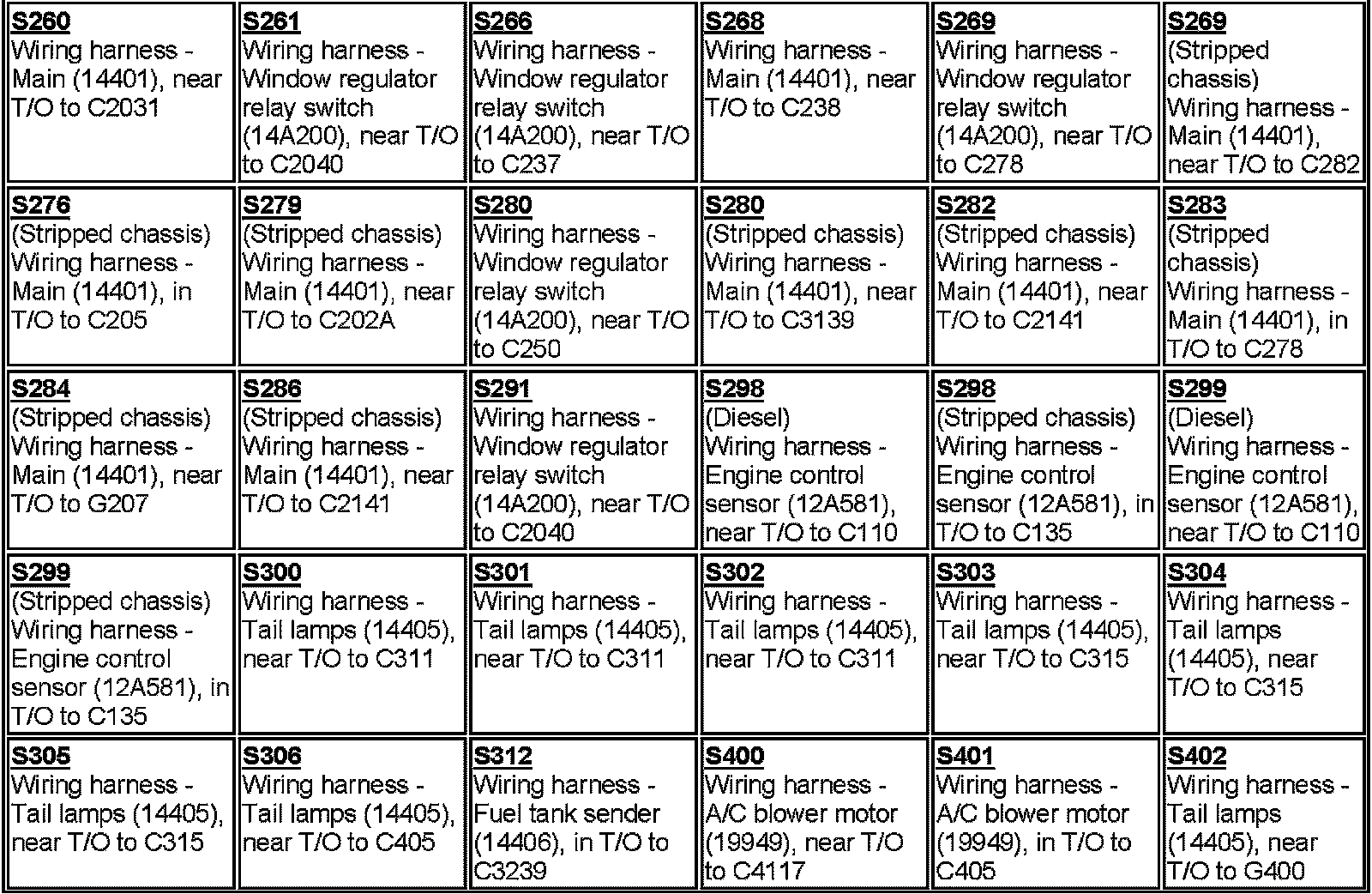

S260-S402:

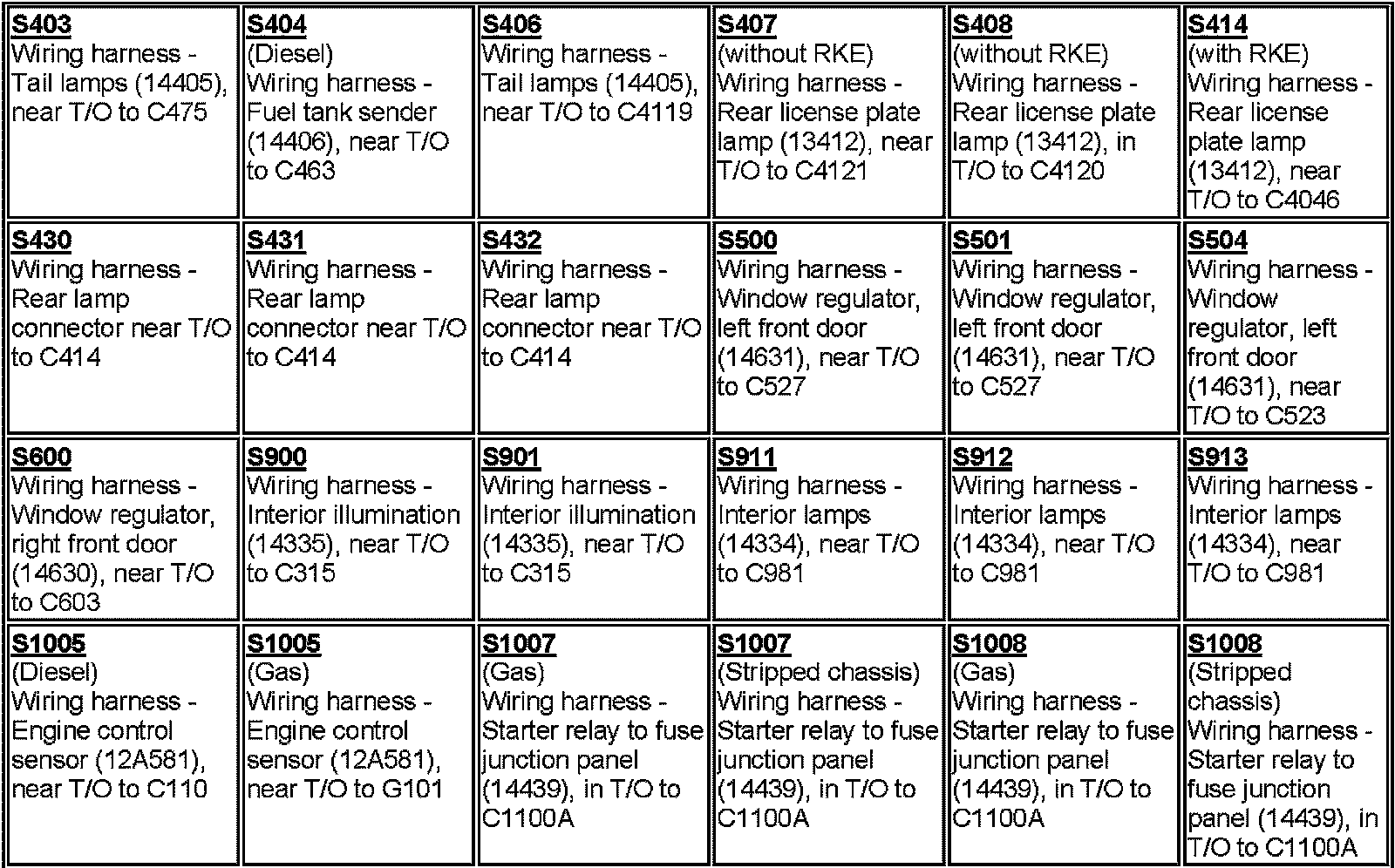

S403-S1008:
S1019-S1032:
S1033-S1062:

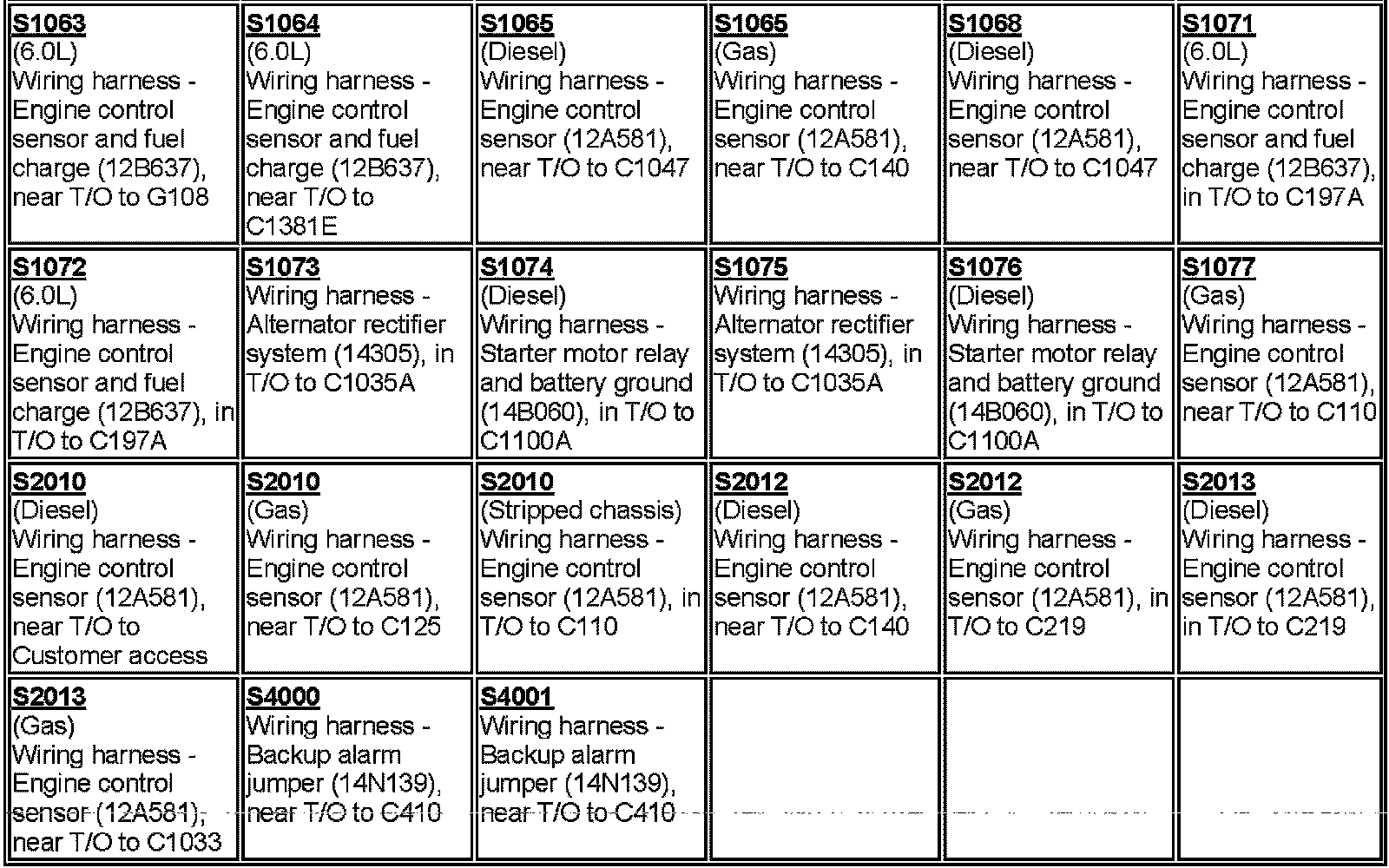

S1063-S4001:
