Antenna Cable - AM/FM

ANTENNA CABLE - AM/FM

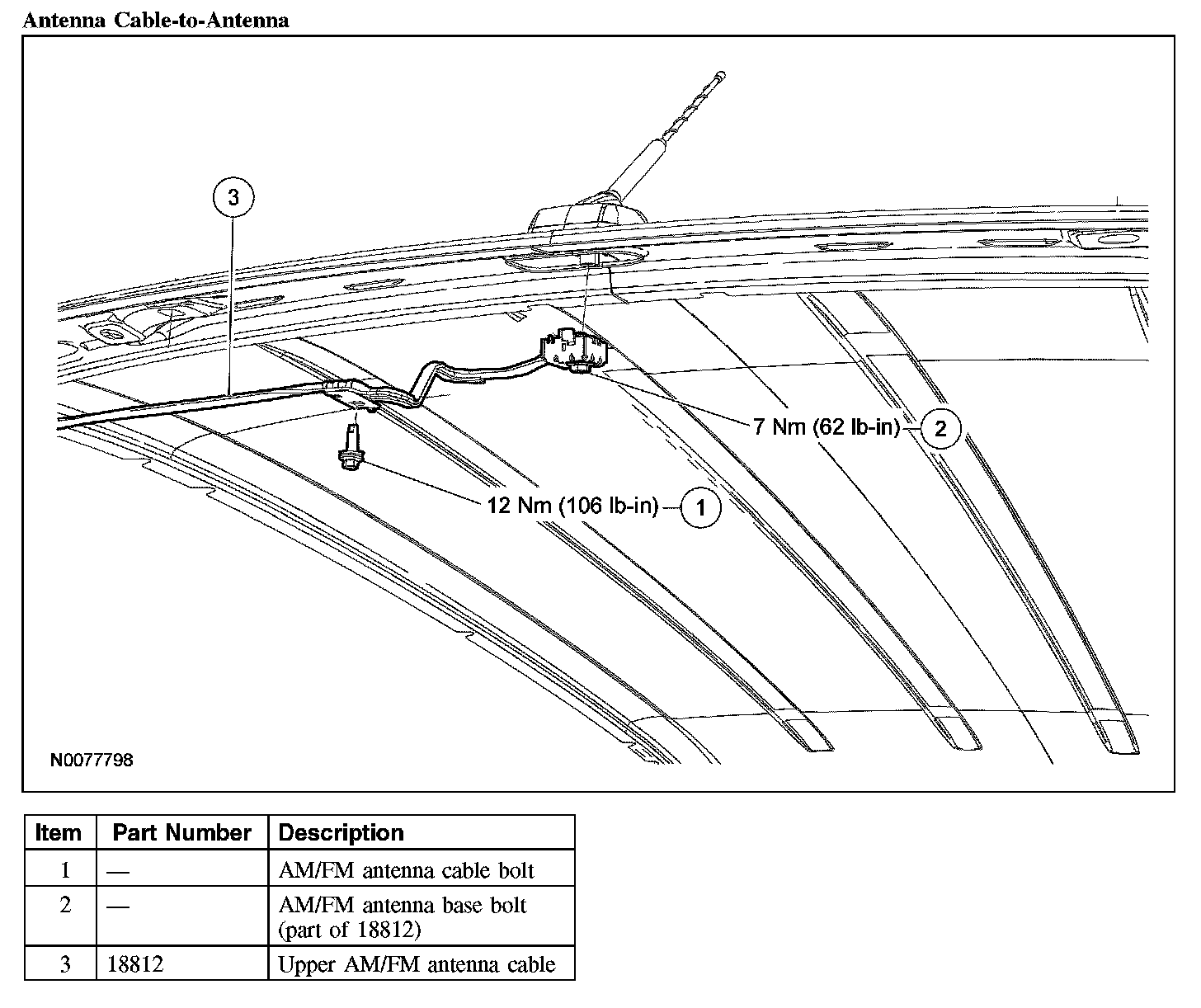

Antenna Cable-to-Antenna:

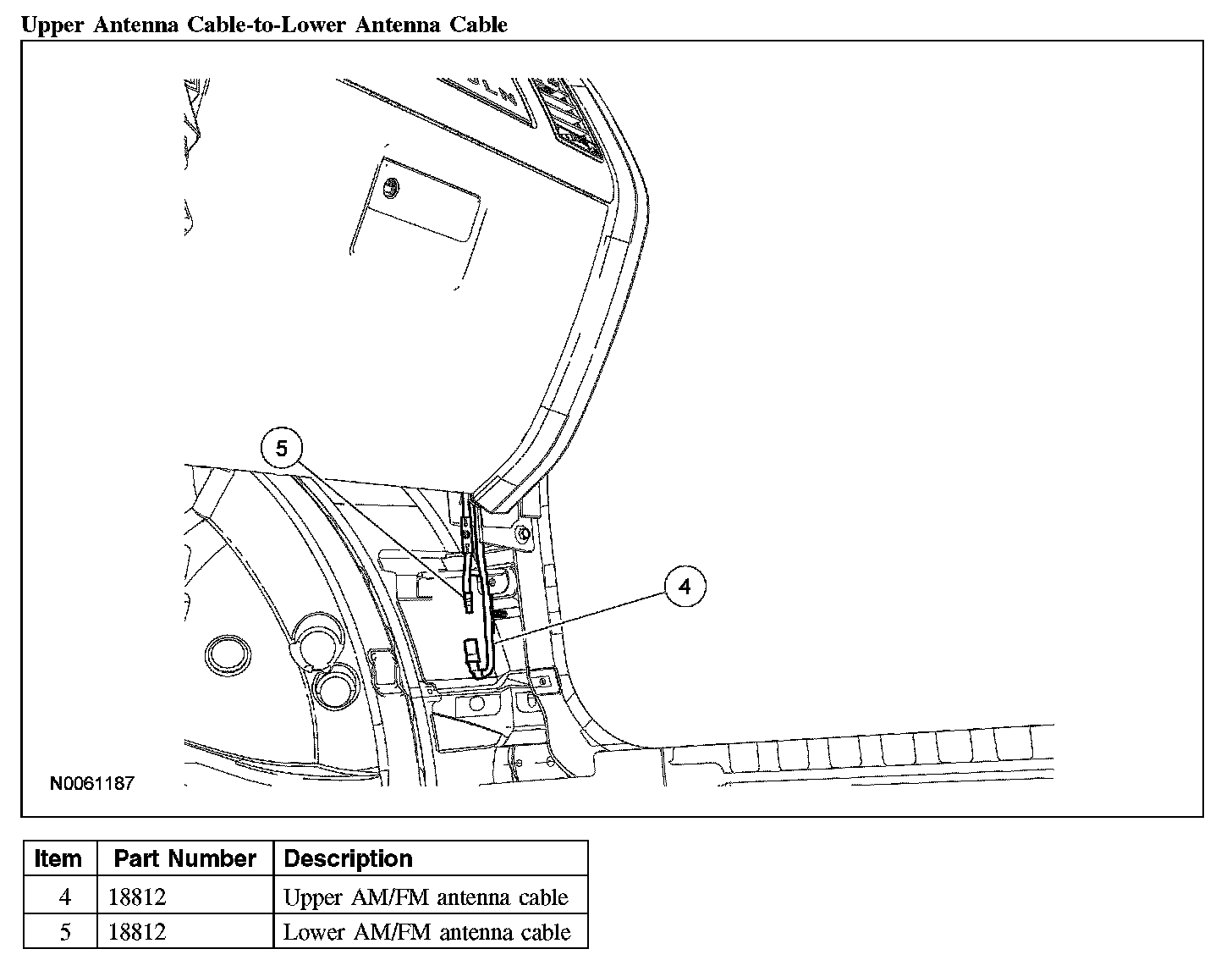

Upper Antenna Cable-to-Lower Antenna Cable:

Removal and Installation

Lower antenna cable
1. Remove the audio control module (ACM).

Upper antenna cable
2. Remove the RH A-pillar trim panel.
3. Remove the interior dome lamp.
4. Loosen the AM/FM antenna base bolt and disconnect the antenna cable from the antenna.
- To install, tighten to 7 Nm (62 lb-in).

5. Remove the RH sun visor.

6. NOTE: Lower the headliner, as necessary.

Remove the AM/FM antenna cable bolt and the antenna cable.
- To install, tighten the bolt to 12 Nm (106 lb-in).

Both antenna cables
7. Remove the RH front door scuff plate.
8. Disconnect the upper antenna cable from the lower antenna cable.
9. Release the pin-type retainers and remove the antenna cable.
10. To install, reverse the removal procedure.
