Global Positioning System (GPS) Antenna

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation

MKX
1. Remove the instrument cluster (IC).

All vehicles
2. Remove the audio control module (ACM).

3. NOTE: For vehicles without THX(R) audio, the vehicle will have an upper storage bin, rather than an instrument panel speaker.

Remove the instrument panel speaker.

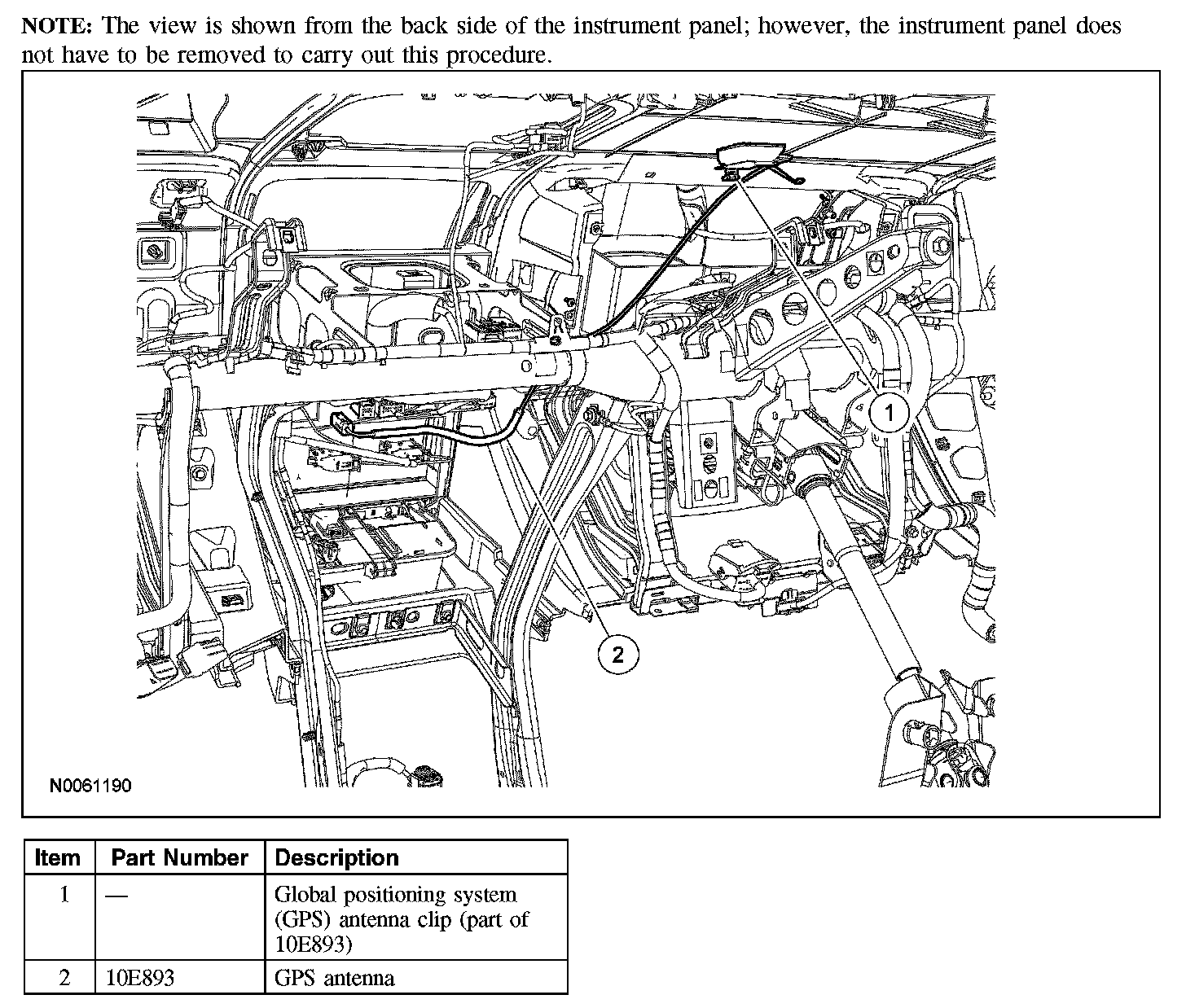

4. Release the clip and remove the global positioning system (GPS) antenna.
5. To install, reverse the removal procedure.
