Front Fender: Service and Repair

FENDER

Exploded View







Removal and Installation

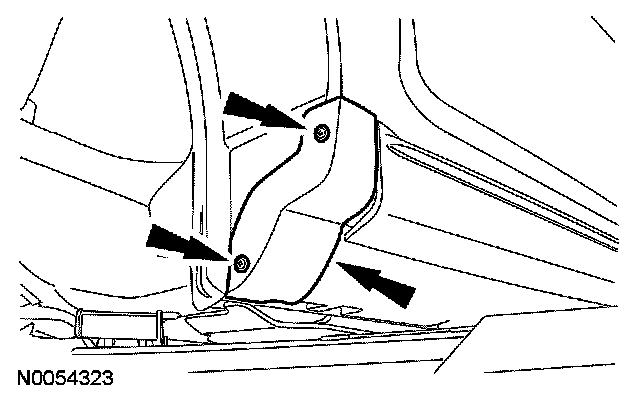

1. Remove the 2 screws and the rocker panel moulding end cap.







2. Remove the front fender splash shield.

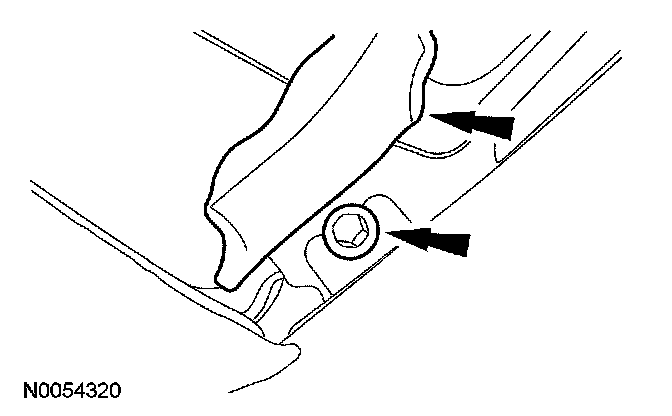

3. Remove the lower fender bolt.
- To install, tighten to 9 Nm (80 lb-in).

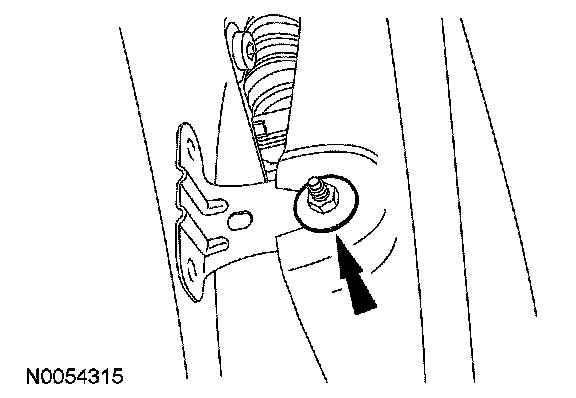

4. Remove the nut from the stud inside the fender well.
- To install, tighten to 9 Nm (80 lb-in).







5. CAUTION: The front bumper cover may be damaged if pulled outward too far while trying to access the bolts.

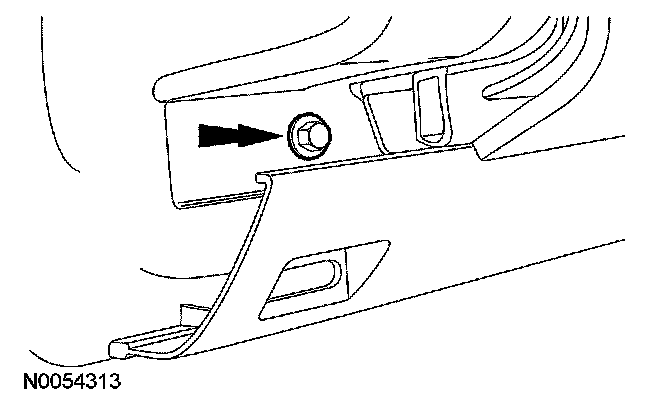

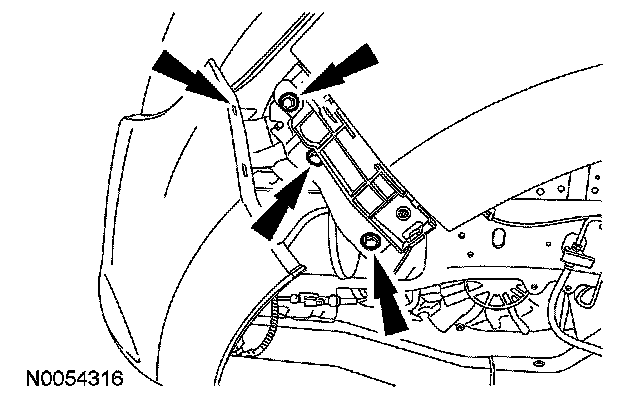

Remove the front fender bolts.
- Remove the front bumper cover corner.
- Remove the bolts.
- To install, tighten to 9 Nm (80 lb-in).

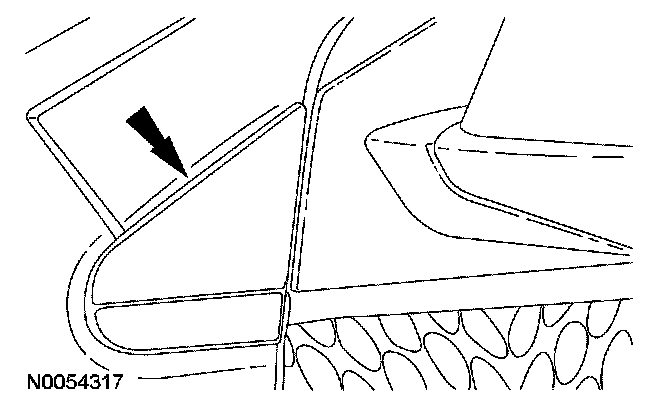

6. Remove the upper rear fender bolt cover.







7. Remove the upper rear fender bolt.
- To install, tighten to 9 Nm (80 lb-in).







8. Remove the 2 upper fender bolts.
- To install, tighten to 9 Nm (80 lb-in).

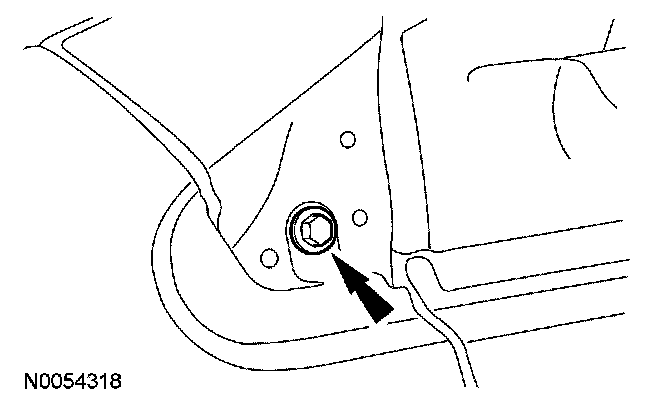

9. Remove the fender cowl bolt.
- Position the cowl cover aside.
- Remove the bolt.
- To install, tighten to 9 Nm (80 lb-in).







10. Remove the front fender.
11. To install, reverse the removal procedure.
- If necessary, transfer parts.
