Exterior Mirror

EXTERIOR MIRROR

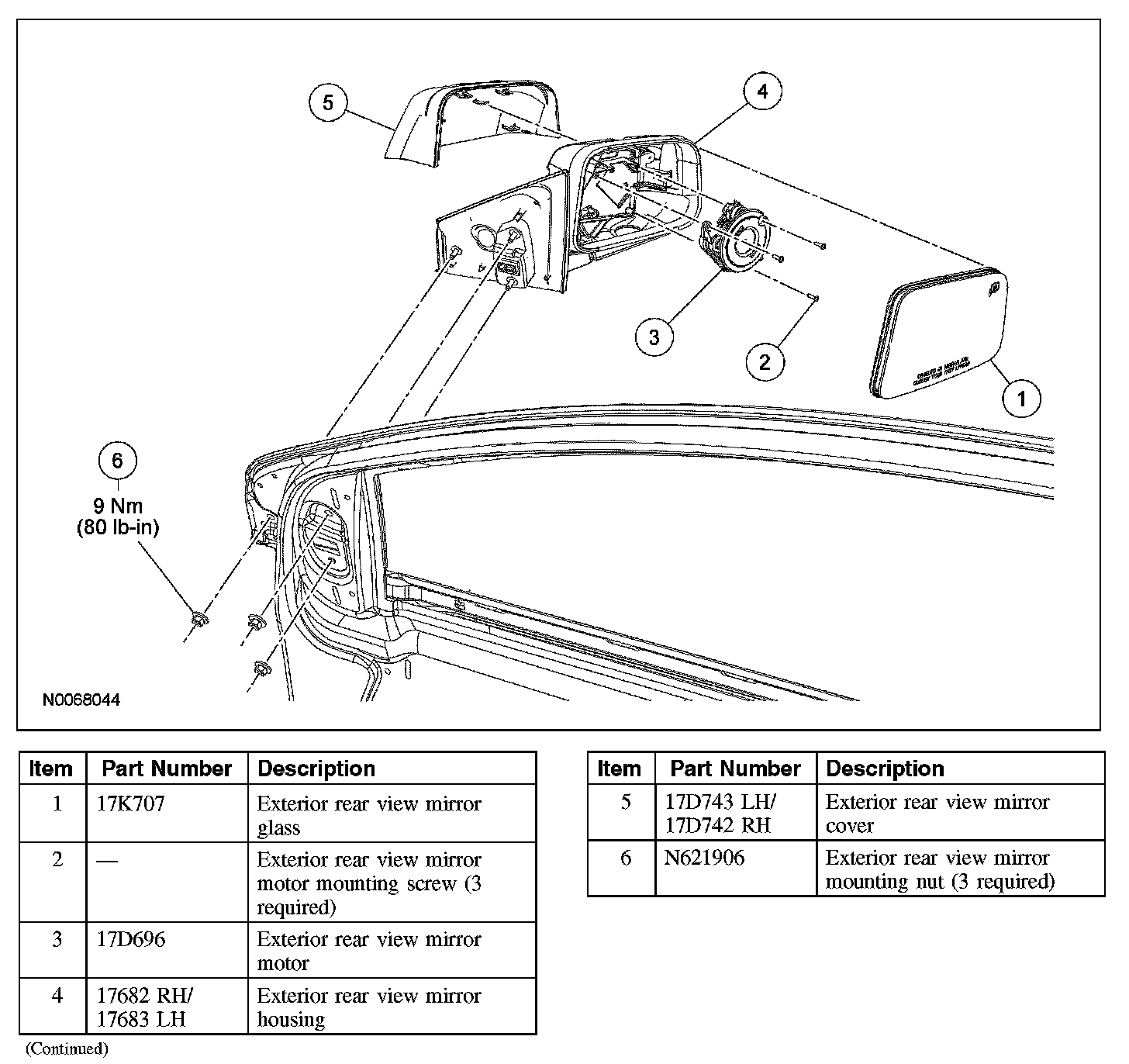

Exploded View







Removal and Installation

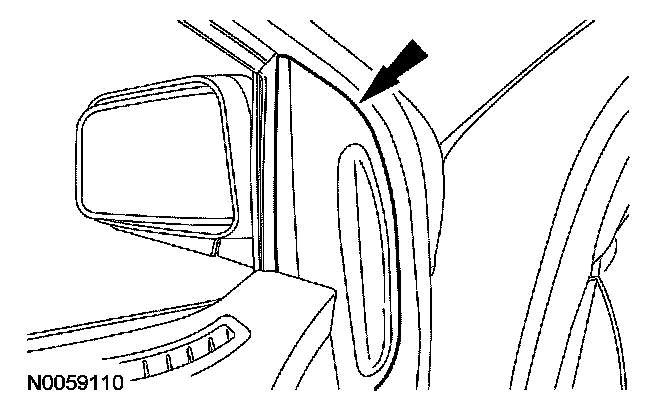

1. Remove the front door sail panel.

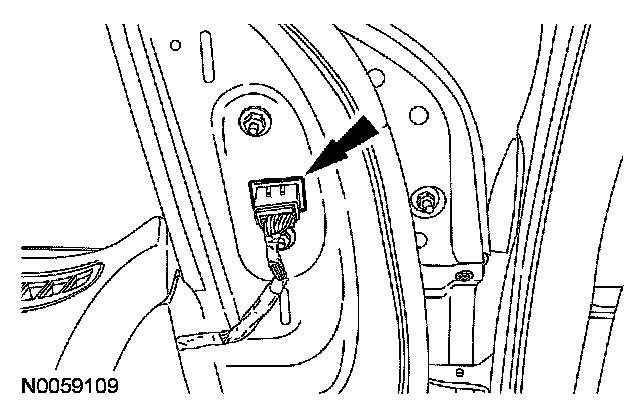

2. Disconnect the exterior mirror electrical connector.

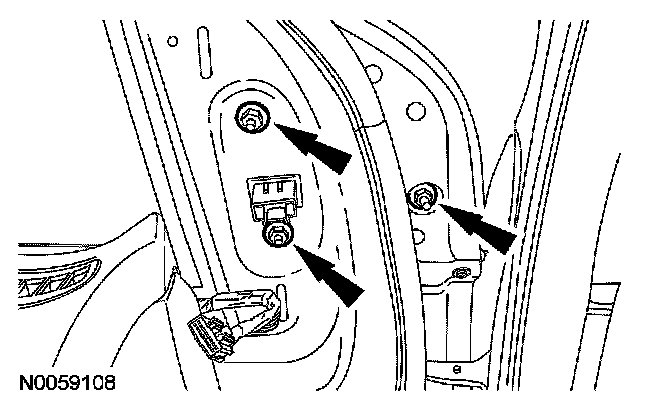

3. Remove the 3 nuts and the exterior mirror.
- To install, tighten to 9 Nm (80 lb-in).







4. To install, reverse the removal procedure.
