Power Seat Track

POWER SEAT TRACK

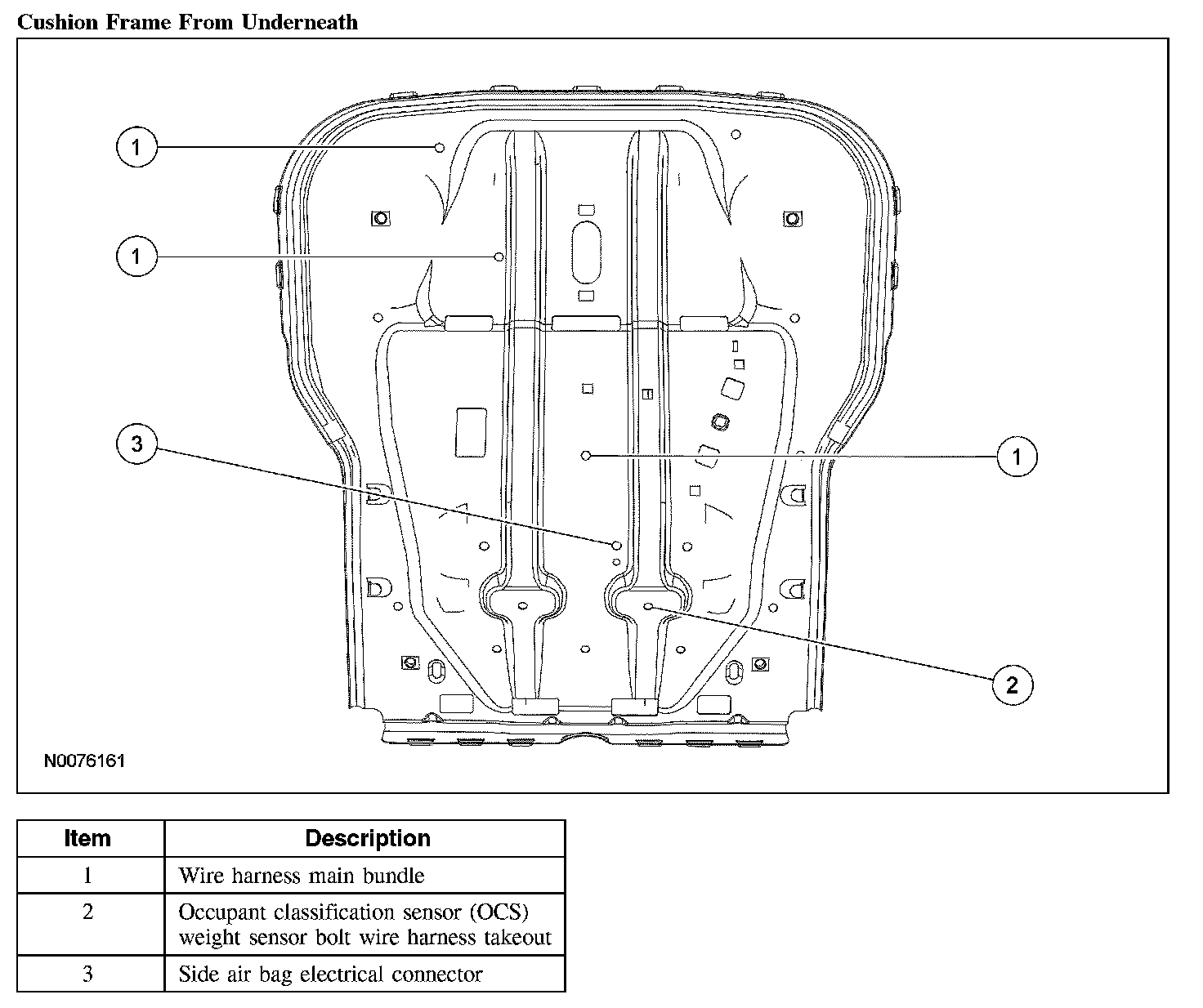

Cushion Frame From Underneath:

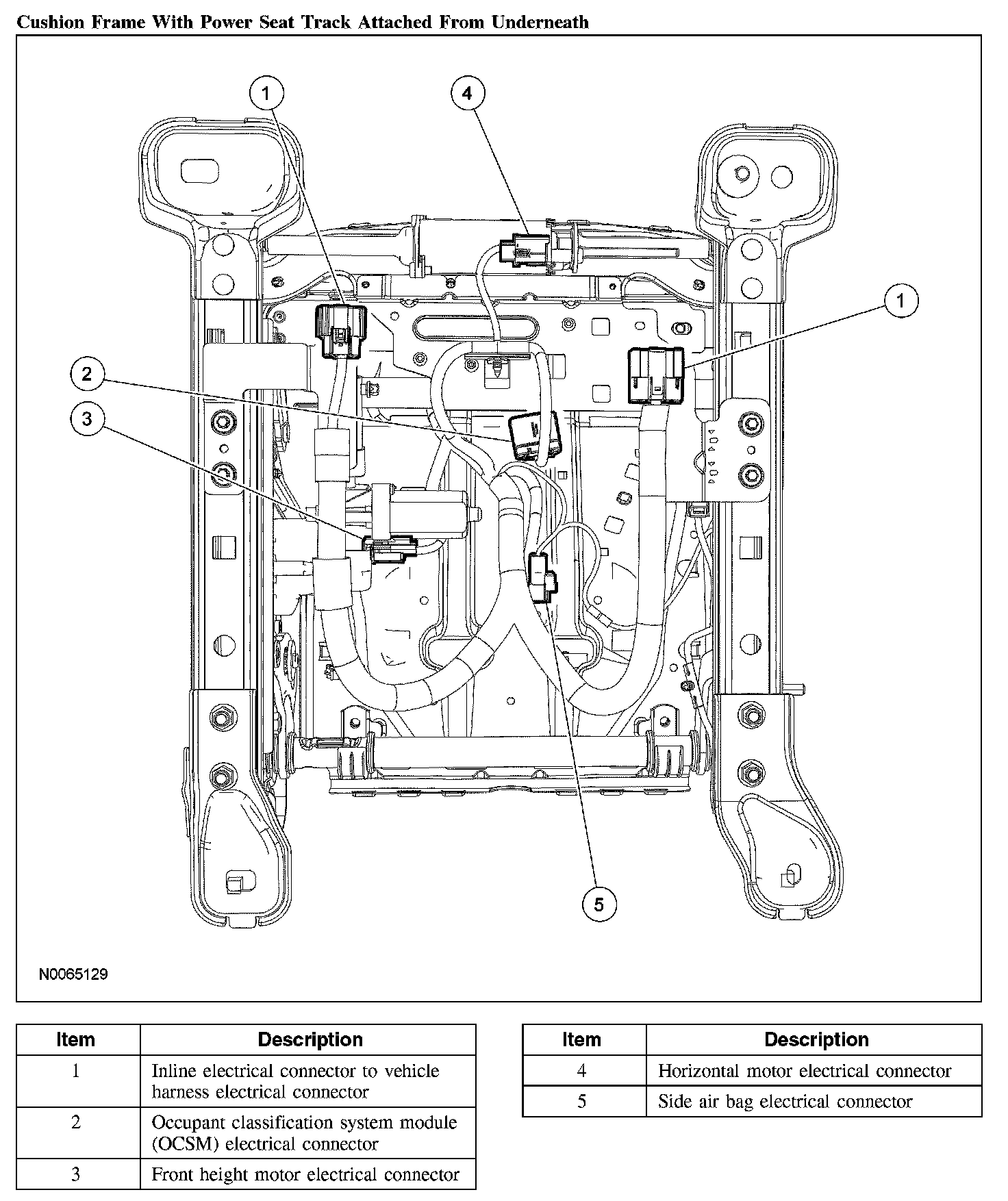

Cushion Frame With Power Seat Track Attached From Underneath:

Inboard Side of Cushion Frame and Power Seat Track From Underneath:

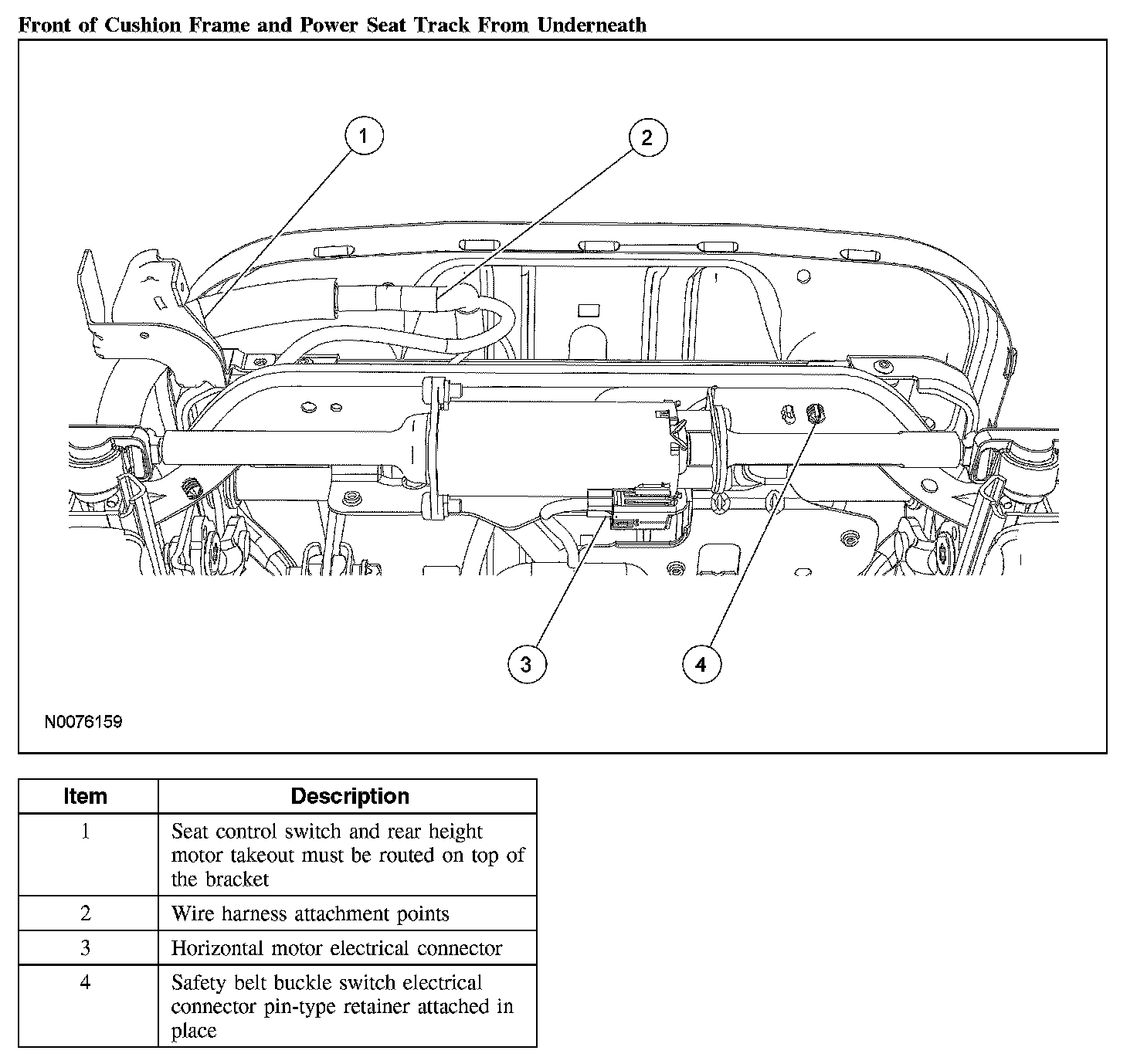

Front of Cushion Frame and Power Seat Track From Underneath:

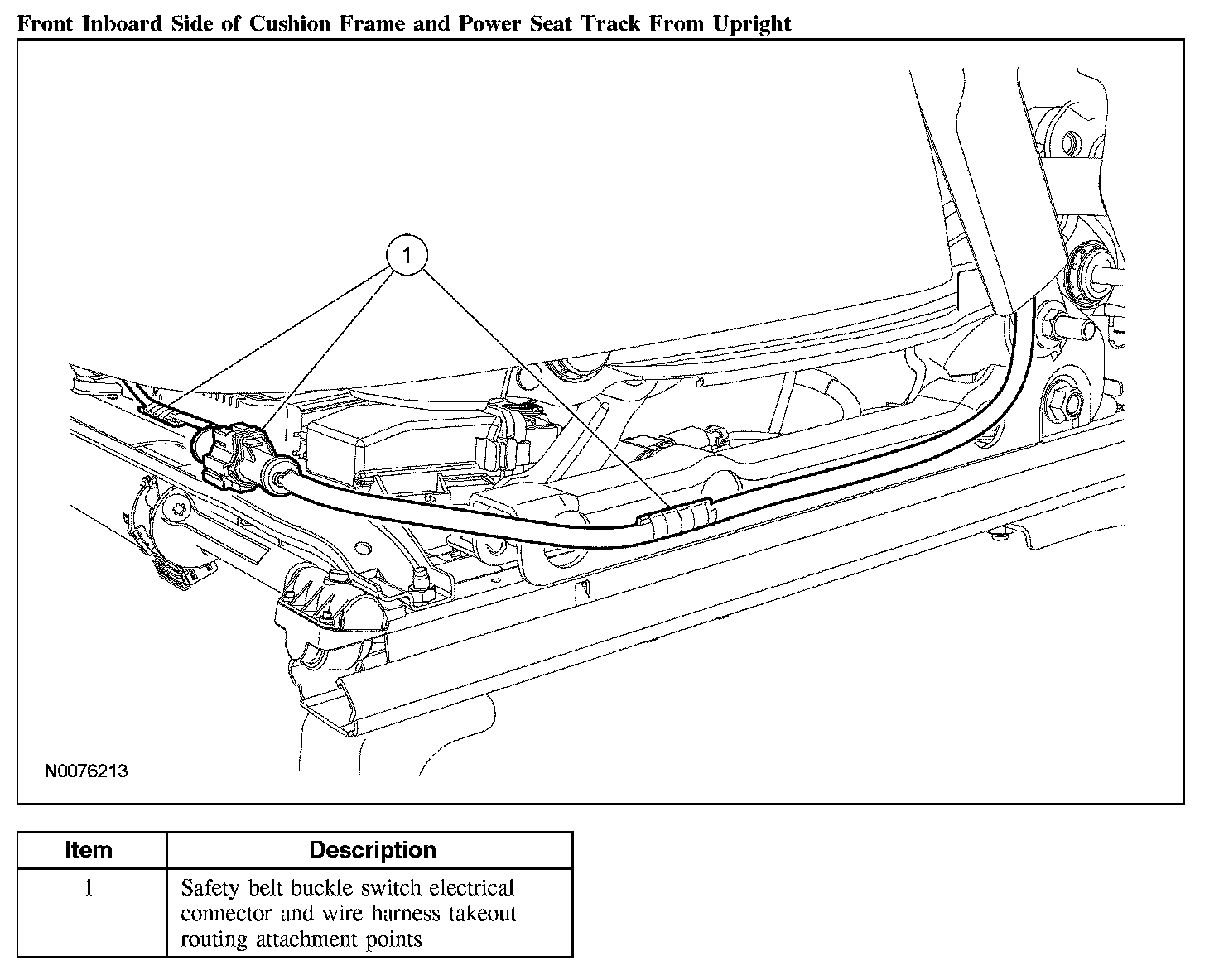

Front Inboard Side of Cushion Frame and Power Seat Track From Upright:

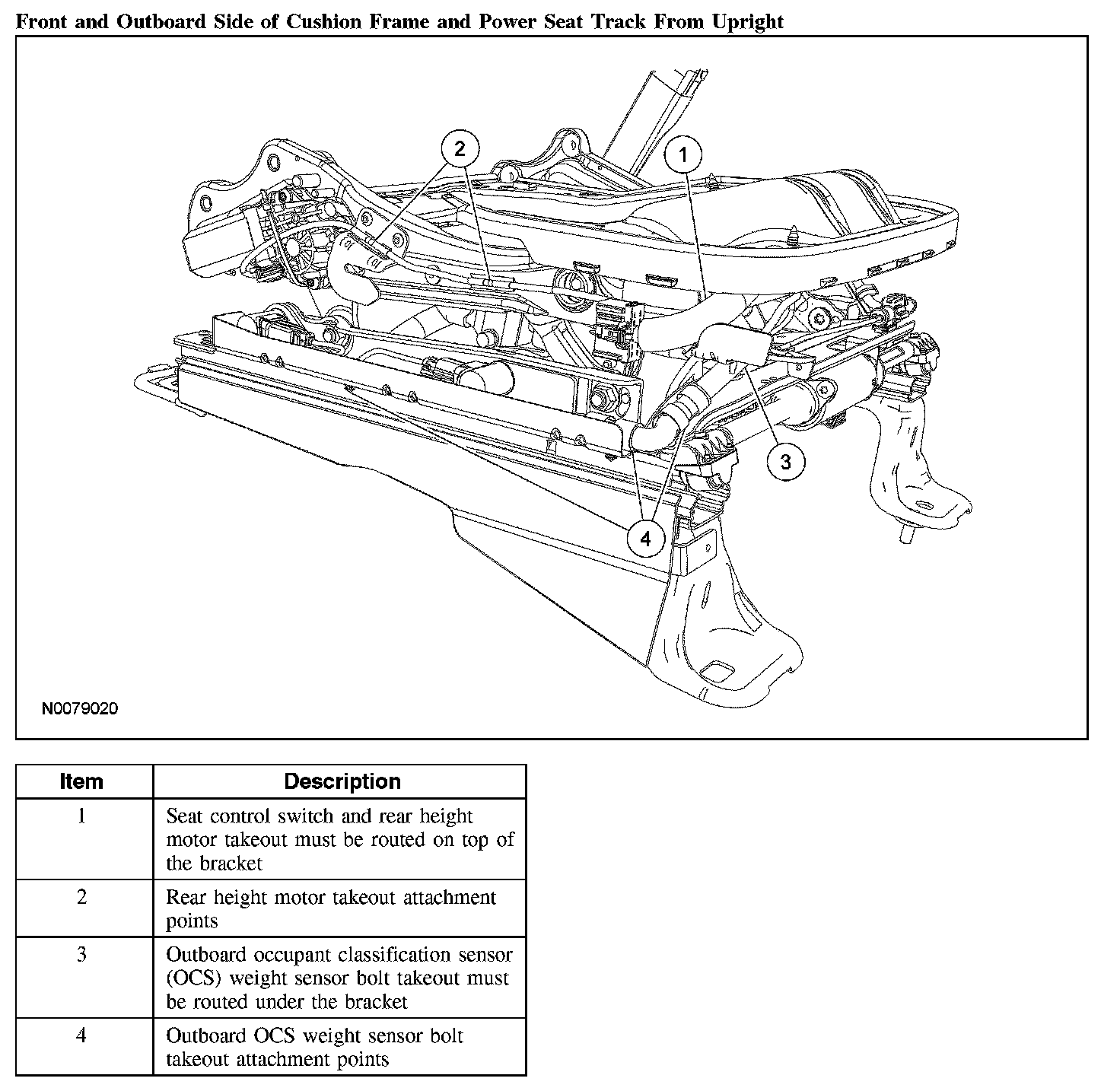

Front and Outboard Side of Cushion Frame and Power Seat Track From Upright:

Outboard of Cushion Frame and Power Seat Track From Upright:

1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
