Power Seat Track With Heat

POWER SEAT TRACK WITH HEAT

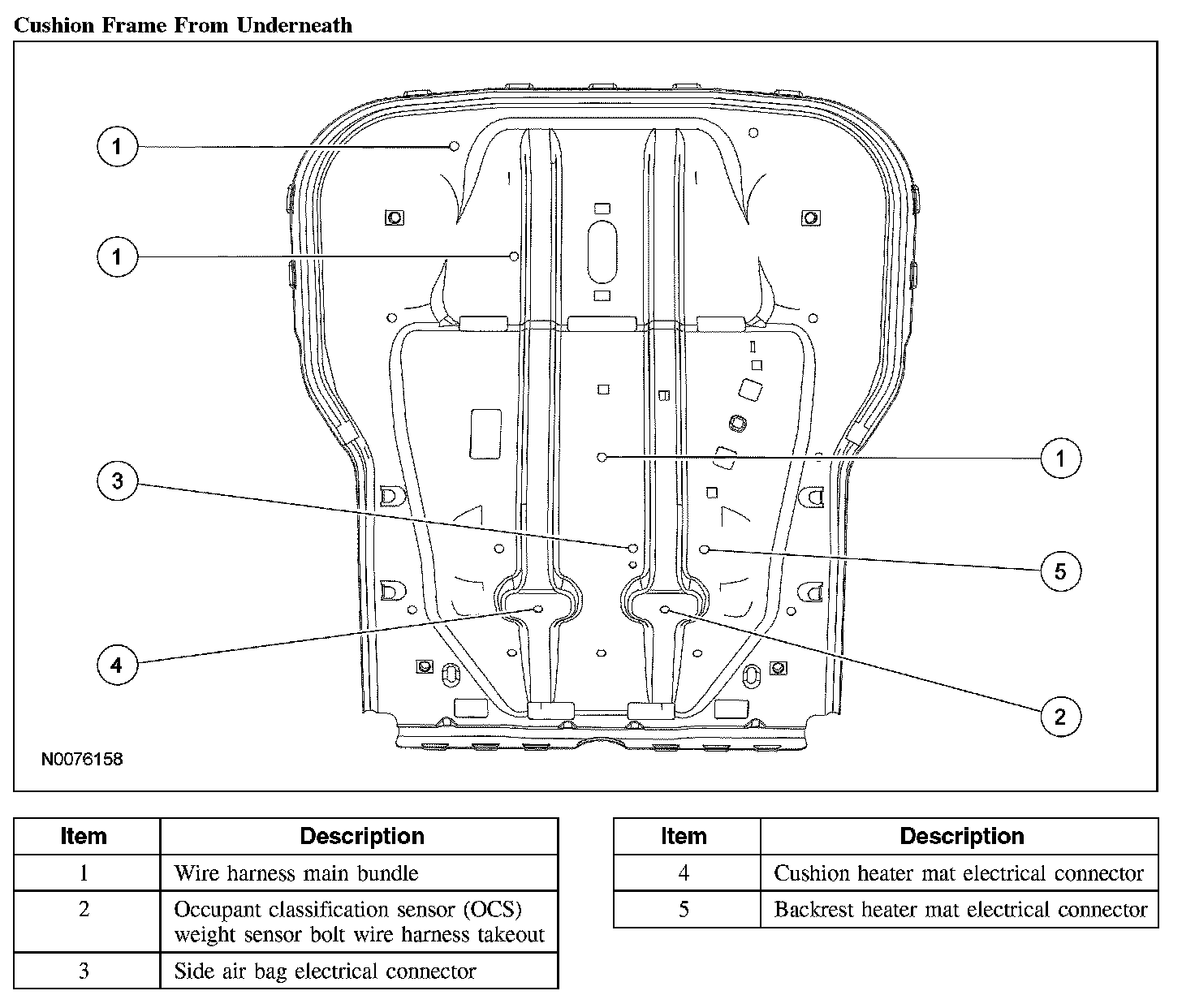

Cushion Frame From Underneath:

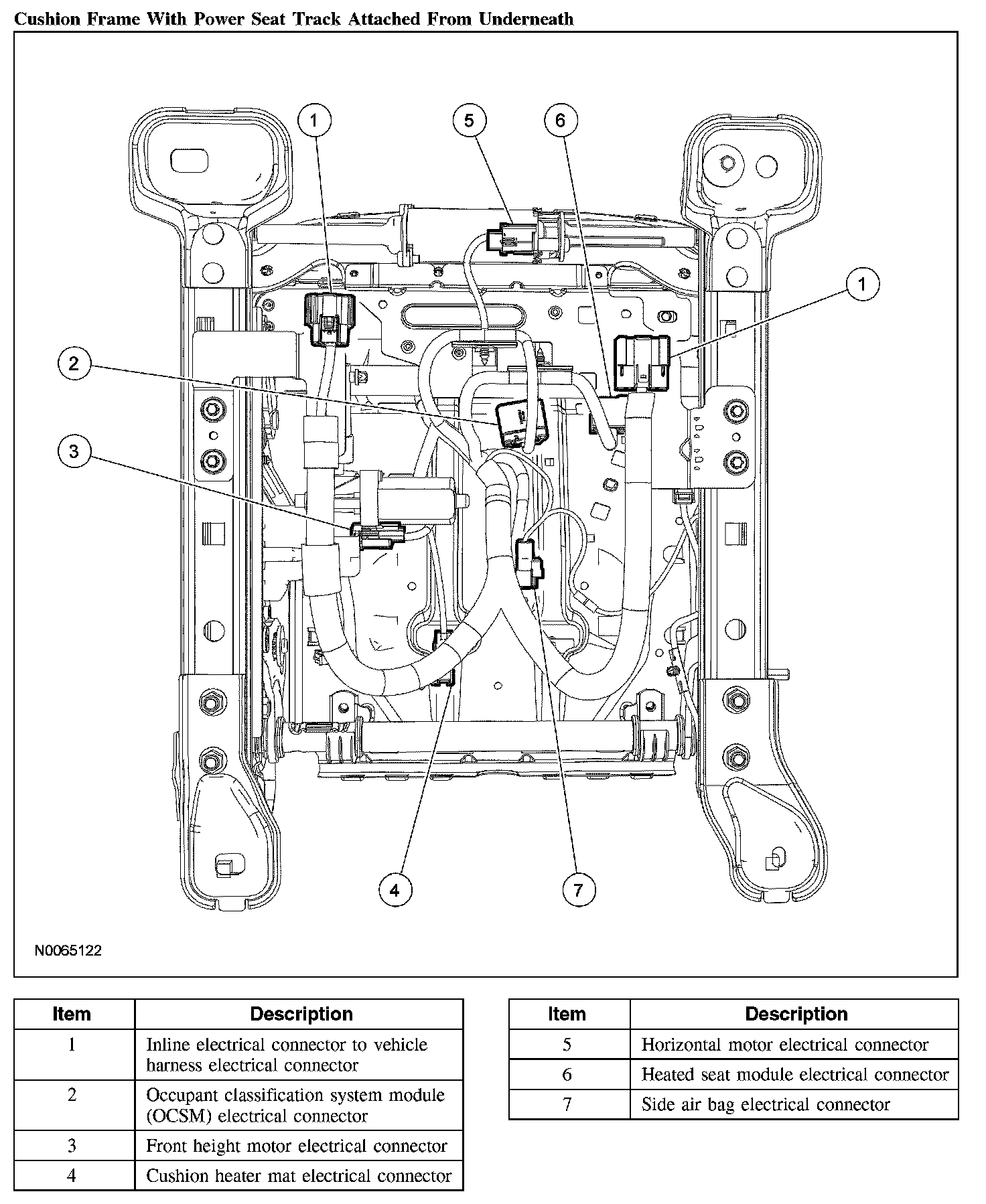

Cushion Frame With Power Seat Track Attached From Underneath:

Inboard Side of Cushion Frame and Power Seat Track From Underneath:

Front of Cushion Frame and Power Seat Track From Underneath:

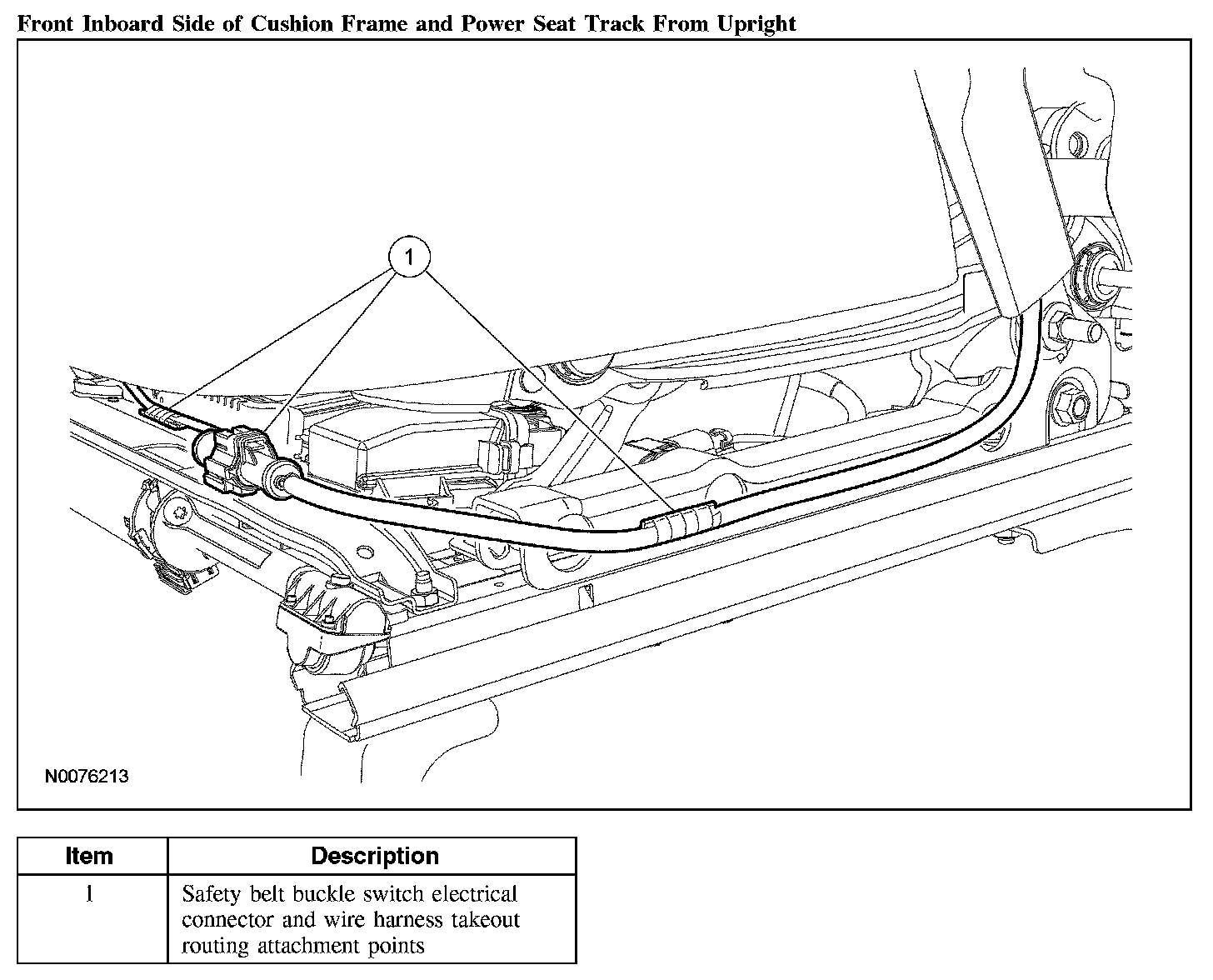

Front Inboard Side of Cushion Frame and Power Seat Track From Upright:

Front and Outboard Side of Cushion Frame and Power Seat Track From Upright:

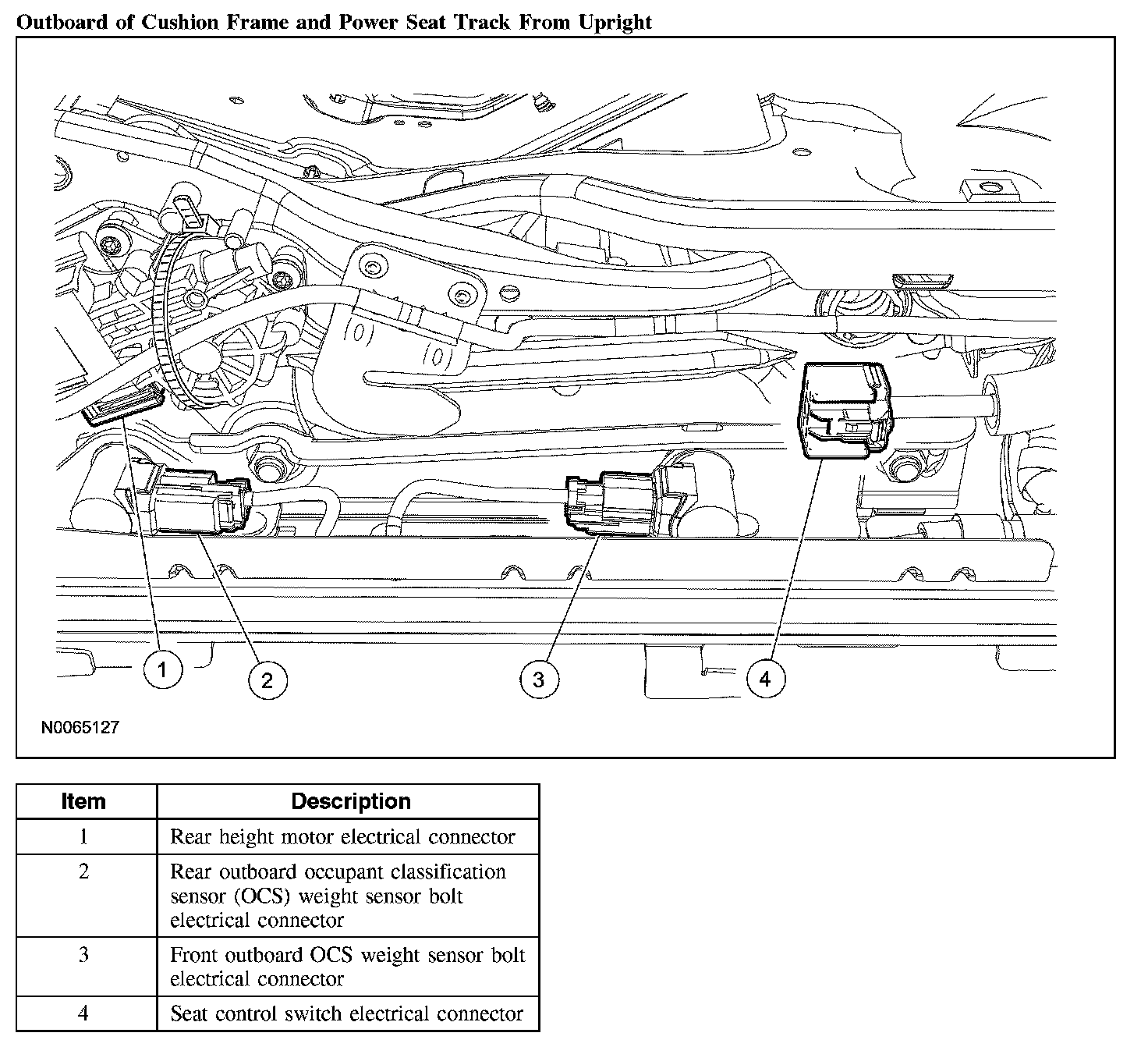

Outboard of Cushion Frame and Power Seat Track From Upright:

1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
