Power Seat Track With Power Recline, Power Lumbar and Climate Control
POWER SEAT TRACK WITH POWER RECLINE, POWER LUMBAR AND CLIMATE CONTROLCushion Frame From Underneath:

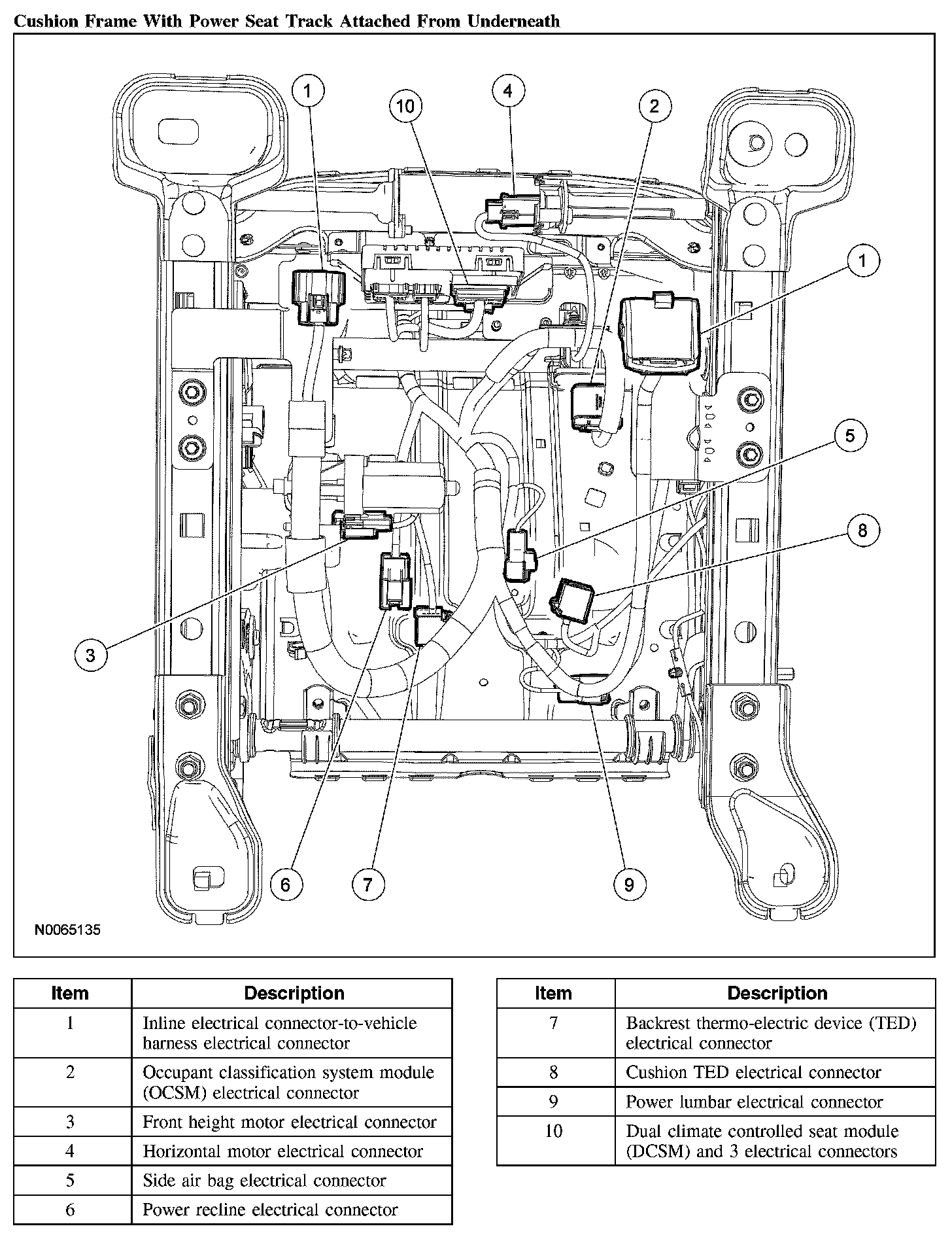

Cushion Frame With Power Seat Track Attached From Underneath:
Inboard Side of Cushion Frame and Power Seat Track From Underneath:

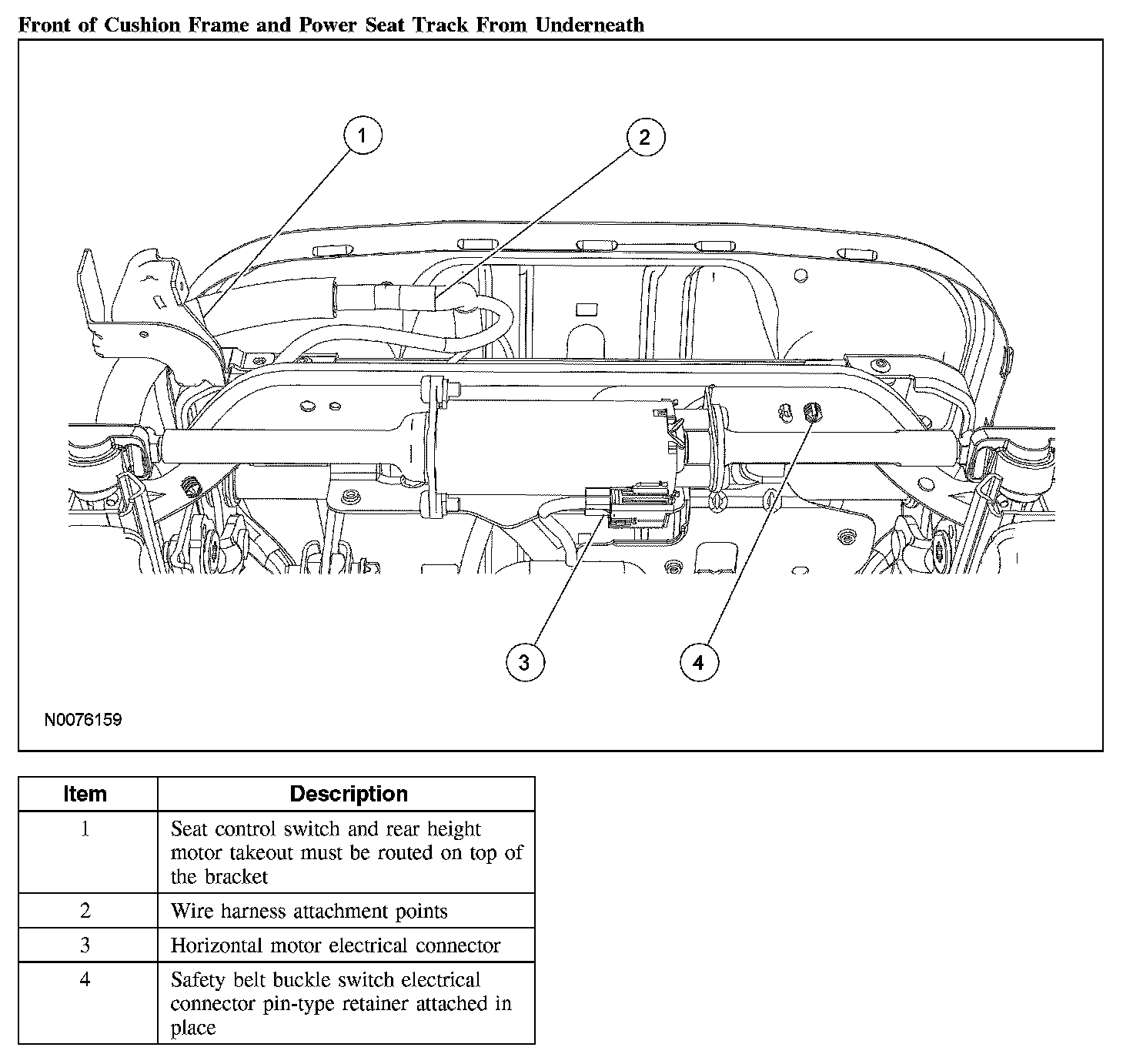

Front of Cushion Frame and Power Seat Track From Underneath:
Front Inboard Side of Cushion Frame and Power Seat Track From Upright:

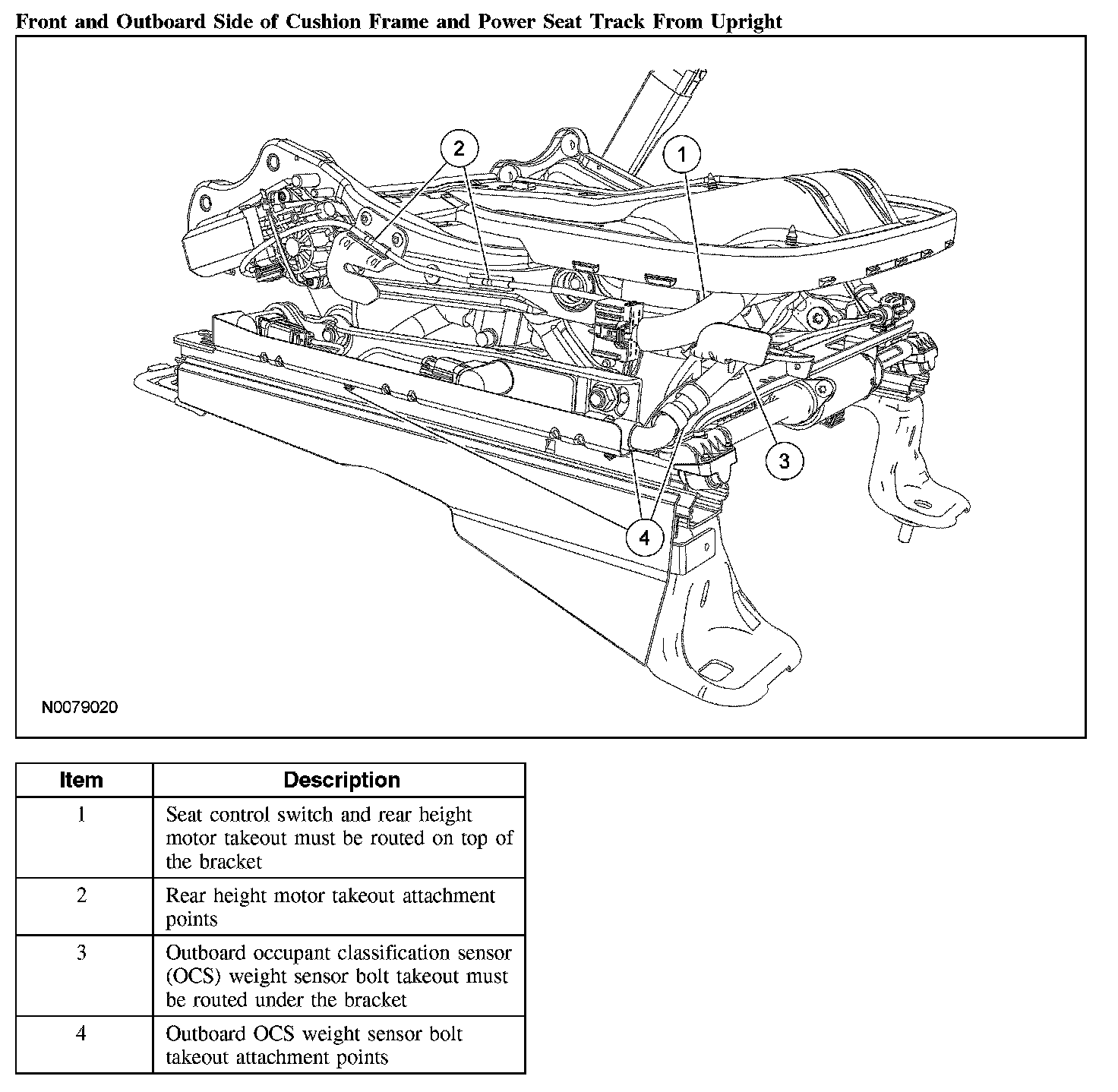

Front and Outboard Side of Cushion Frame and Power Seat Track From Upright:

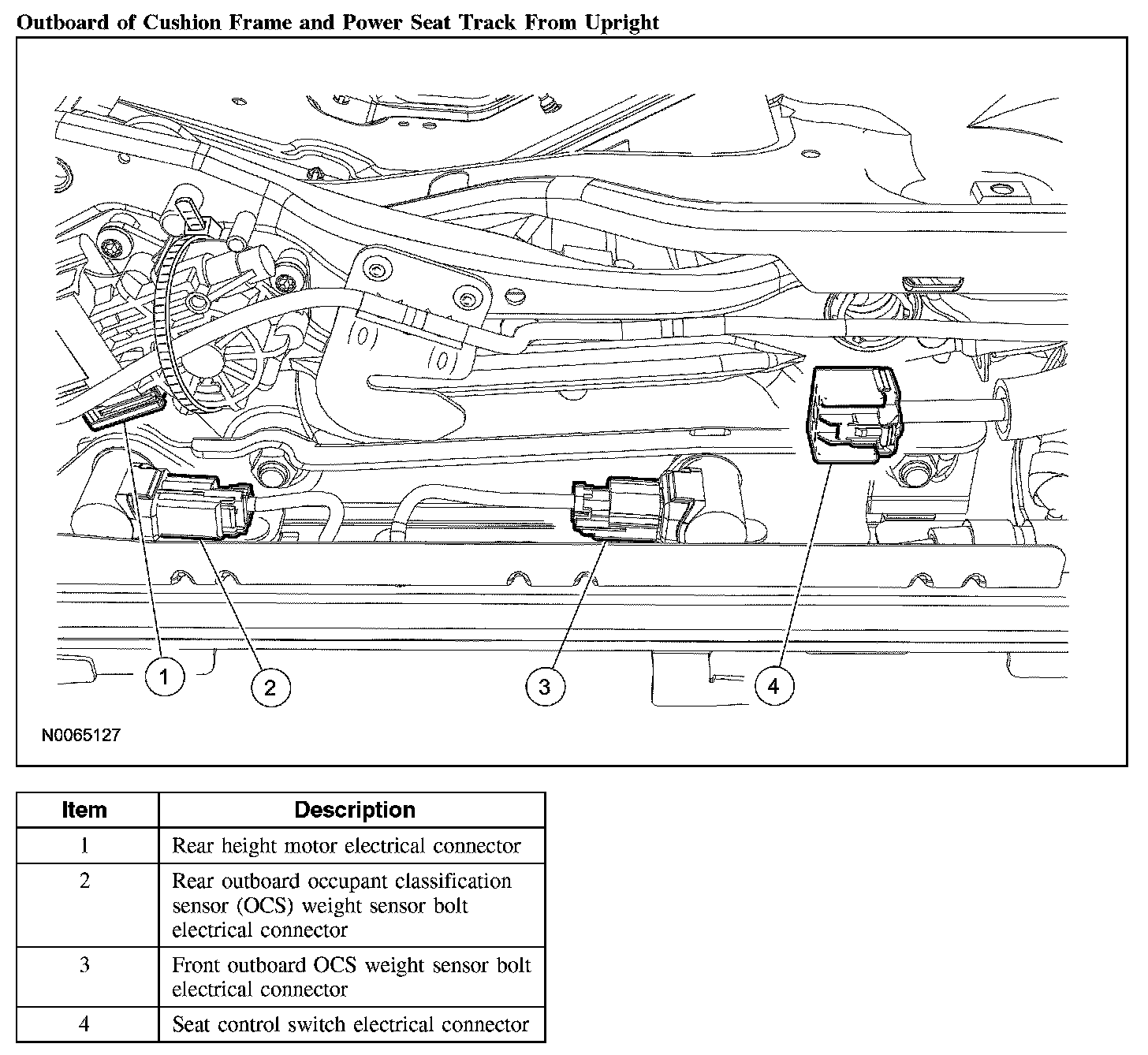

Outboard of Cushion Frame and Power Seat Track From Upright:
1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
