Test C: DTCs C1145, C1155, C1165 and C1175 - Wheel Speed Sensor Input Circuit Failure

Pinpoint Test C: DTCs C1145, C1155, C1165 and C1175 - Wheel Speed Sensor Input Circuit Failure
Refer to Vehicle/Diagrams, Vehicle Dynamic Systems for schematic and connector information.

Normal Operation
The wheel speed sensors generate a square wave signal that is sent to the ABS module. The wheel speed sensor circuitry connects to the ABS module through 2 wires and a connector at each wheel speed sensor. When the ignition is turned to the RUN position, the ABS module carries out a self-test to determine if the sensors are functional. Voltage is supplied to the active wheel speed sensors from the ABS module. The wheel speed sensor ground is supplied by the ABS module.

Wheel speed sensor DTCs will automatically clear when a successful test drive is carried out. A successful test drive should include speeds above 32 km/h (20 mph) and at least one ABS stop.

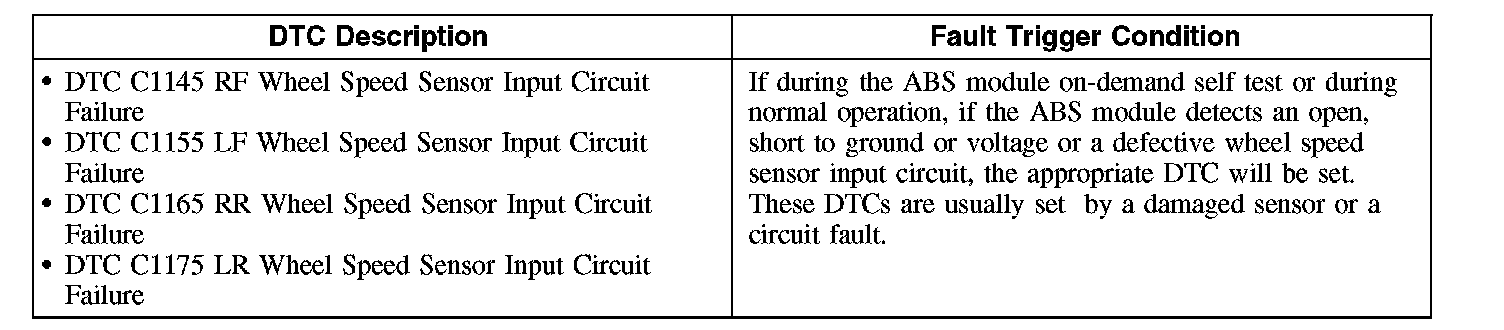

This pinpoint test is intended to diagnose the following:
^ Connector water intrusion
^ Wiring, terminals or connectors
^ Wheel speed sensor tone ring
^ Wheel speed sensors
^ ABS module

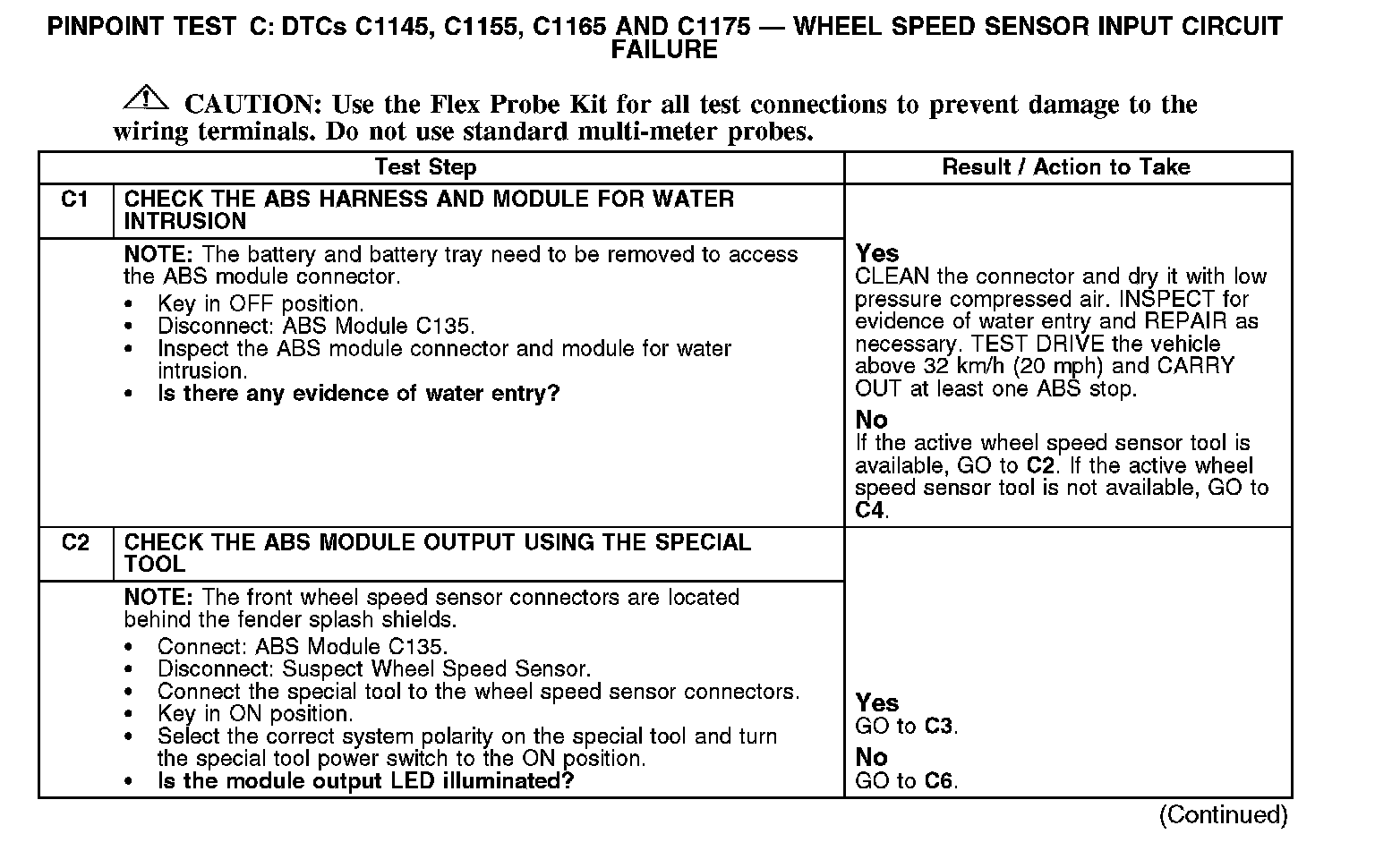

C1-C2:

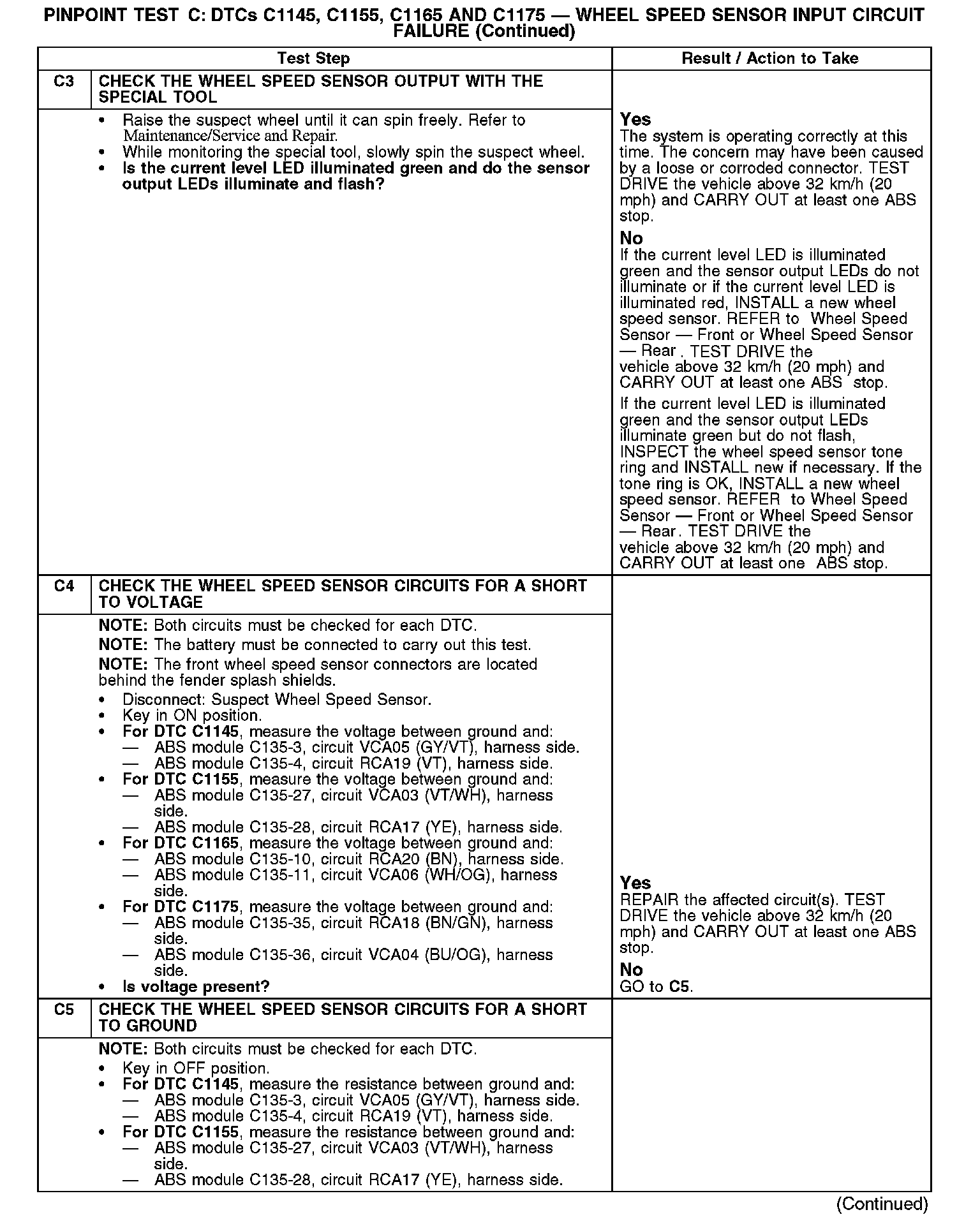

C3-C5:

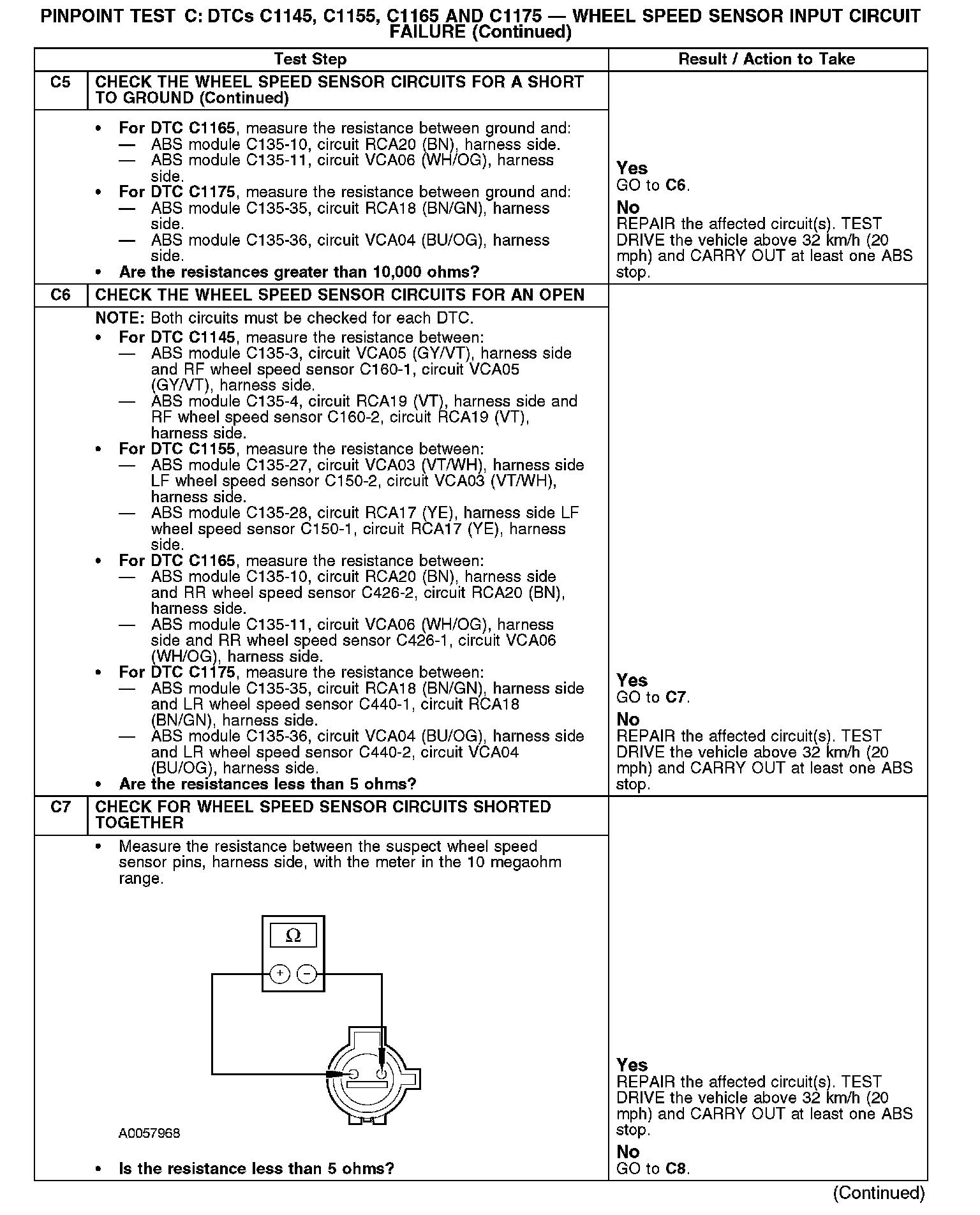

C5 (Continued)-C7:

C8-C9:
