Home >> Ford Truck >> 2008 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C540-C919 >> C570A

C570A

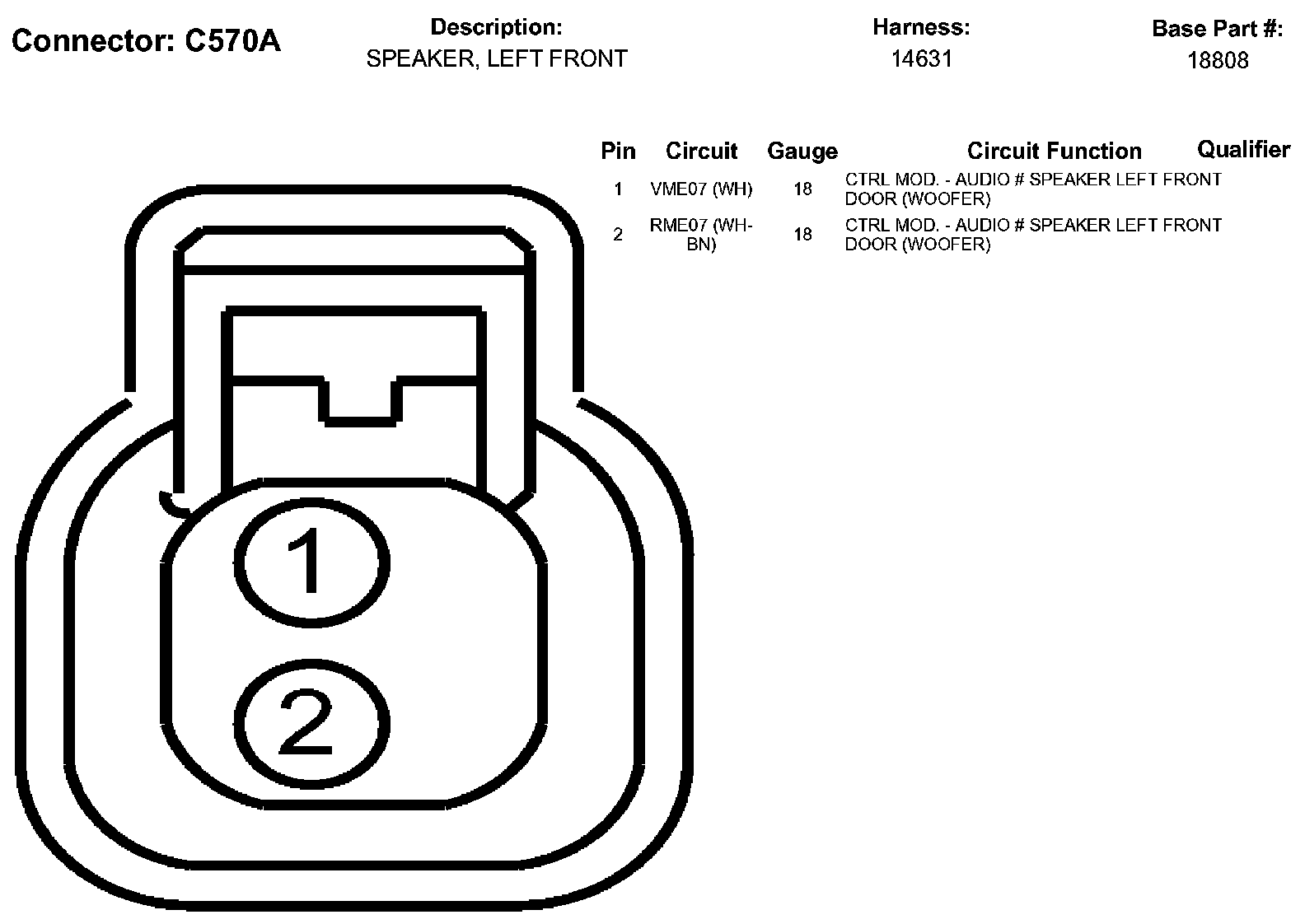

C570A:



C570B:

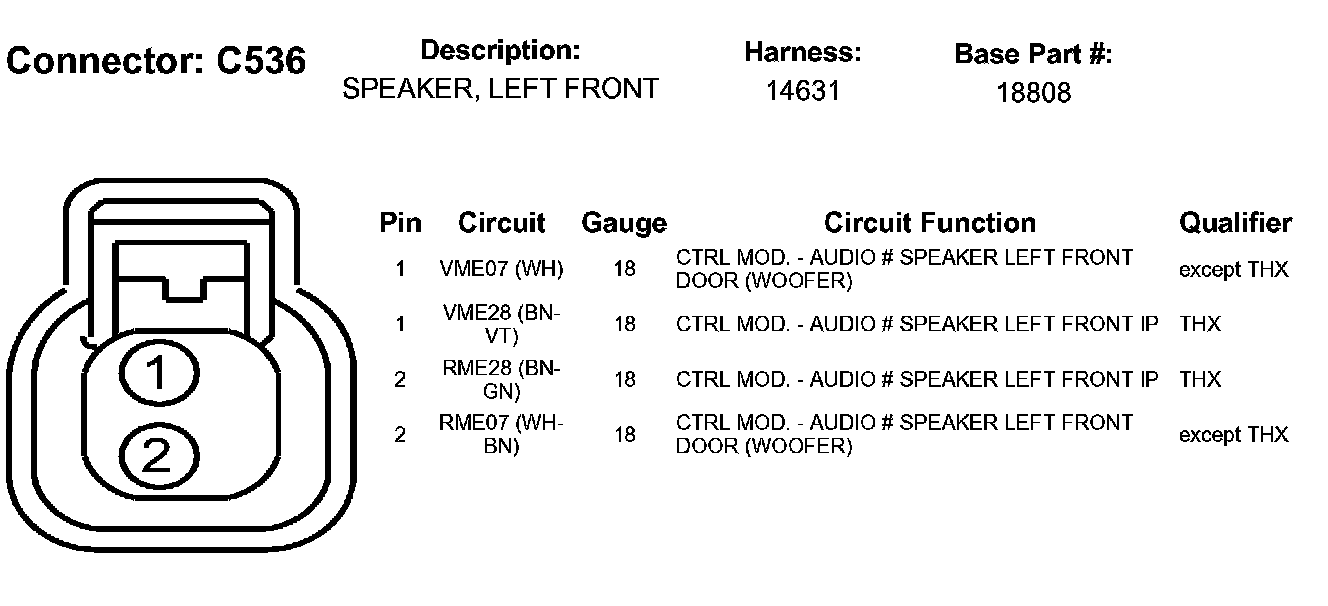

C536:
