Home >> Ford Truck >> 2008 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C540-C919 >> C700

C700

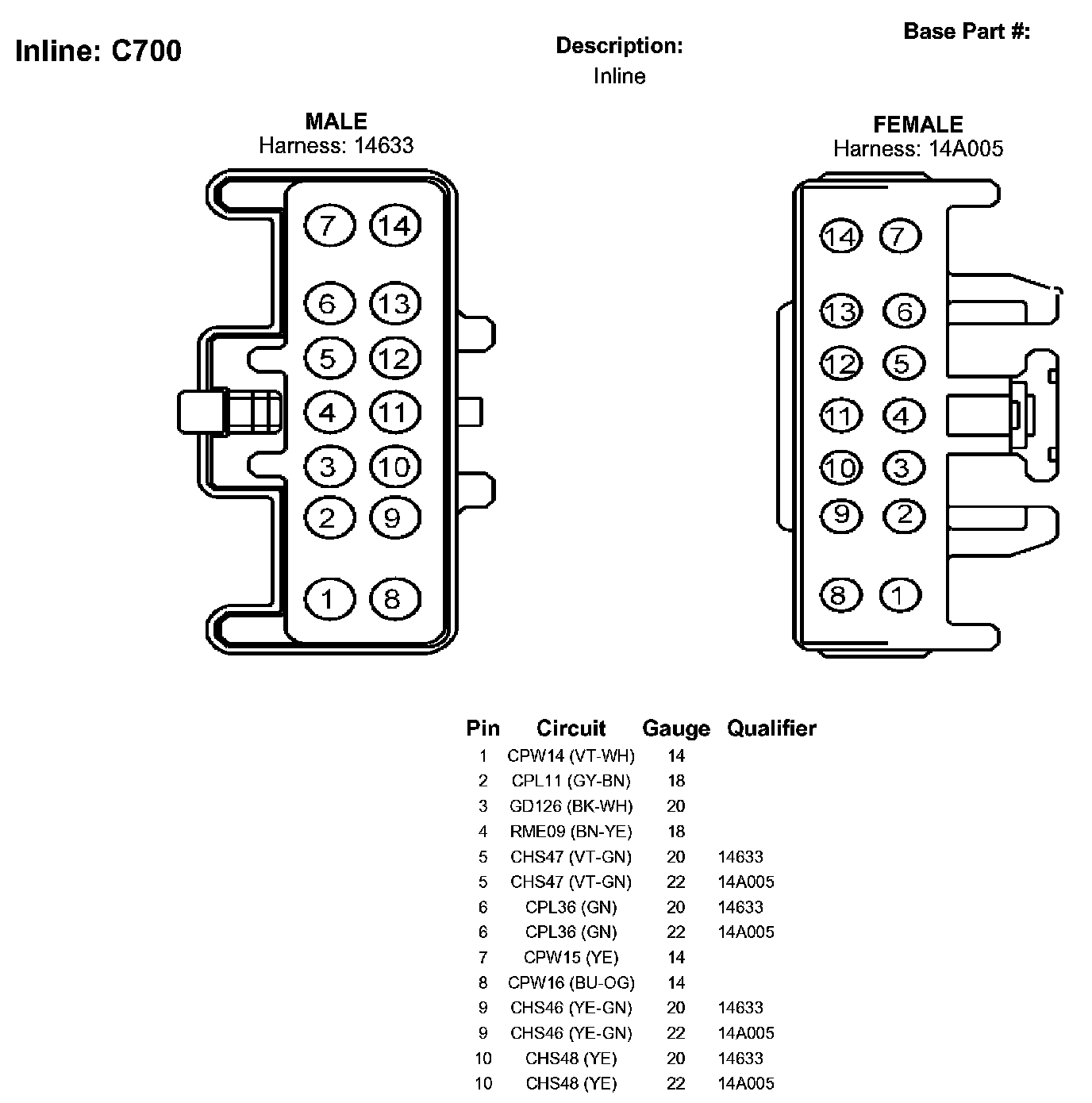

C700 (Part 1):

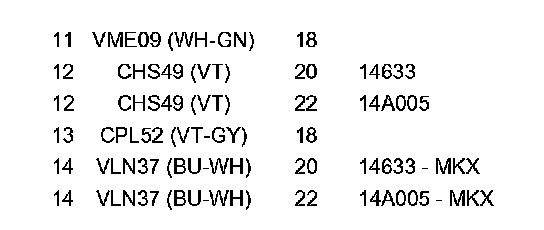

C700 (Part 2):
