Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2008
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C920-C1554
>>
C949
C949

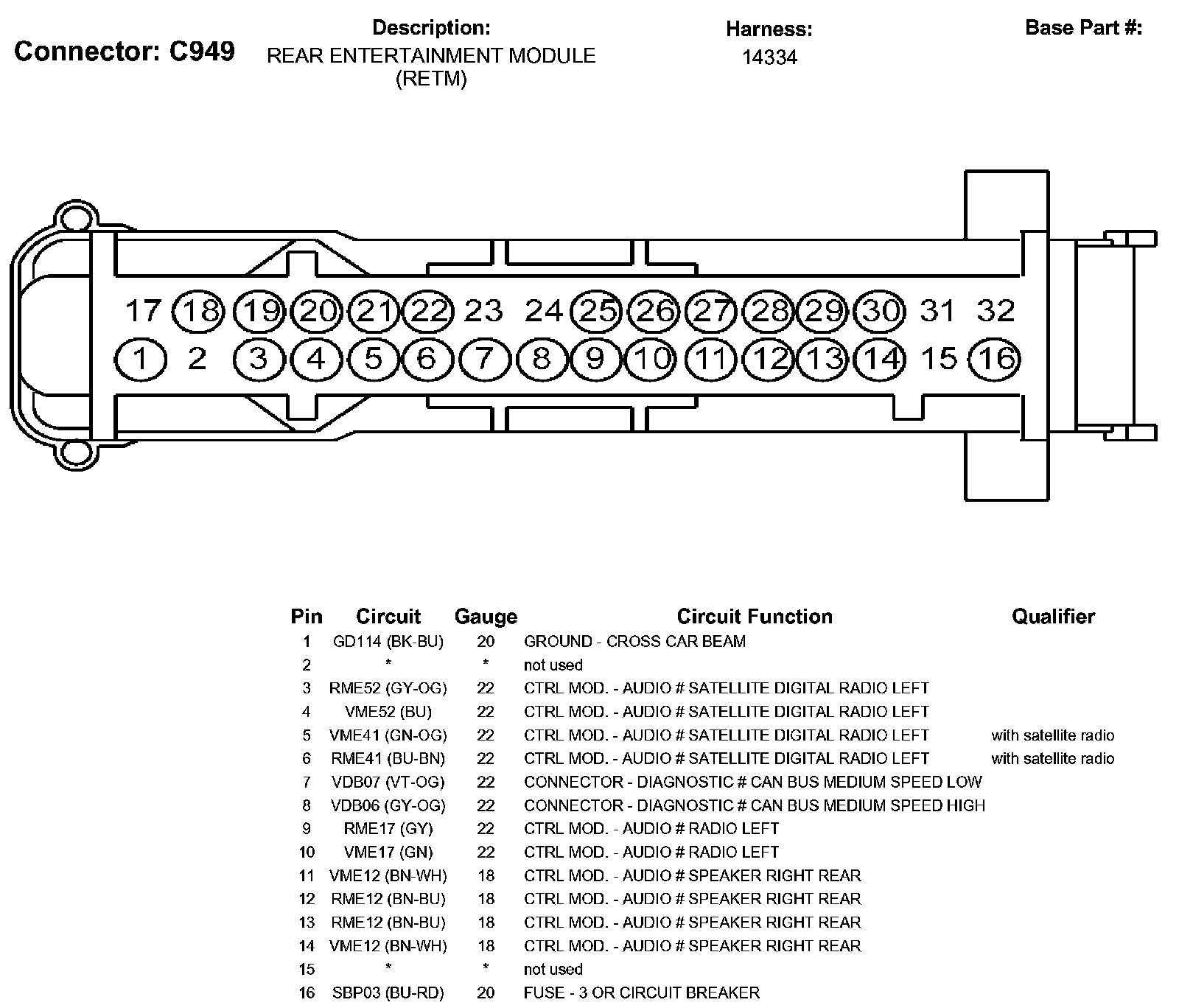

C949 (Part 1):

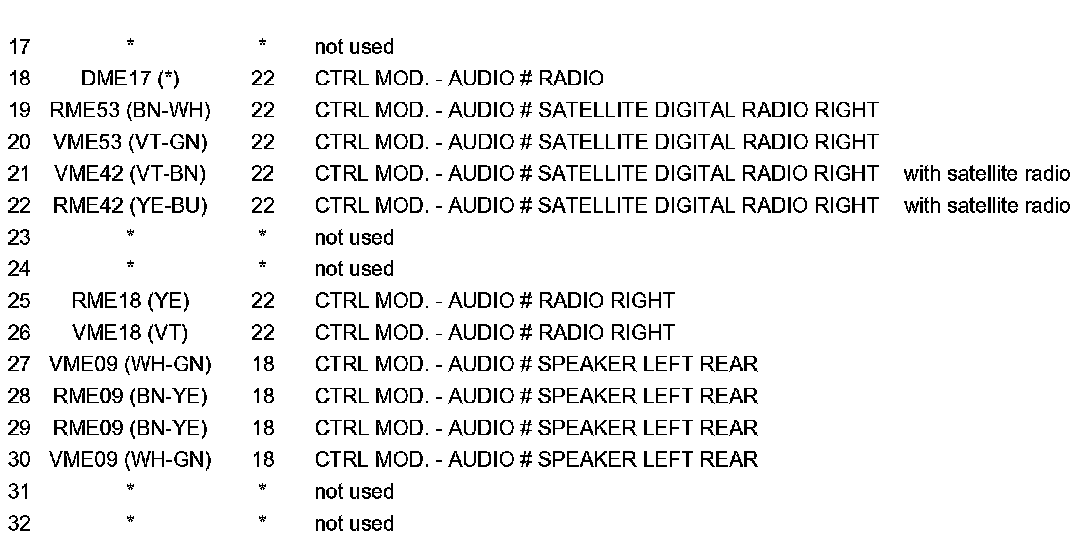

C949 (Part 2):
