Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
>>

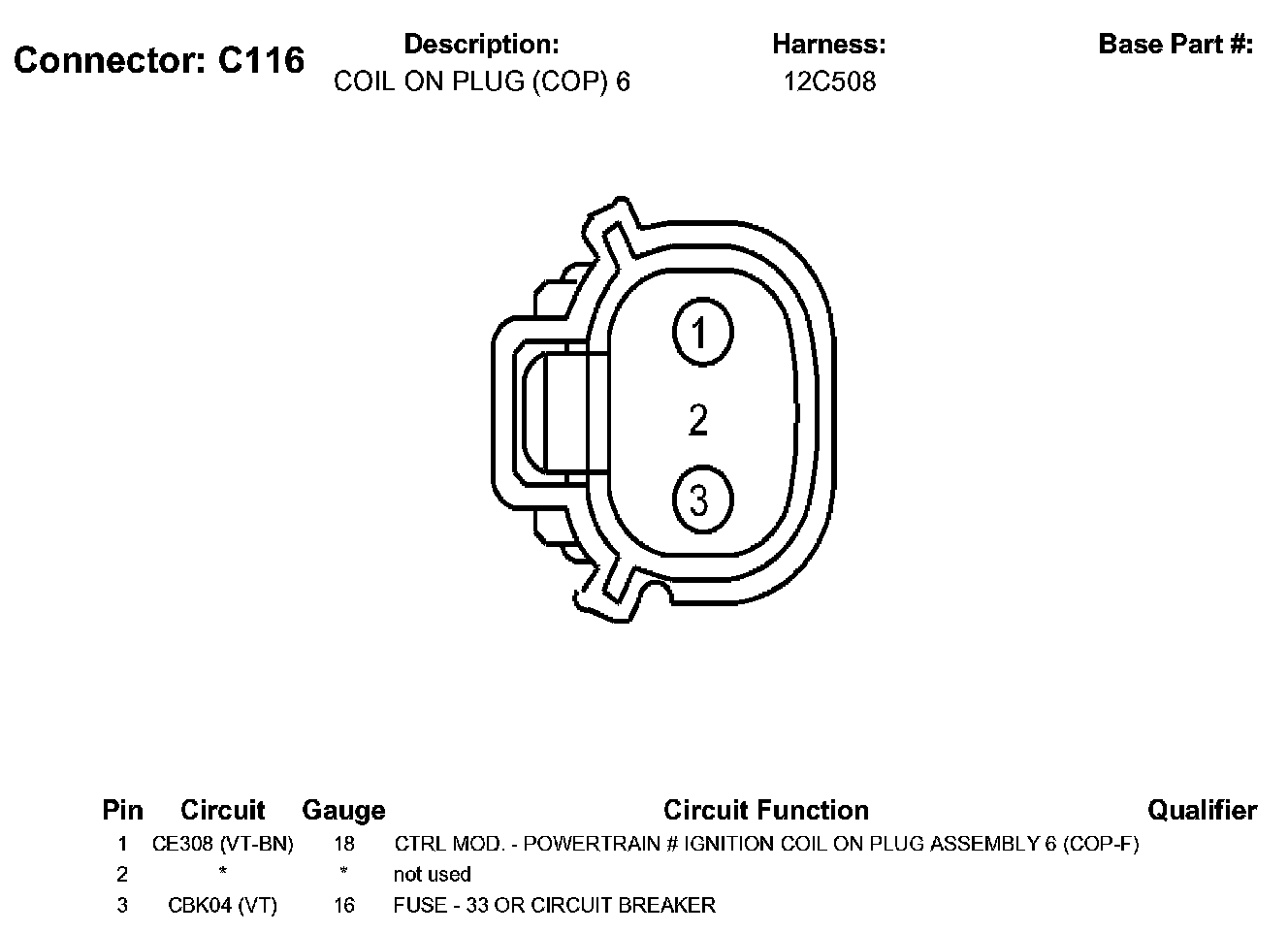

Coil On Plug (Cop) 6
Coil On Plug (Cop) 6
C116:
