Ford Truck
>>
2008
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Joint Connector 8

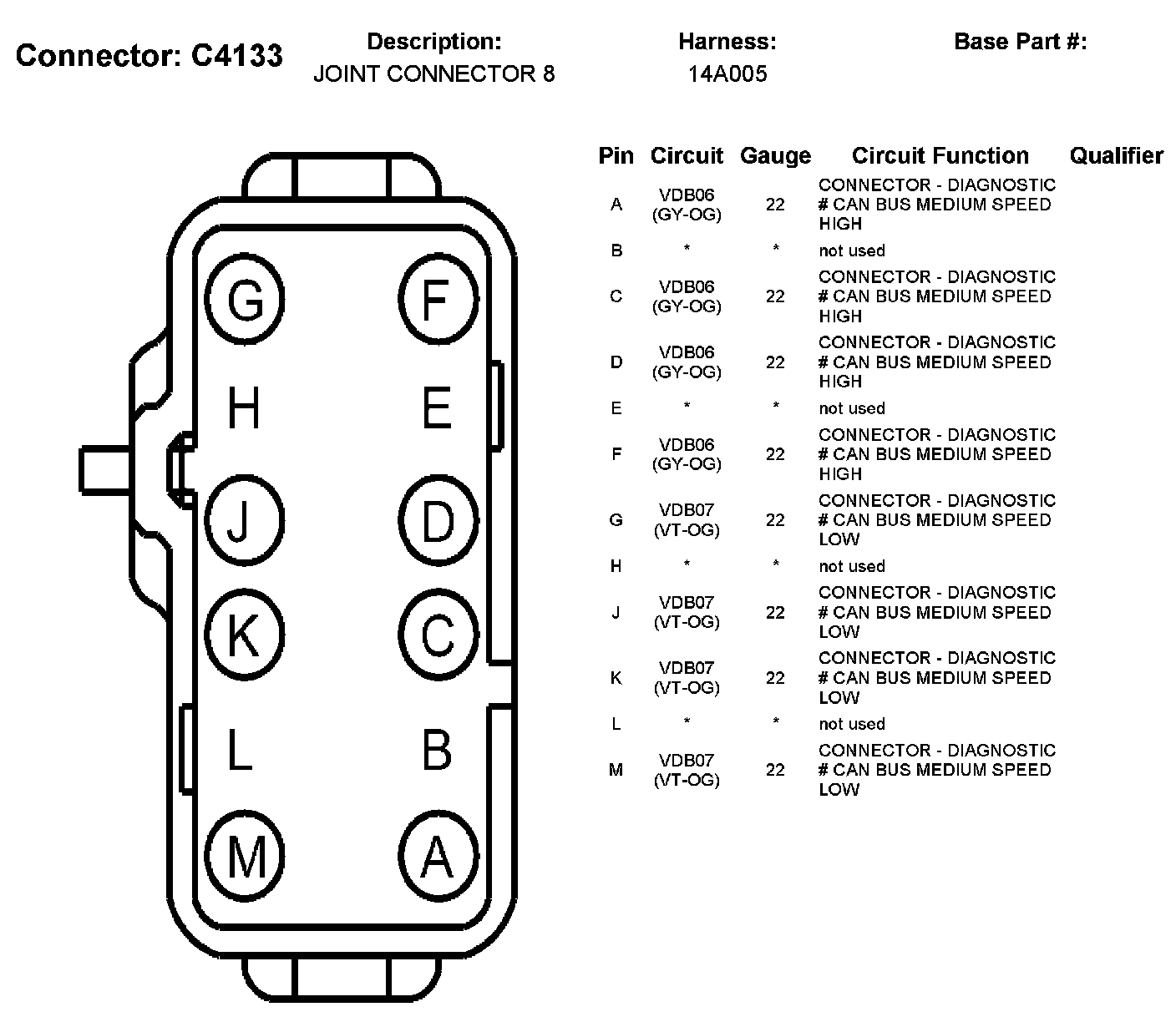

Joint Connector 8
C4133:
