Ford Truck
>>
2008
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

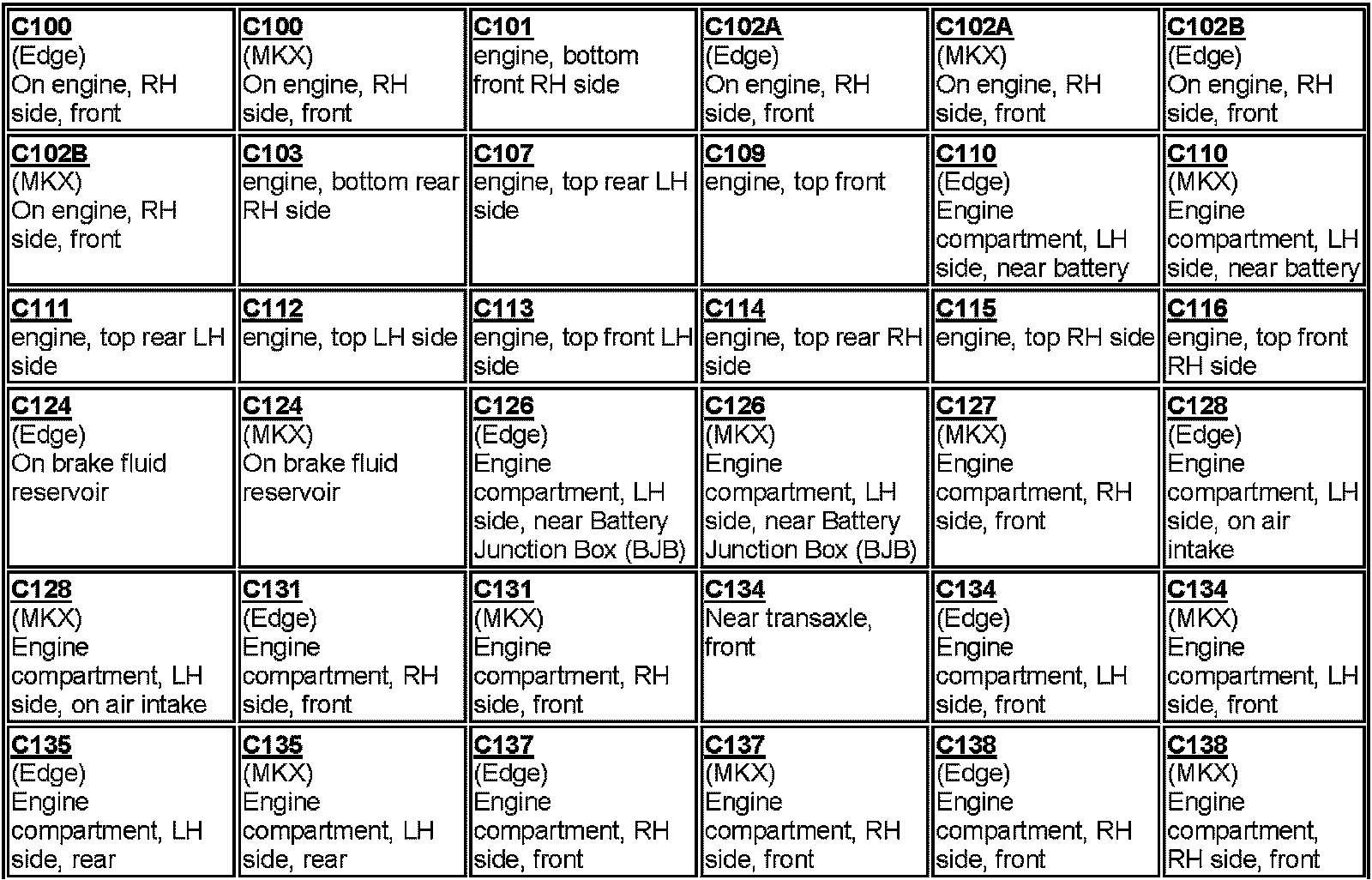

C100-C138:
C139-C197A:
C197B-C286:
C287-C382:

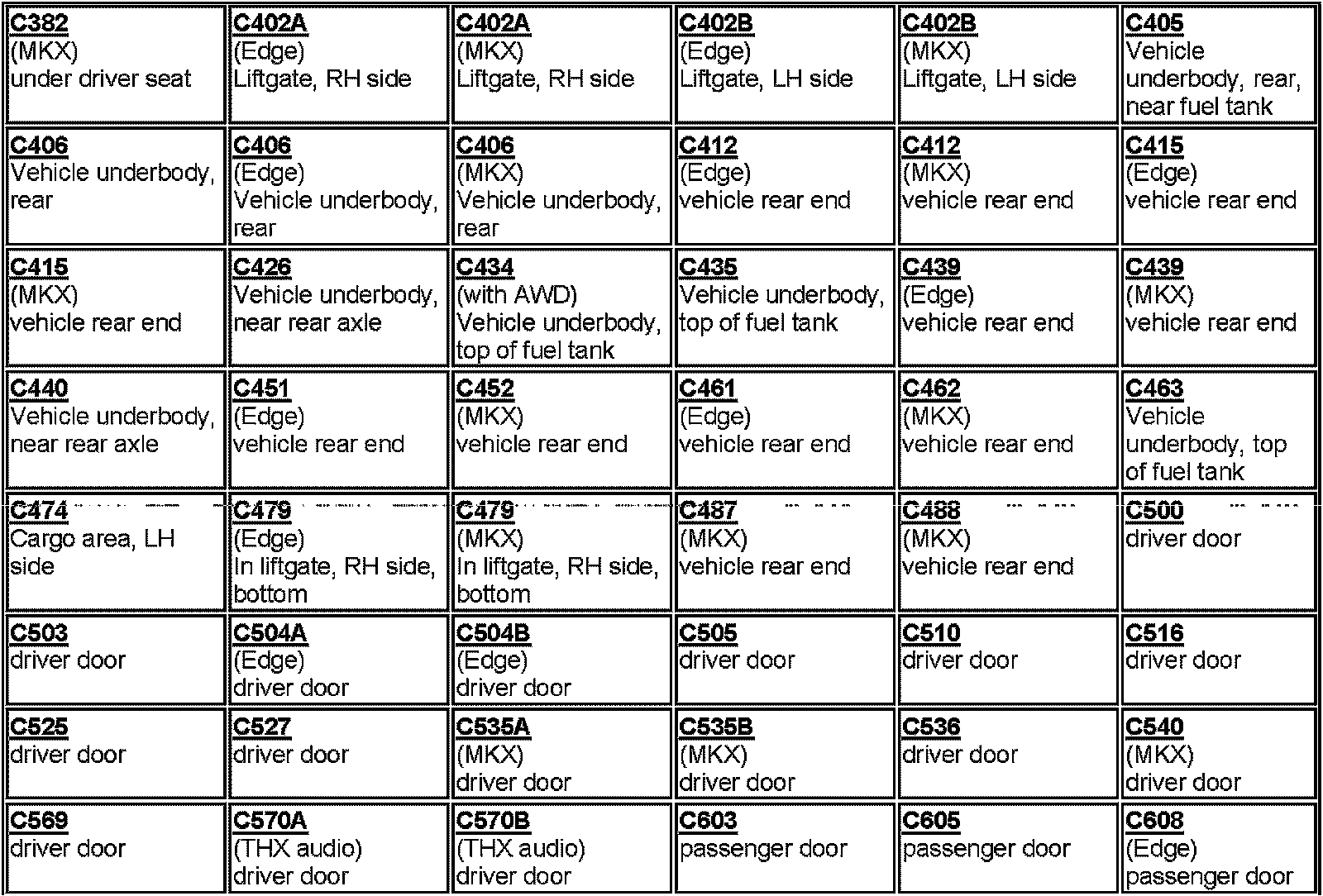

C382-C608:
C610-C949:
C1020-C1451:

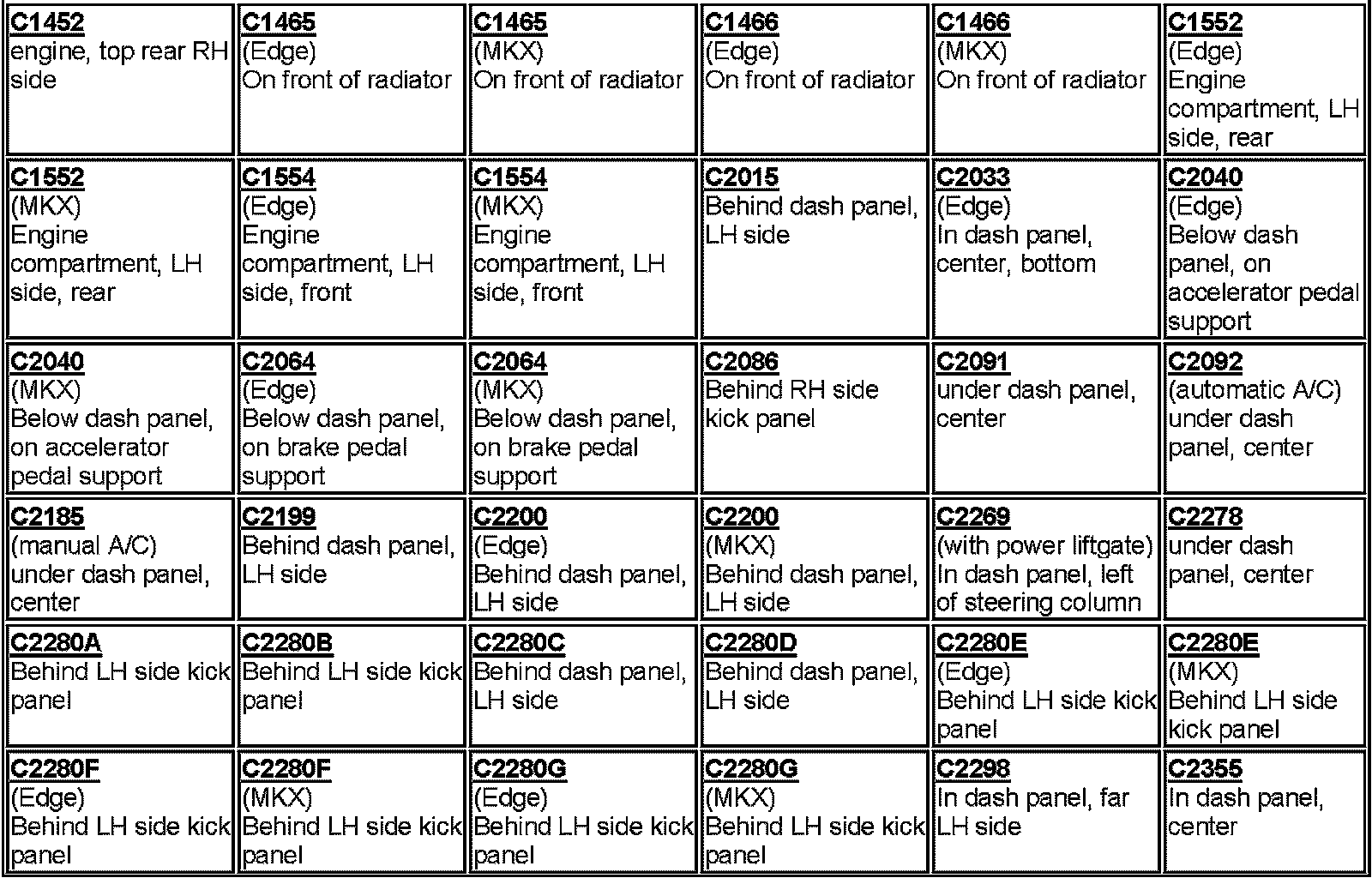

C1452-C2355:
C2357A-C3284:
C3284-C4014:
C4133-C9028:
