Instrument Cluster Finish Panel

INSTRUMENT CLUSTER FINISH PANEL

Exploded View

Edge Instrument Panel:

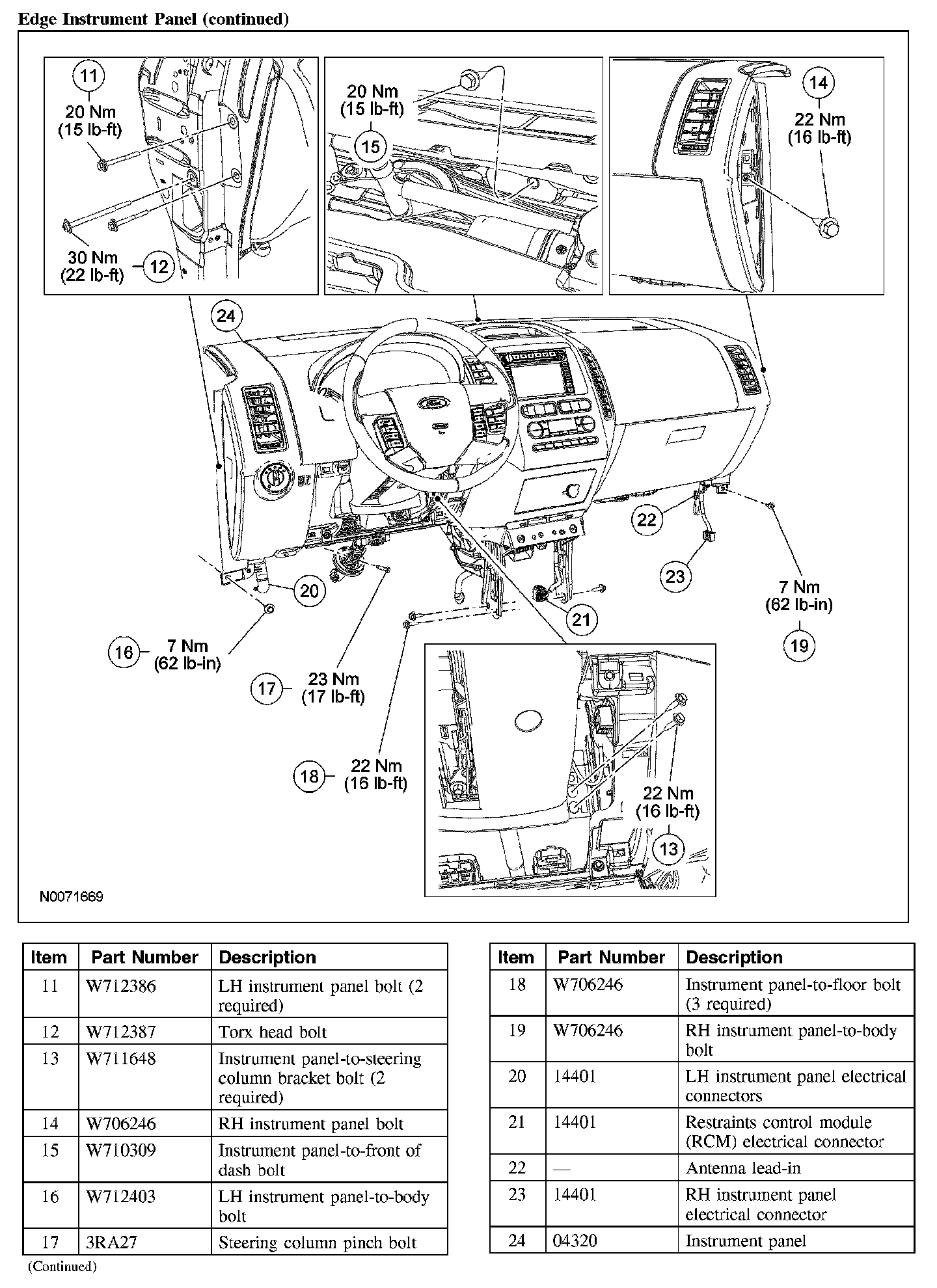

Edge Instrument Panel (Continued):

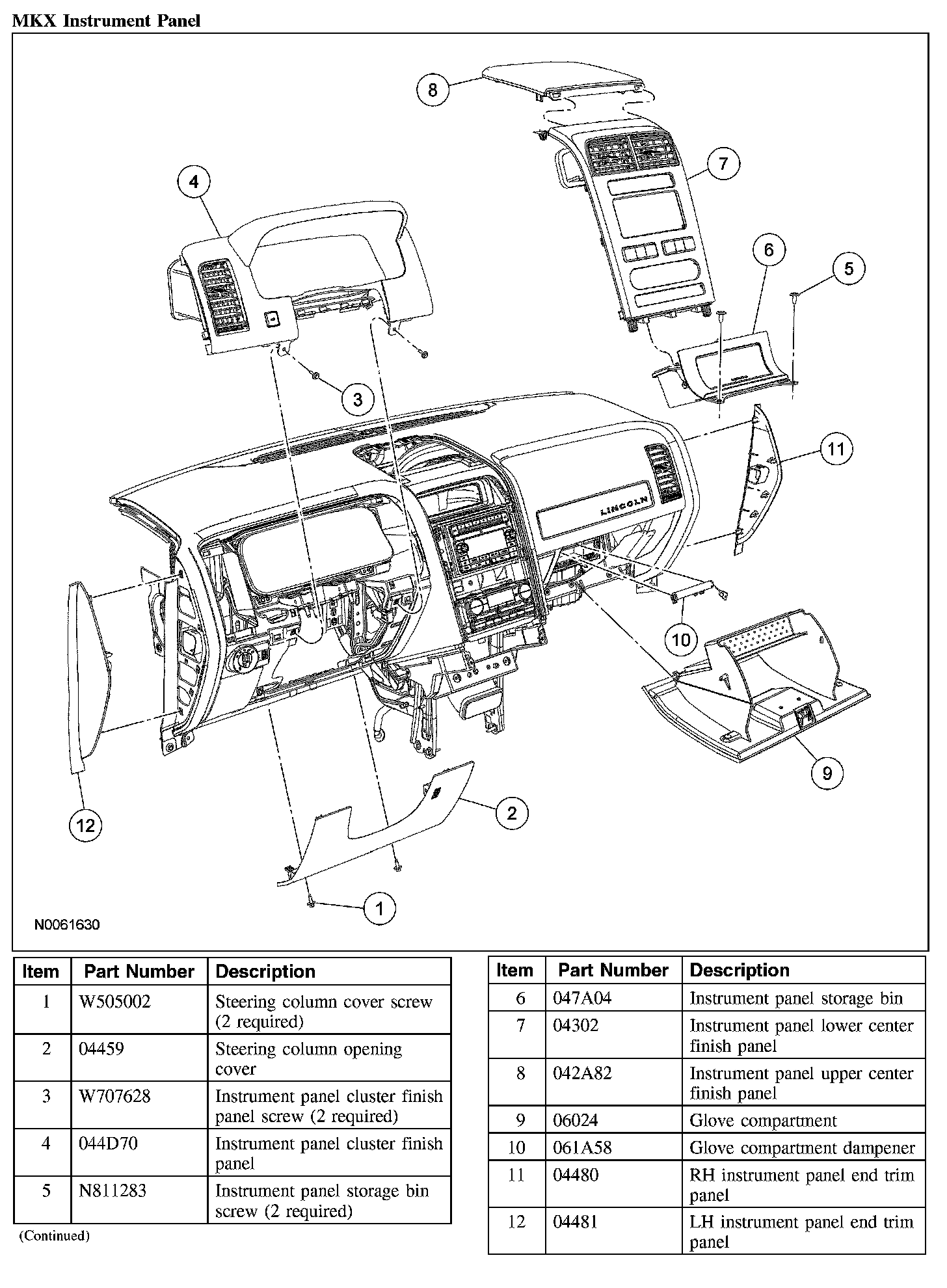

MKX Instrument Panel:

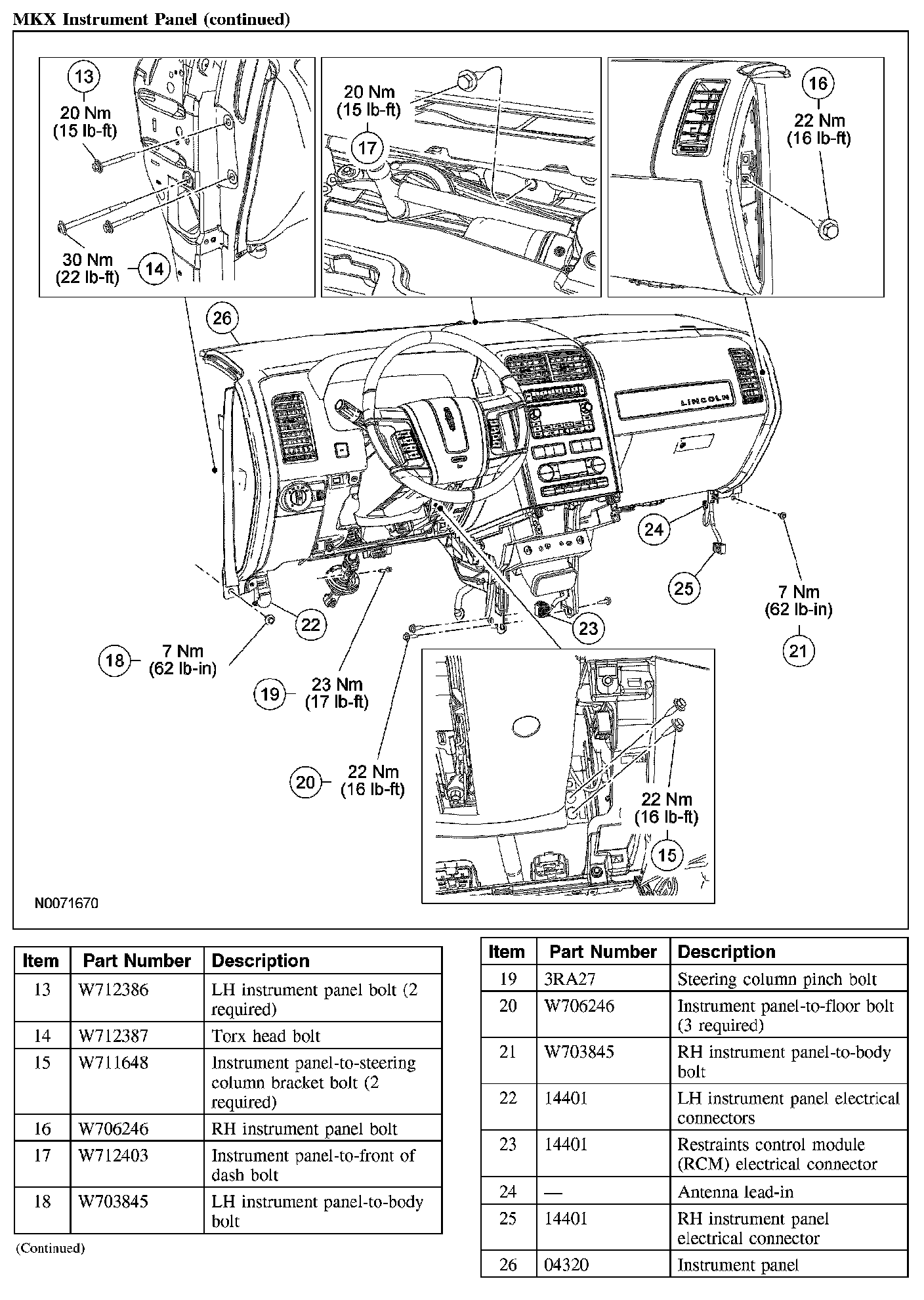

MKX Instrument Panel (Continued):

Removal and Installation

Edge only
1. Remove the upper instrument panel center finish panel.
- Using a suitable tool, gently pry out the upper center finish panel to disengage the clips.
- Remove the upper instrument panel center finish panel.
- Disconnect the electrical connectors.

All vehicles
2. Lower the steering column to the full down position.
3. Remove the steering column opening cover.
- Remove the 2 steering column opening cover screws.
- Disengage the steering column opening cover from the retainers.
- Disconnect the electrical connector and tube, if equipped.

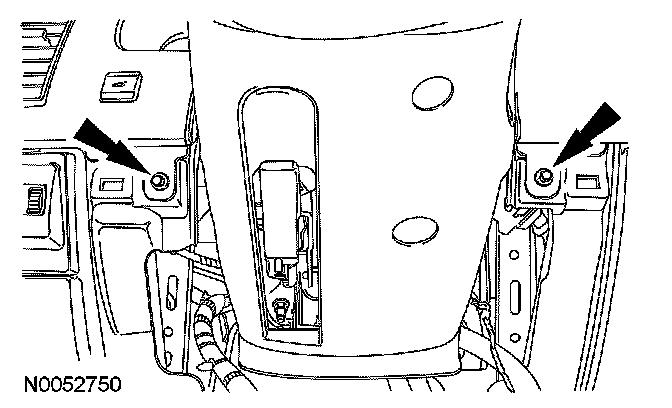

4. Remove the 2 cluster finish panel screws.







5. Disengage the instrument cluster finish panel from the retaining clips and remove the panel.
- Disconnect the electrical connectors, if equipped.

6. To install, reverse the removal procedure.
