Parking Brake Warning Switch: Service and Repair

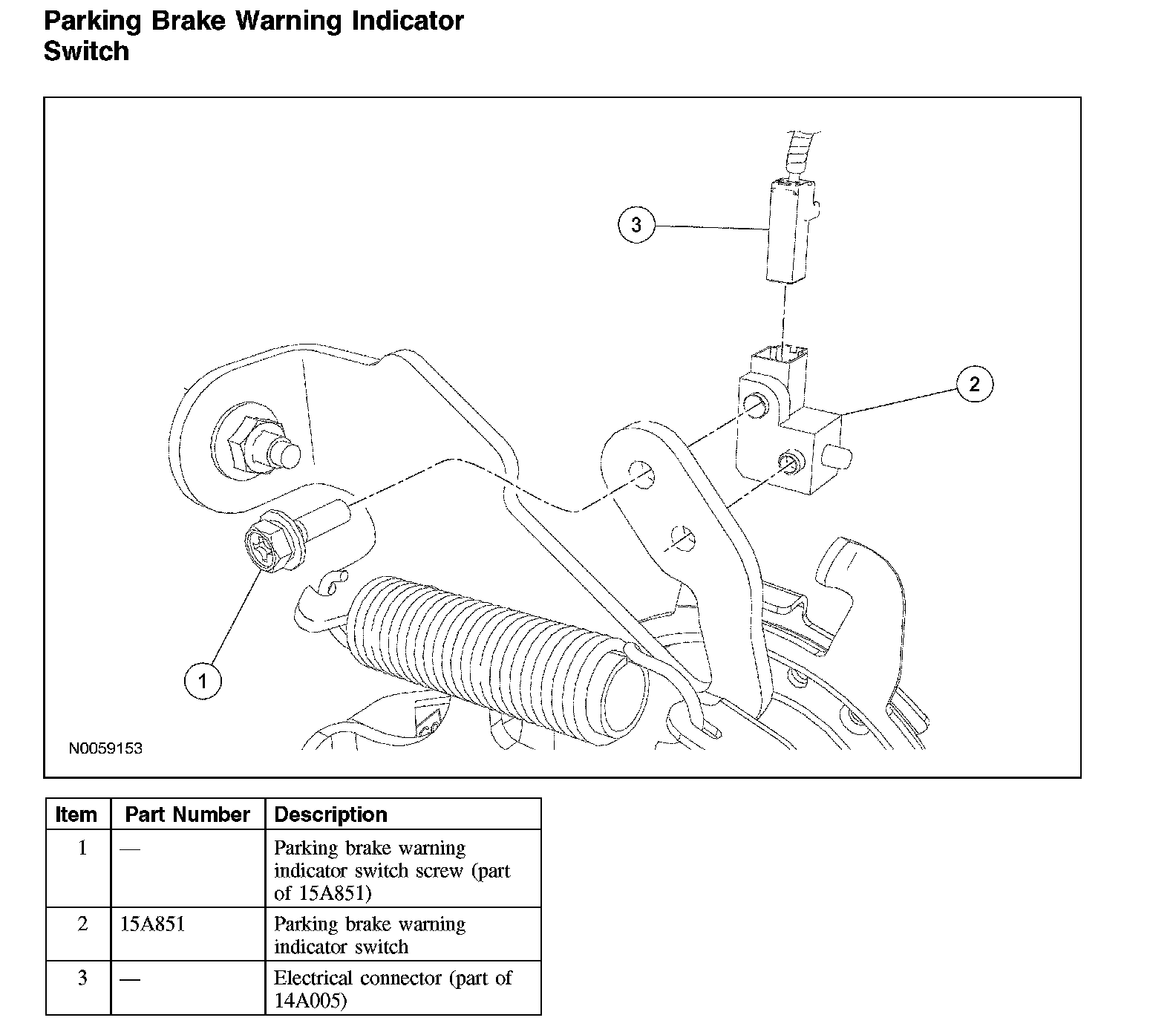

Parking Brake Warning Indicator Switch

Parking Brake Warning Indicator Switch:

Removal and Installation
1. Disconnect the parking brake warning indicator switch electrical connector.
2. Remove the parking brake warning indicator switch screw and the switch.
3. To install, reverse the removal procedure.
