Dome Lamp: Service and Repair
INTERIOR LAMPFront:
Rear:
Removal and Installation

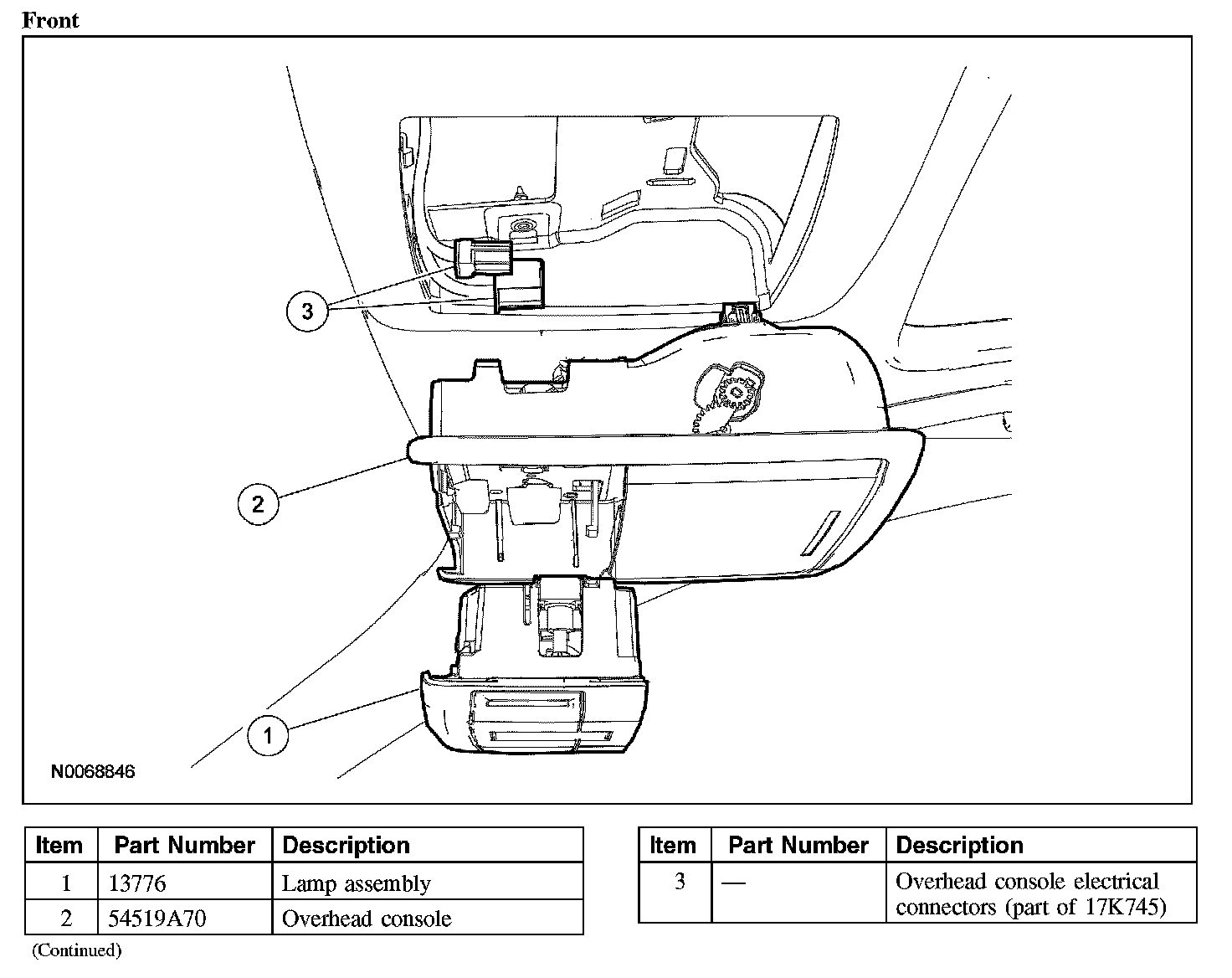

Front
1. NOTE: Do not pull down on the front of the overhead console.
Pull down on the rear of the overhead console to remove the overhead console from the retaining clips.
- Disconnect the electrical connectors.
2. Release the 4 retaining clips and remove the lamp assembly from the overhead console.
3. Release the 6 retaining clips and remove the lens from the lamp assembly.
- NOTE: The bulbs can be pushed out from the backside of the lamp assembly.
Replace the bulb(s) as necessary.

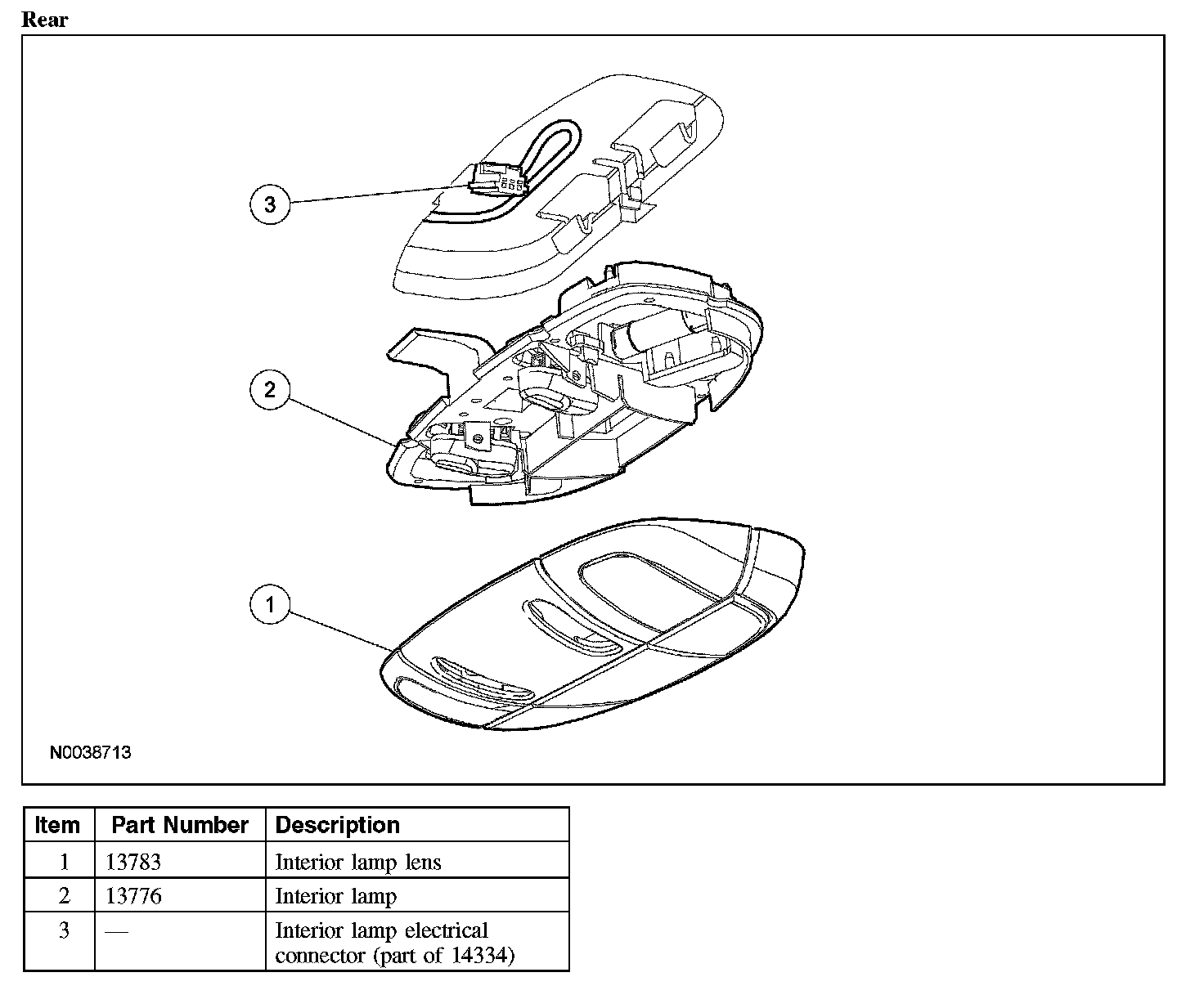

Rear

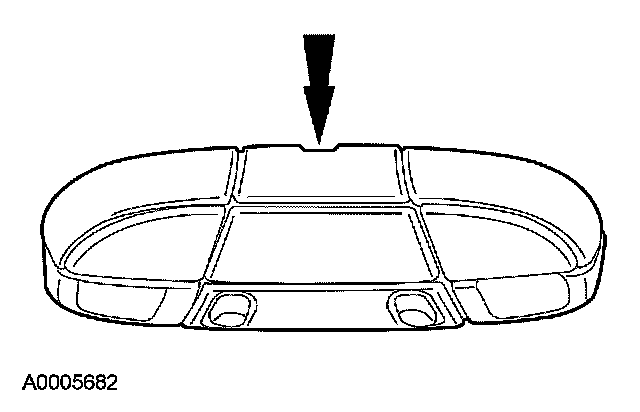

4. Remove the interior lamp lens.
5. Release the 2 retaining clips (through the access holes) and remove the interior lamp.
- Disconnect the electrical connector.
Any interior lamps
6. To install, reverse the removal procedure.
