Headlamp: Service and Repair

HEADLAMP ASSEMBLY







Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Remove the front bumper cover.

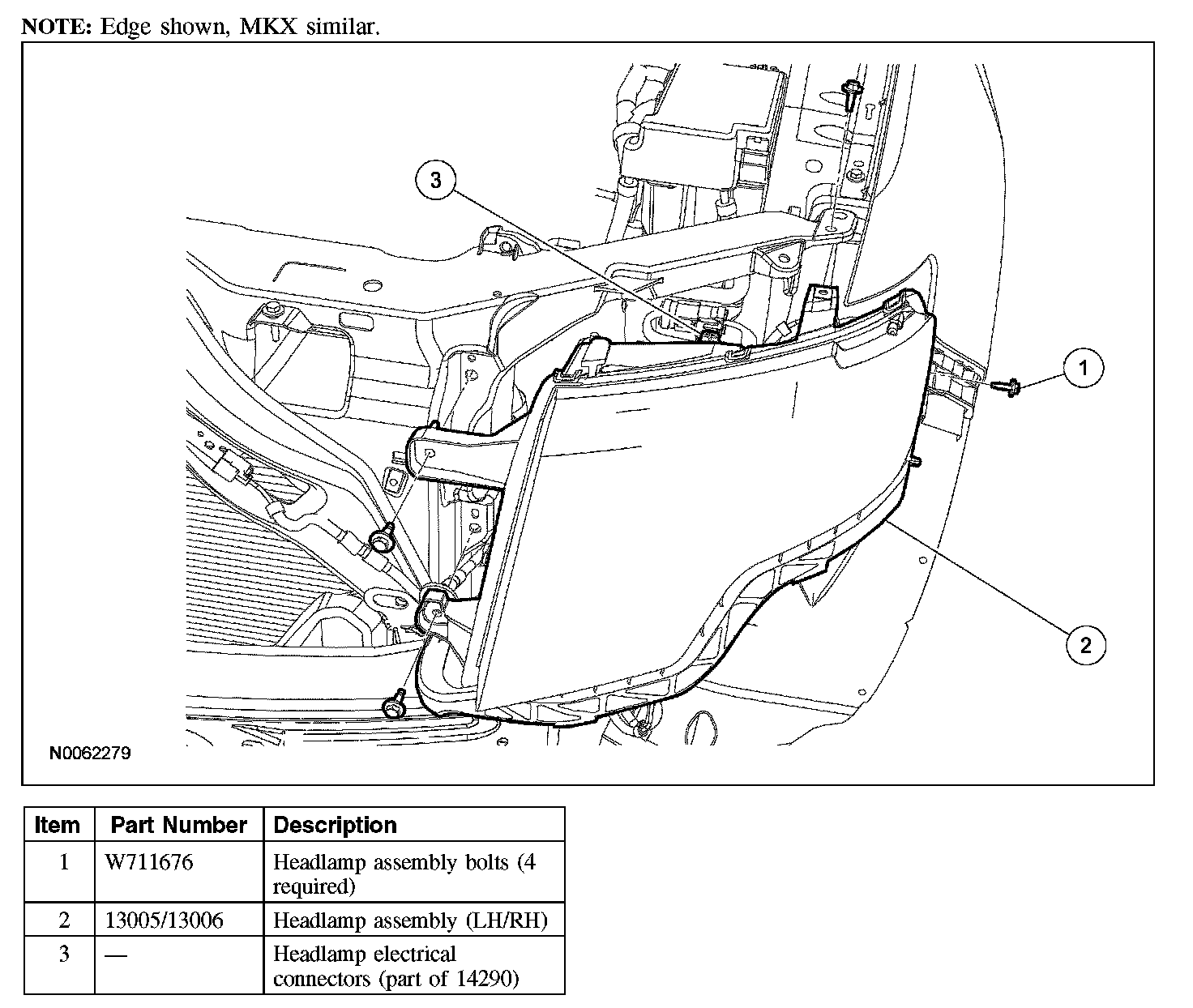

2. Remove the 4 bolts and the headlamp assembly.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
