Band, A/T

Clutch Application Chart

Clutch Application Chart:

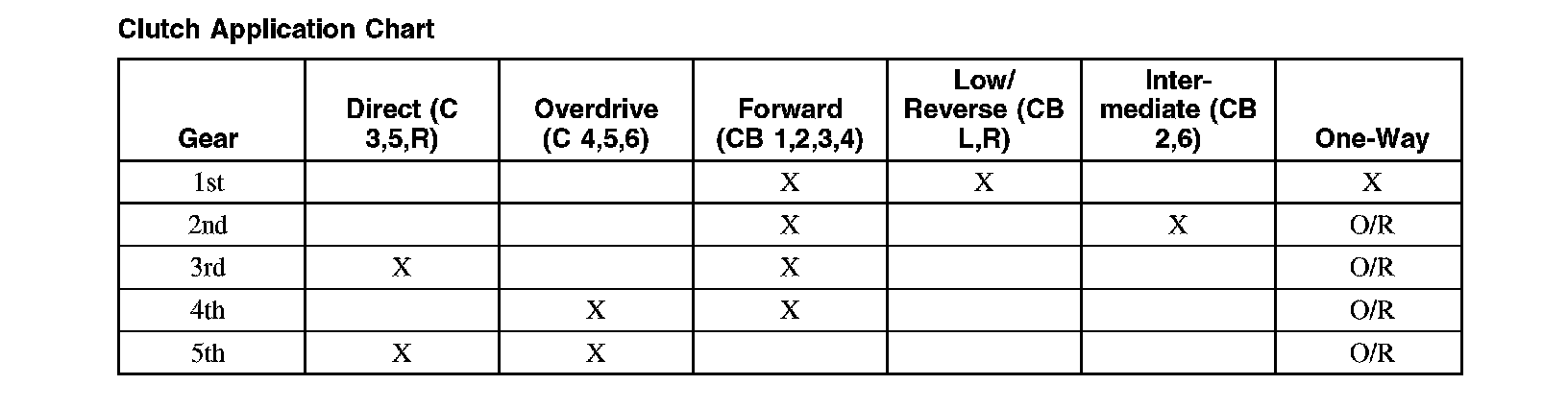

Clutch Application Chart (Part 1):

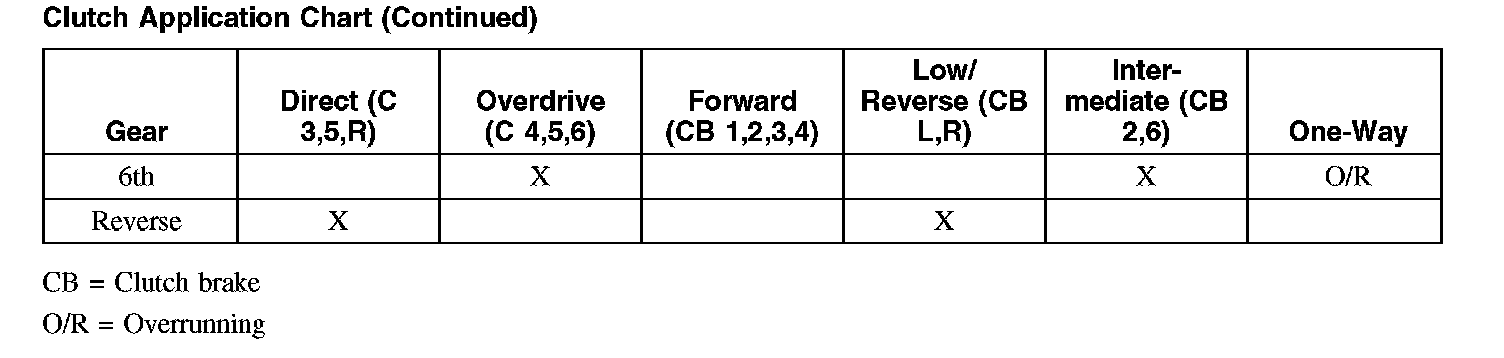

Clutch Application Chart (Part 2):
