Windshield Washer Reservoir: Service and Repair

WASHER RESERVOIR

Exploded View

Front Wiper System:

Rear Wiper System:

Washer System:

Removal and Installation
1. Remove the RH front fender splash shield.
2. Disconnect the washer pump electrical connector.

3. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. Failure to follow these instructions may result in serious personal injury.

NOTE: To prevent spilling windshield washer fluid, drain the washer reservoir before removal.

Disconnect the washer pump hoses.

4. Remove the bolt from the washer reservoir filler neck.
- To install, tighten to 7 Nm (62 lb-in).

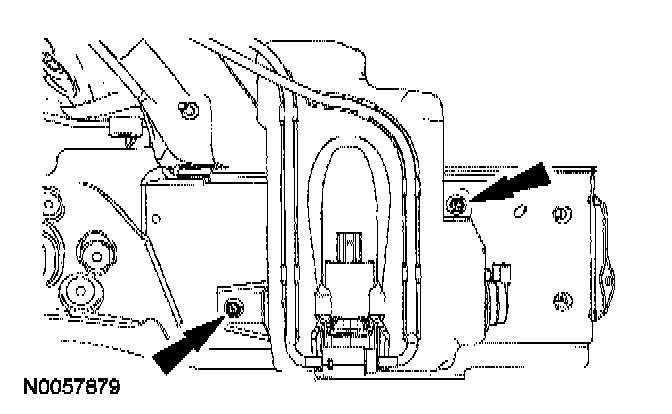

5. Remove the washer reservoir nuts and the washer reservoir.
- To install, tighten to 7 Nm (62 lb-in).







6. CAUTION: Do not operate the washer pump prior to filling the washer reservoir. Failure to follow this instruction may result in premature pump failure.

To install, reverse the removal procedure.
- Fill the washer reservoir with windshield washer fluid.
