Drive Belt

Accessory Drive Belt

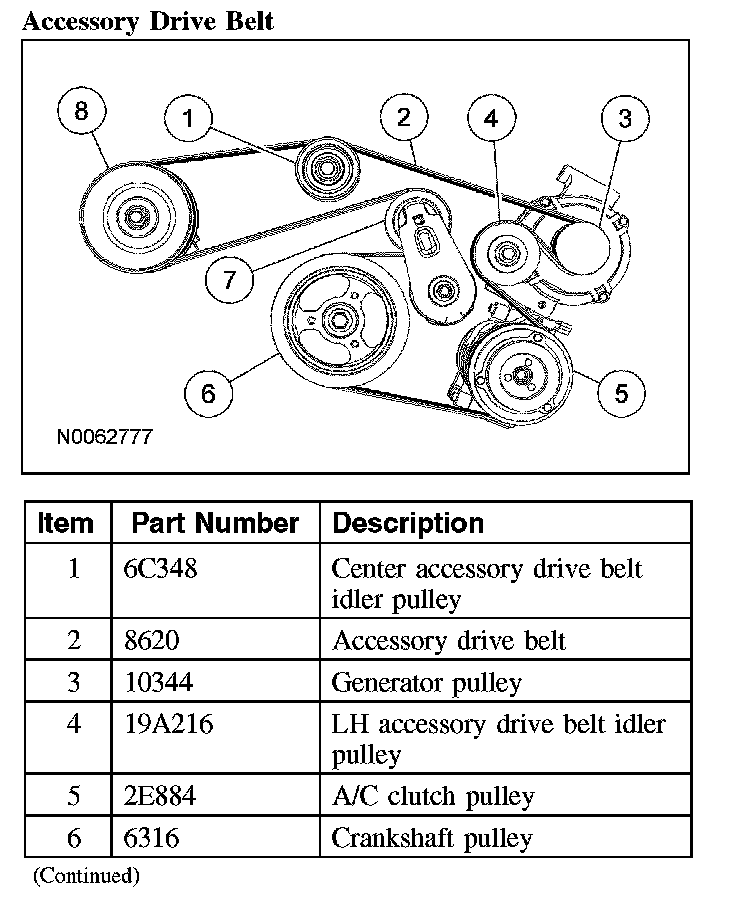

Accessory Drive Belt (Part 1):

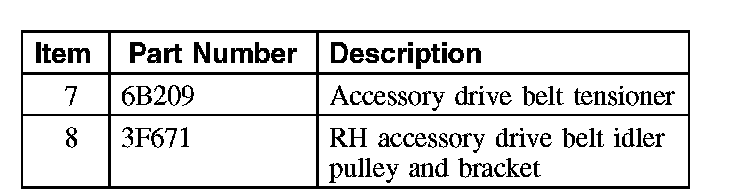

Accessory Drive Belt (Part 2):





Coolant Pump Drive Belt

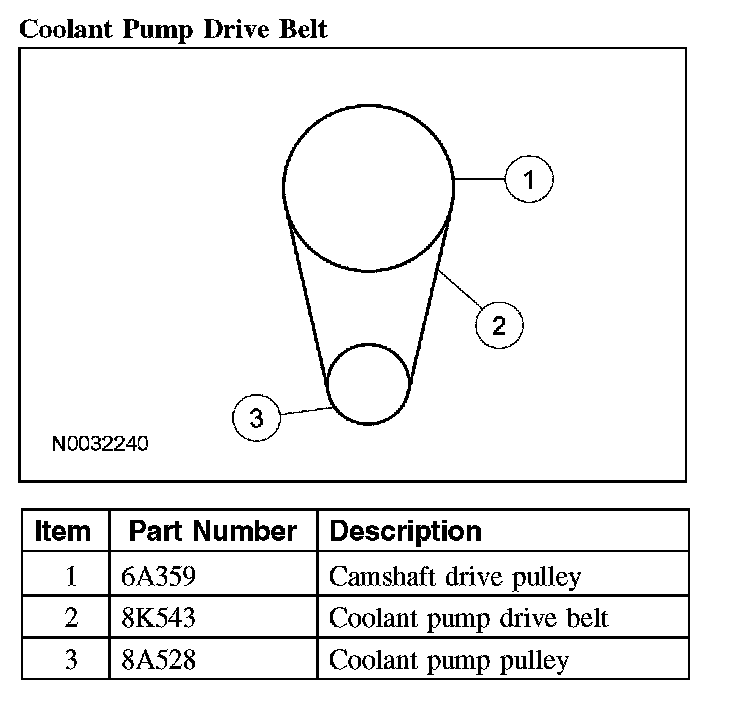

Coolant Pump Drive Belt:
