Windshield Washer Pump: Service and Repair
WASHER PUMPExploded View
Windshield Wipers:
Rear Wiper:

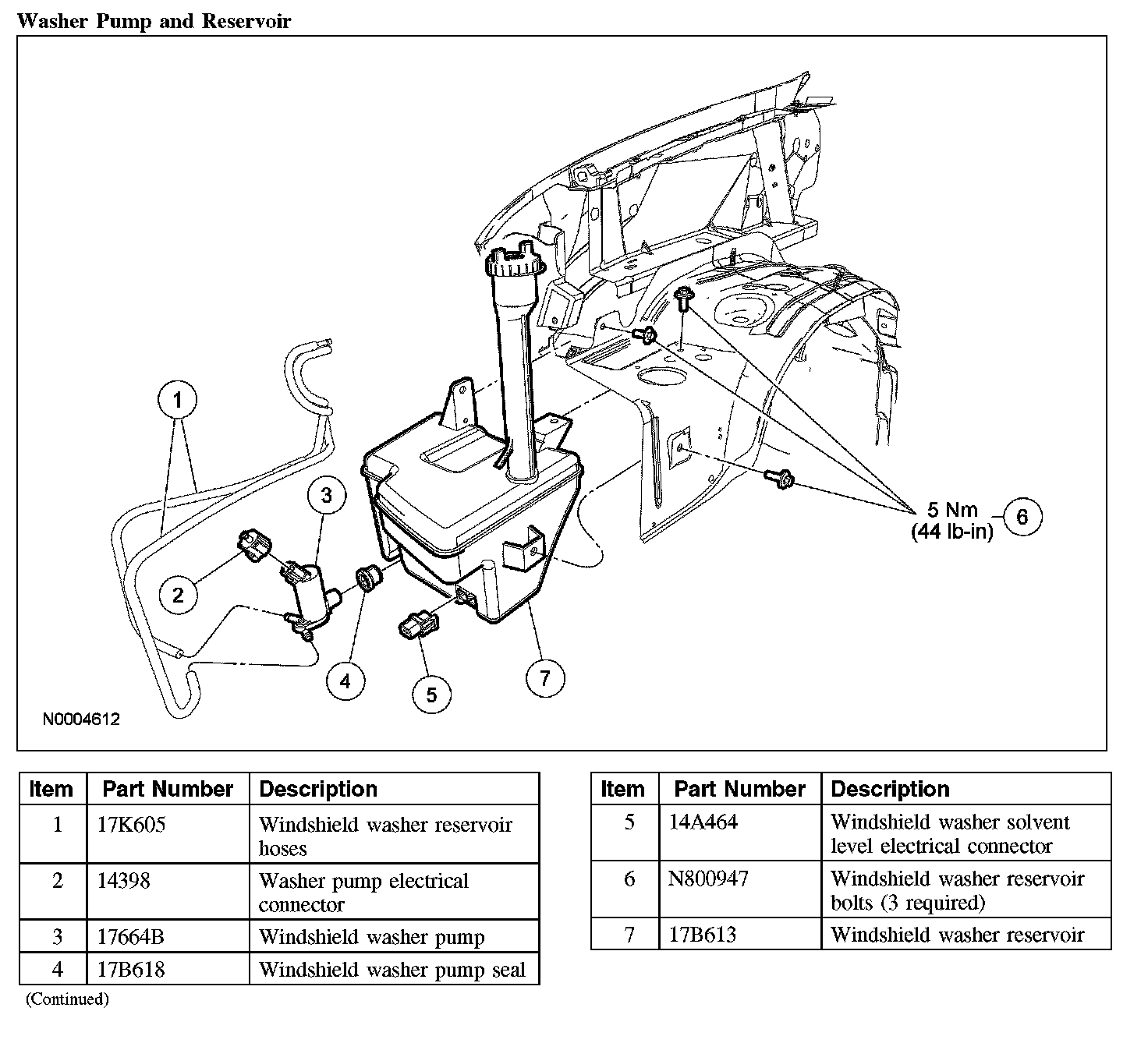

Washer Pump And Reservoir:
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the windshield washer pump electrical connector.
3. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. Failure to follow these instructions may result in serious personal injury.
NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer pump removal.
Disconnect the windshield washer reservoir hoses.
4. NOTE: When servicing the windshield washer pump, be careful not to damage the windshield washer pump seal.
Remove the windshield washer pump.
5. CAUTION: Do not operate the windshield washer pump before filling the windshield washer reservoir. Failure to do so could result in premature pump failure.
To install, reverse the removal procedure.
- Fill the windshield washer reservoir with windshield washer fluid.
