Windshield Washer Reservoir: Service and Repair

WASHER RESERVOIR

Exploded View

Windshield Wipers:

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation
1. Remove the air cleaner assembly.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Remove the RH front fender splash shield.
4. Disconnect the windshield washer pump electrical connector.







5. Disconnect the windshield washer solvent level electrical connector.







WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. Failure to follow these instructions may result in serious personal injury.

NOTE: If necessary, drain the windshield washer reservoir after removal.

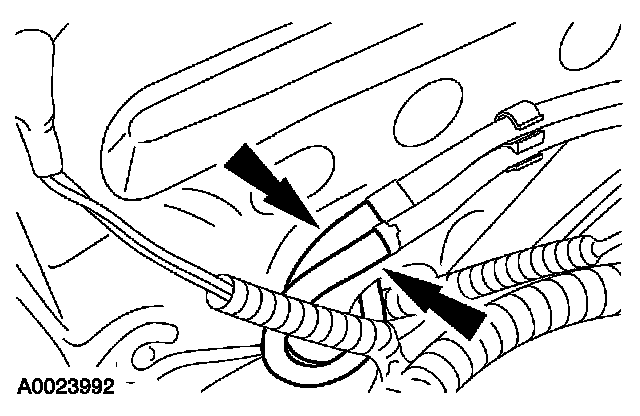

6. Disconnect the windshield washer reservoir hoses.

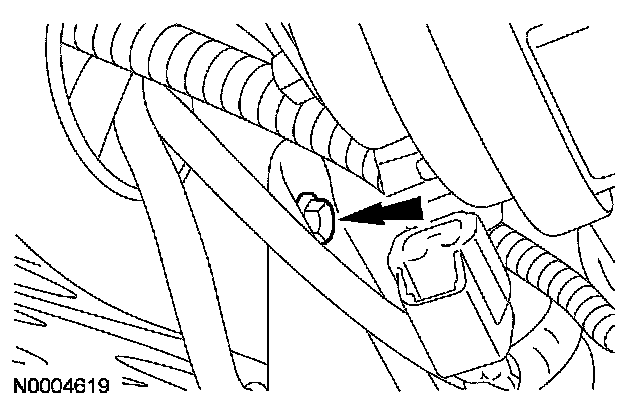

7. Remove the top bolt.
- To install, tighten to 5 Nm (44 lb-in).

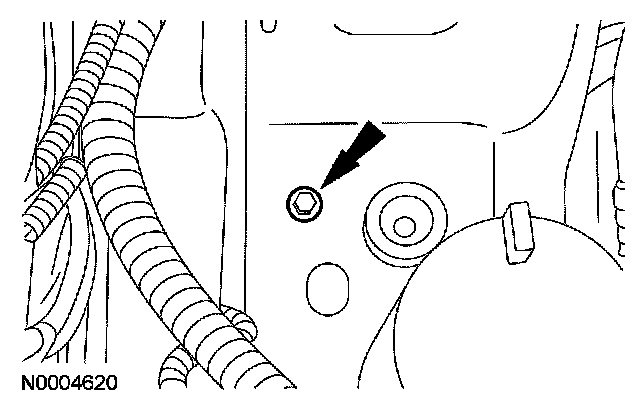

8. Remove the side bolt.
- To install, tighten to 5 Nm (44 lb-in).







9. Remove the bolt.
- To install, tighten to 5 Nm (44 lb-in).







10. Remove the windshield washer pump reservoir.

11. CAUTION: When servicing the windshield washer pump, be careful not to damage the windshield washer pump seal.

Transfer components as necessary.

12. CAUTION: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.
