Accessory Drive Belt Routing - With Single Generator




Accessory Drive

Accessory Drive Belt Routing

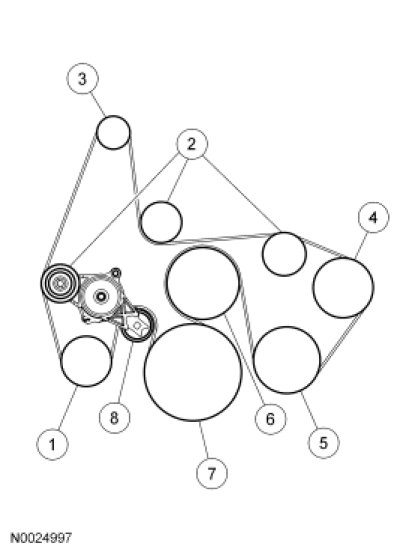

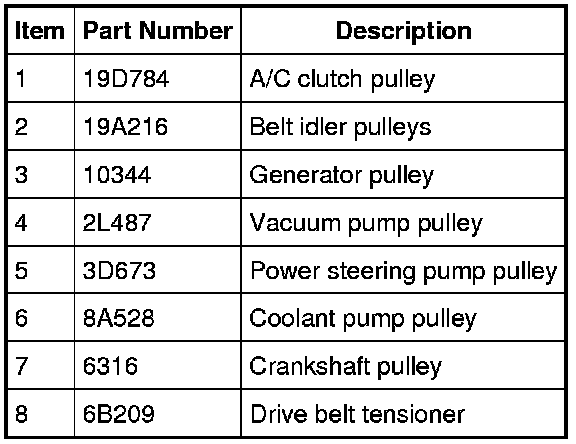

Accessory Drive Belt Routing - 6.0L Diesel With Single Generator
