Exhaust Manifold

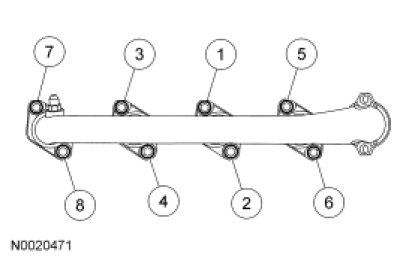

Install the LH exhaust manifold, 8 spacers and the 8 new bolts. Tighten in the sequence shown.
Tighten to 38 Nm (28 lb-ft).

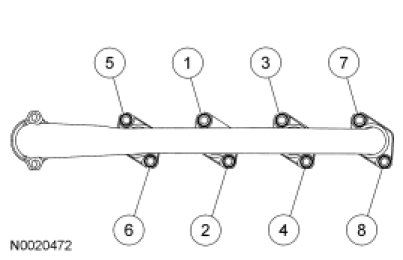

Install the RH exhaust manifold, 8 spacers and the 8 new bolts. Tighten in the sequence shown.
Tighten to 38 Nm (28 lb-ft).
