Exterior Moulding / Trim: Service and Repair

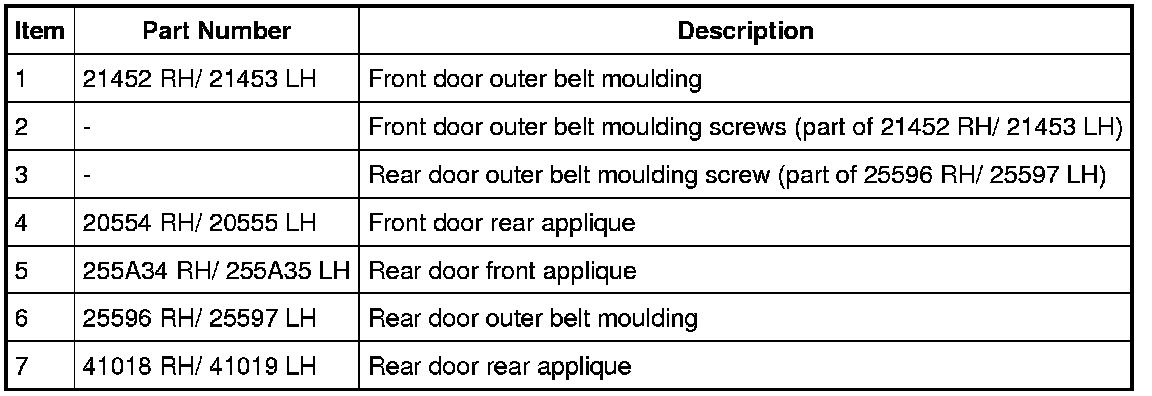

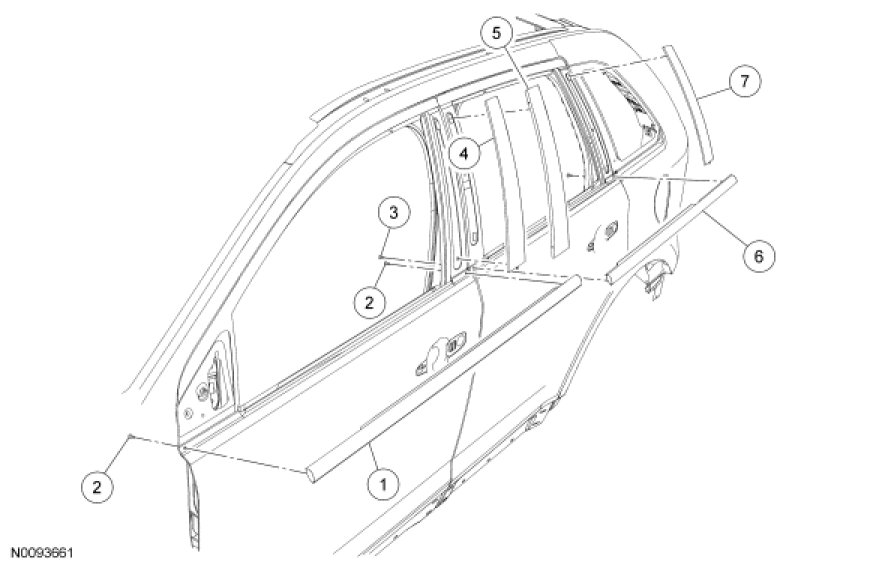

Exterior Trim - Exploded View

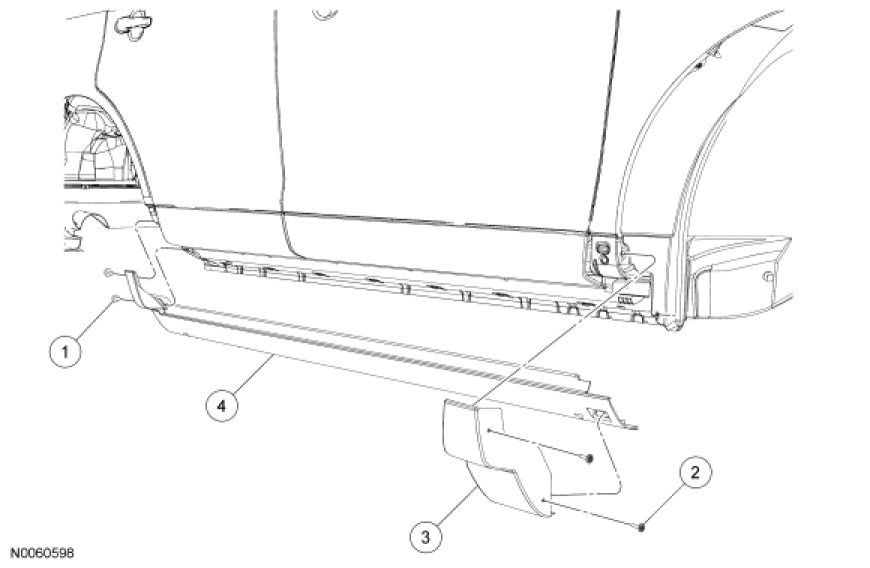

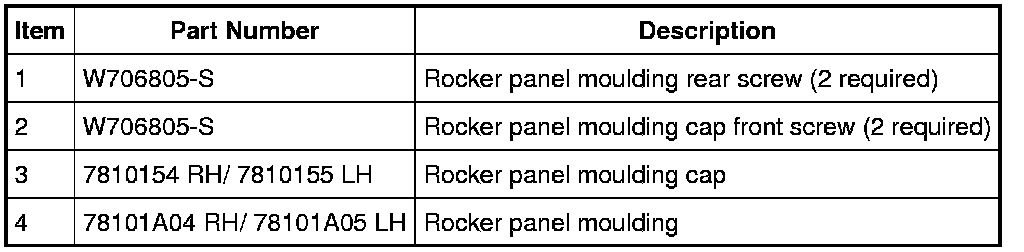

Body Side Trim

NOTE: Edge shown, MKX similar.










NOTE: RH shown, LH similar.










1. For additional information, refer to the procedures.
