Exterior Mirror

Exterior Mirror

Removal and Installation

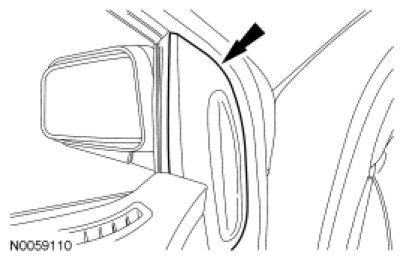

1. Remove the LH front door sail panel.

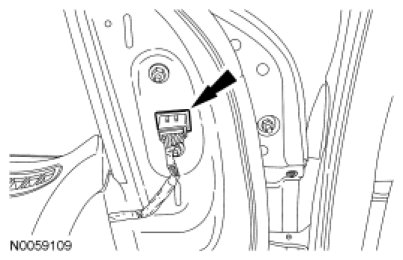

2. Disconnect the exterior mirror electrical connector.





3. Remove the 3 nuts and the exterior mirror.
- To install, tighten to 9 Nm (80 lb-in).





4. To install, reverse the removal procedure.
