Instrument Cluster Finish Panel

Instrument Cluster Finish Panel

Edge only

1. Remove the upper instrument panel center finish panel.
- Using a non-marring tool, gently pry out the upper center finish panel to disengage the clips.

- Remove the upper instrument panel center finish panel.

- Disconnect the electrical connectors.

All vehicles

2. Lower the steering column to the full down position.

3. Remove the steering column opening trim panel.

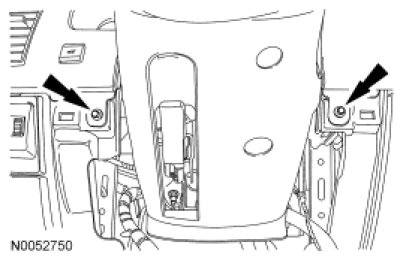

- Remove the 2 steering column opening trim panel screws.

- Disengage the steering column opening trim panel from the retainers.

- Disconnect the electrical connector and tube, if equipped.





4. Remove the 2 instrument cluster finish panel screws.





5. Disengage the instrument cluster finish panel from the retaining clips and remove the panel.
- Disconnect the electrical connectors, if equipped.

6. To install, reverse the removal procedure.
