Marker Lamp: Service and Repair

Side Marker Lamp - Front









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 screws and position the fender splash shield aside.

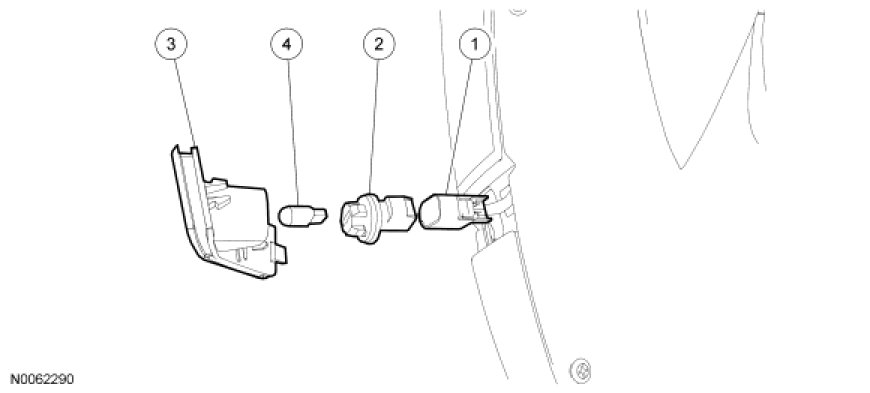

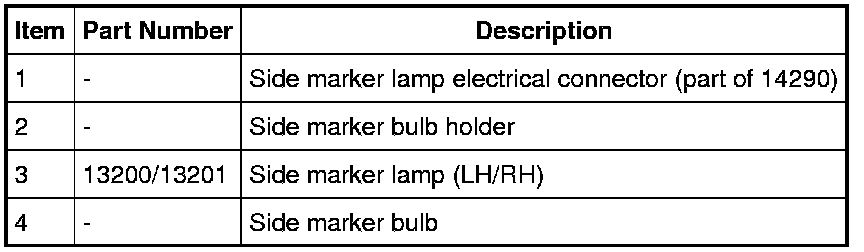

3. Release the tabs and remove the side marker lamp.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
