Body - Liftgate Spoiler Gasket Slippage
TSB 09-6-3REAR LIFTGATE SPOILER - FOAM GASKET SLIDING OUT
FORD:
2007-2009 Edge
LINCOLN:
2007-2009 MKX
ISSUE
Some 2007-2009 Edge and MKX vehicles may experience the foam gasket sliding out from under the rear lifigate spoiler. To repair this concern it will be necessary to replace the foam gasket.
ACTION
Follow Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Remove the rear spoiler following Workshop Manual (WSM), Section 501-08.
2. Apply masking tape along the edge of the spoiler next the original foam gasket material to protect the sur[ace finish of the spoiler from scratches.
3. Use 3MTM General Purpose Adhesive Cleaner to help soften the old foam gasket material making it easier to remove with a wood or plastic putty knife.
NOTE
CARE MUST BE TAKEN NOT TO SCRAPE THROUGH THE MASKING TAPE DAMAGING THE SPOILER SURFACE FINISH.
4. Once all the foam gasket material is clean from the sur[ace of the spoiler, proceed to remove protective masking tape.
5. Remove all remaining glue residue on the surface of the spoiler, using 3M(TM) General Purpose Adhesive Cleaner.
NOTE
TAKE CARE NOT TO DAMAGE THE SURFACE FINISH OF THE SPOILER.

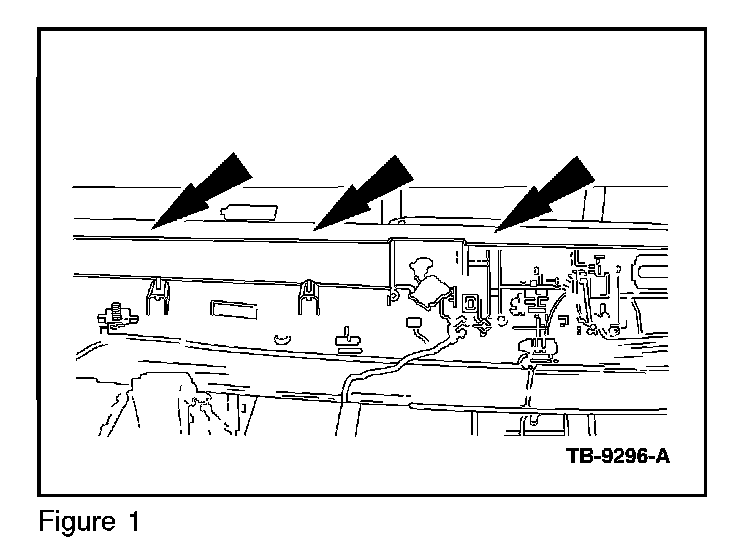

6. Apply 3MTM Automotive Adhesion Promoter along the entire sur[ace where the gaskets will be positioned. (Figure 1)
NOTE
TAKE CARE NOT TO ALLOW ANY 3M(TM) AUTOMOTIVE ADHESION PROMOTER TO COME INTO CONTACT WITH THE PAINTED SURFACE. IF IT DOES, WIPE IT OFF IMMEDIATELY.
7. Allow 3MTM Automotive Adhesion Promoter to cure for a minimum of 60 seconds. If the appearance or touch of the 3MTM Automotive Adhesion Promoter is still wet allow for additional time to cure.

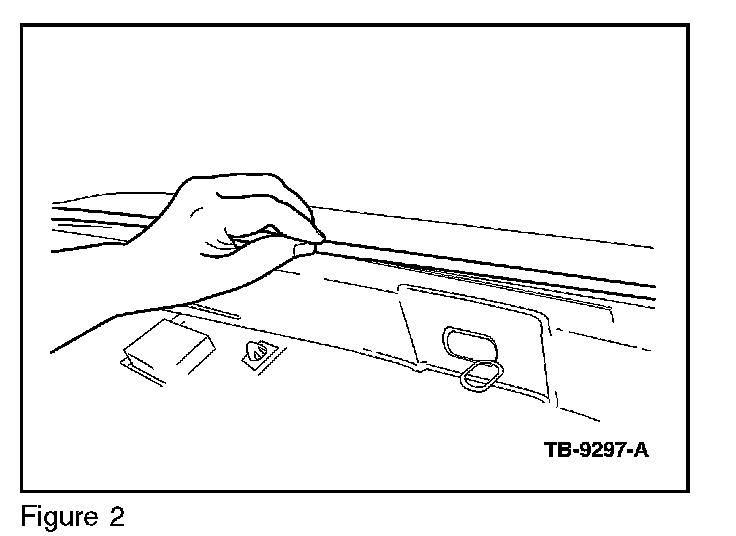

8. Apply foam strip along surface taking care that it is close to the rearward edge but not past it. (Figure 2)
9. Apply even pressure along entire foam strip, starting at one end and proceeding to the opposite end. Make sure to per[orm this action twice to ensure there is no air trapped between the gasket and spoiler. (Figure 2)
10. Install spoiler following (WSM), Section 501-08.

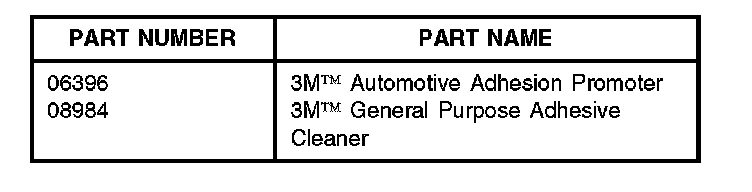

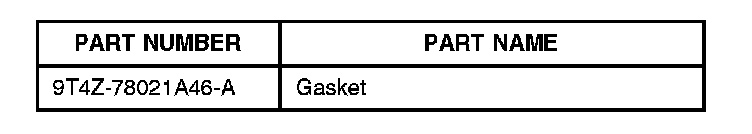

Parts Block
NOTE
OBTAIN THE FOLLOWING PARTS LOCALLY
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
090603A 2007-2009 Edge, MKX: 0.8 Hr.
Replace Foam Gasket,
Includes Time to Remove
And Install Spoiler (Do Not
Use With P49D)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7044210 33
