Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2009
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
Exploded Views
6F50
Transaxle

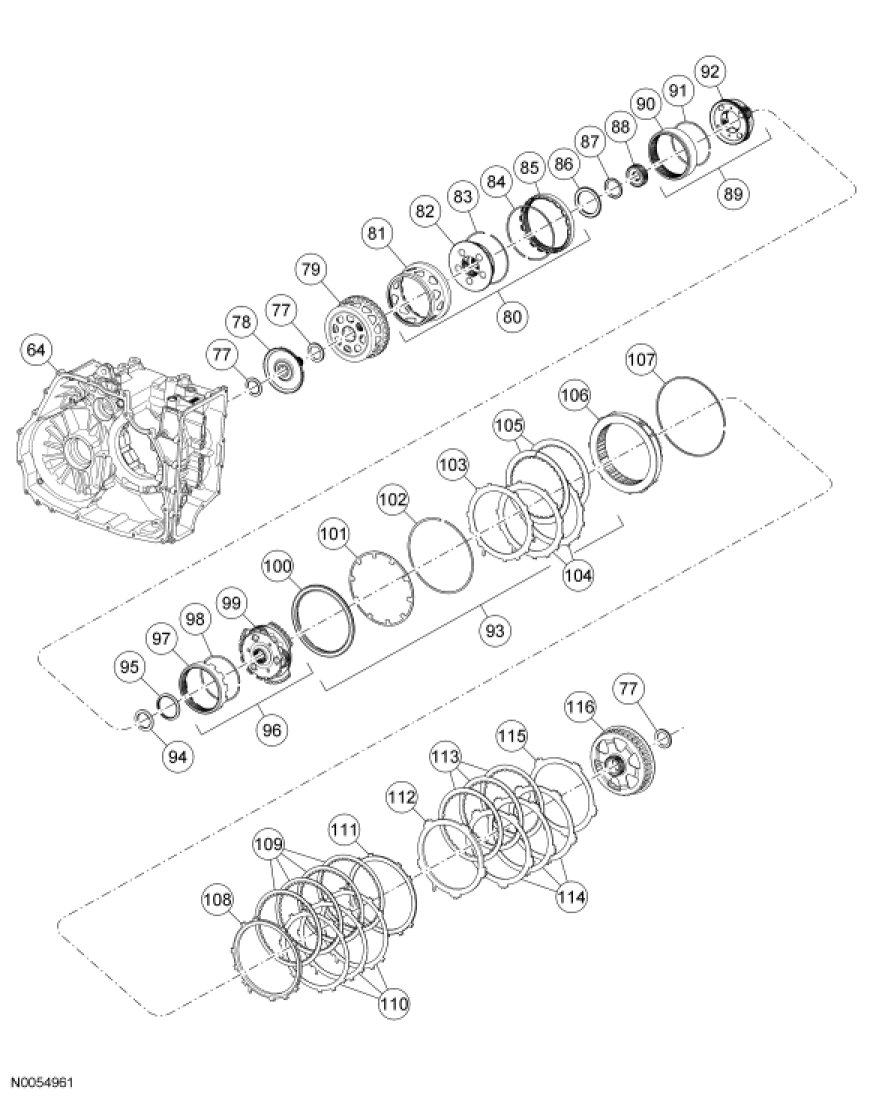

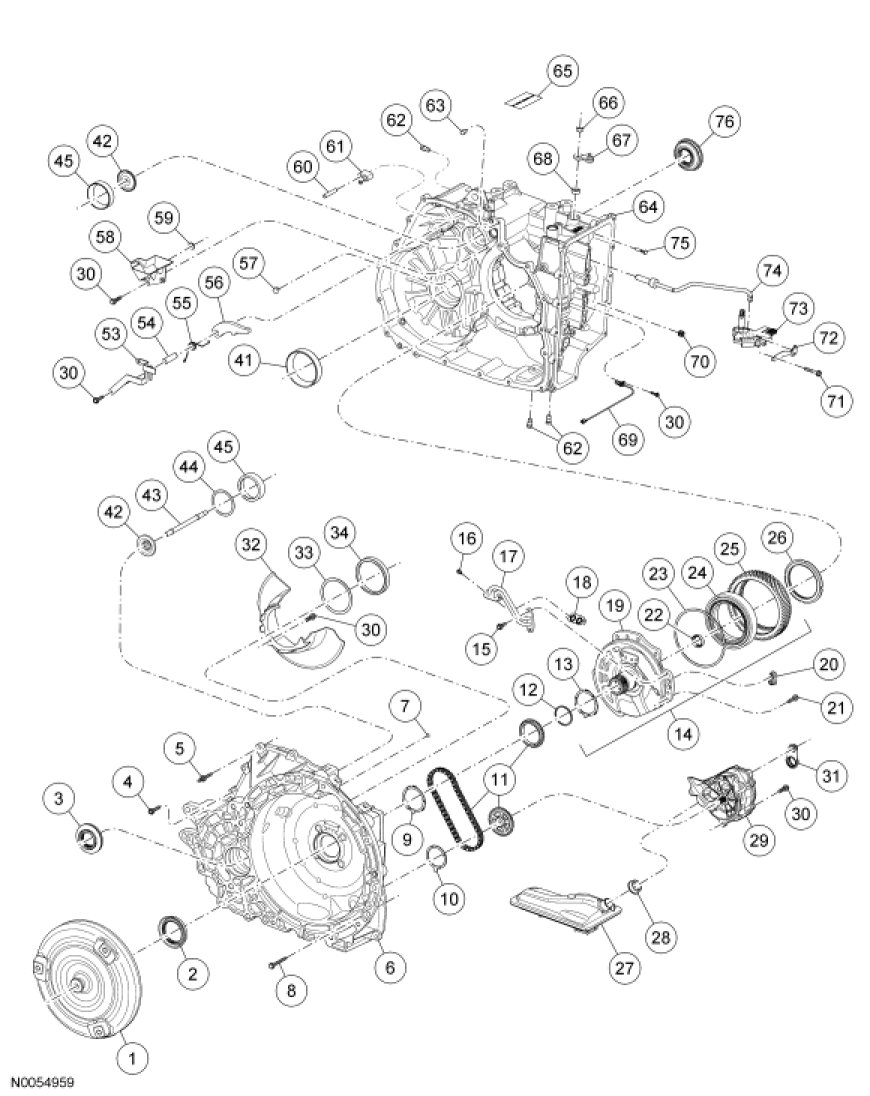

Disassembled Views
