Receiver Dryer: Service and Repair

Receiver Drier - 2.5L, 3.0L (4V)

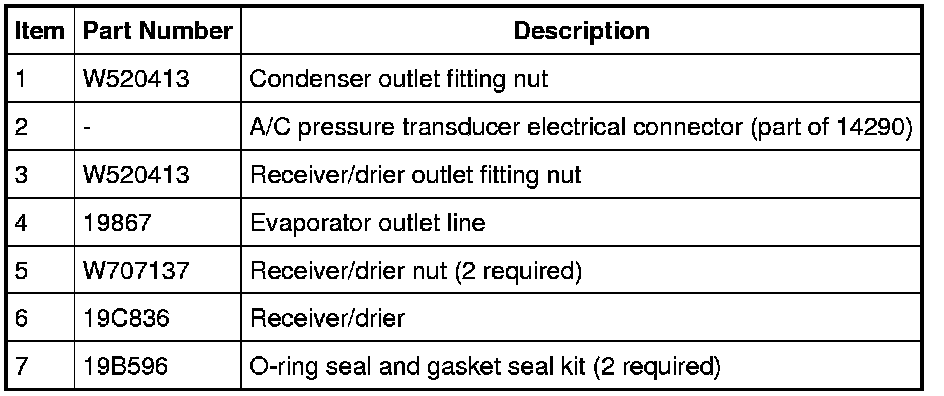

Removal and Installation

NOTE: The receiver/drier fitting studs can be removed and installed separately from the receiver/drier and are available as service parts. If only the fitting studs are damaged, it is not necessary to install a new receiver/drier.

NOTE: Installation of a new receiver/drier is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier. Damage to the receiver/drier includes leaks, physical damage to the receiver/drier shell or desiccant, or moisture contamination. Moisture contamination results only from a complete loss of refrigerant, and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the refrigerant system before repairs are carried out, a new receiver/drier should not be installed.

1. Recover the refrigerant.

2. Remove the front bumper cover.

3. Remove the condenser outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).

4. Disconnect the A/C pressure transducer electrical connector.

5. Remove the receiver/drier outlet fitting nut and disconnect the fitting.
- To install, tighten to 15 Nm (133 lb-in).

- Discard the O-ring seal and gasket seal.

6. Detach the evaporator outlet line from the receiver/drier bracket clip.

7. Remove the 2 receiver/drier nuts.
- To install, tighten to 8 Nm (71 lb-in).

8. Remove the receiver/drier.

9. To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.

- Lubricate the refrigerant system with the correct amount of clean PAG oil.

10. Evacuate, leak test and charge the refrigerant system.
