M/T - Premature Clutch Wear (Mexico Only)
TSB 09-18-4MANUAL TRANSMISSION CLUTCH WEAR - MEXICO
ONLY
FORD:
2009 Escape
ISSUE
Some 2009 Escape vehicles equipped with a manual transmission may exhibit excessive clutch wear within the first 14,913 miles (24,000 Km) due to unique customer driving conditions within Mexico. An updated clutch is now available to reduce this specific type of wear.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
Replace clutch with latest level service part. Refer to Workshop Manual (WSM), Section 308-01.

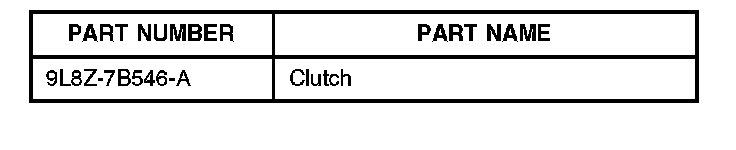

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
091804A 2009 Escape Replace 4.0 Hrs.
clutch (Do Not Use With
7003A And 7003A3)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7B546 42
