Removal and Replacement

Radiator and Cooling Fan - Exploded View

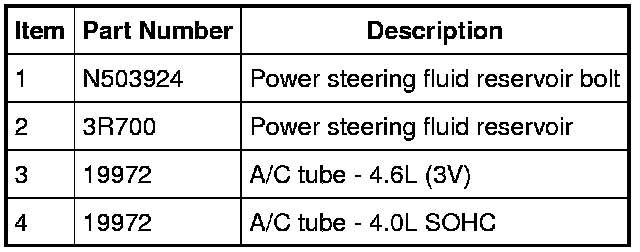

Power Steering Fluid Reservoir and A/C Tubes










Radiator Hoses and Transmission Fluid Tubes










Cooling Fan and Shroud










Radiator, Support Brackets and Seals

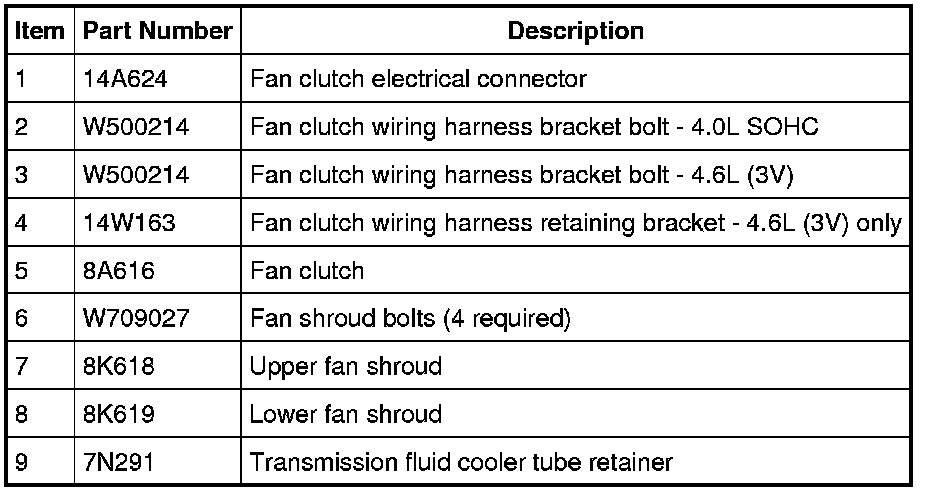

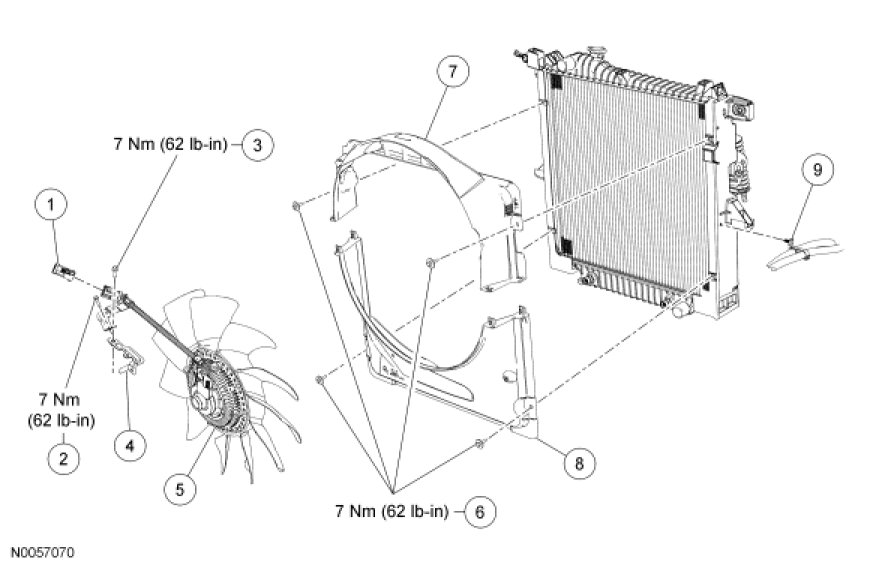

Cooling Fan and Electronic Fan Clutch









1. For additional information, refer to the procedures.
