Drive Belt: Diagrams




Accessory Drive Belt Routing

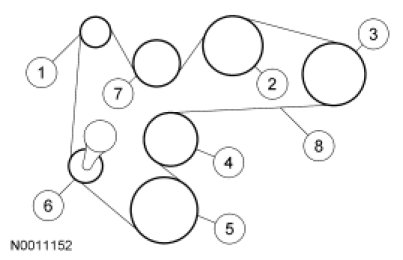

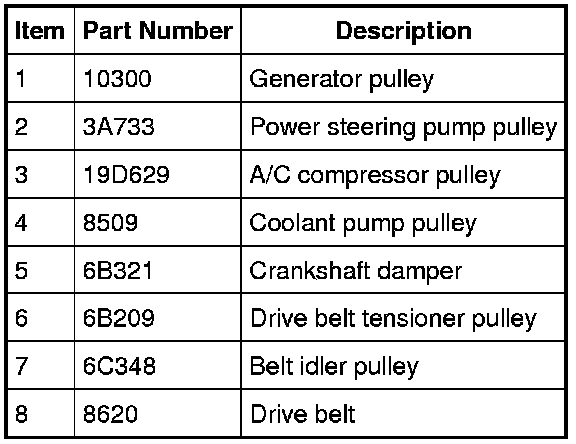

Front End Accessory Drive (FEAD) - 4.0L SOHC

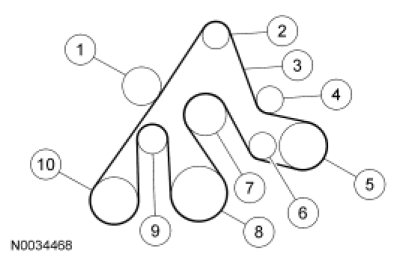

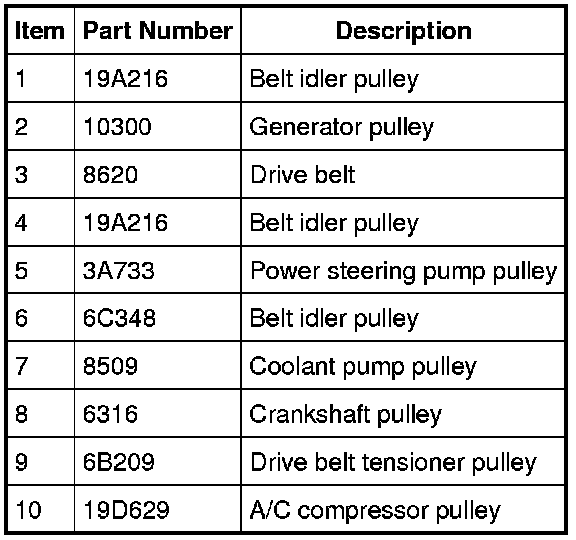

Front End Accessory Drive (FEAD) - 4.6L (3V)
