Exterior Moulding / Trim: Service and Repair

Exterior Trim - Exploded View

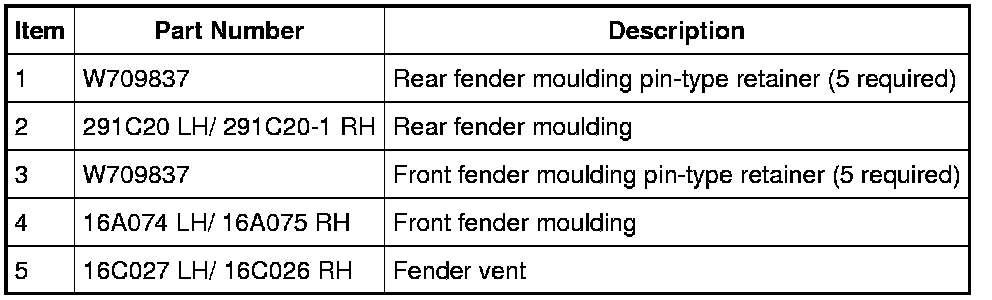

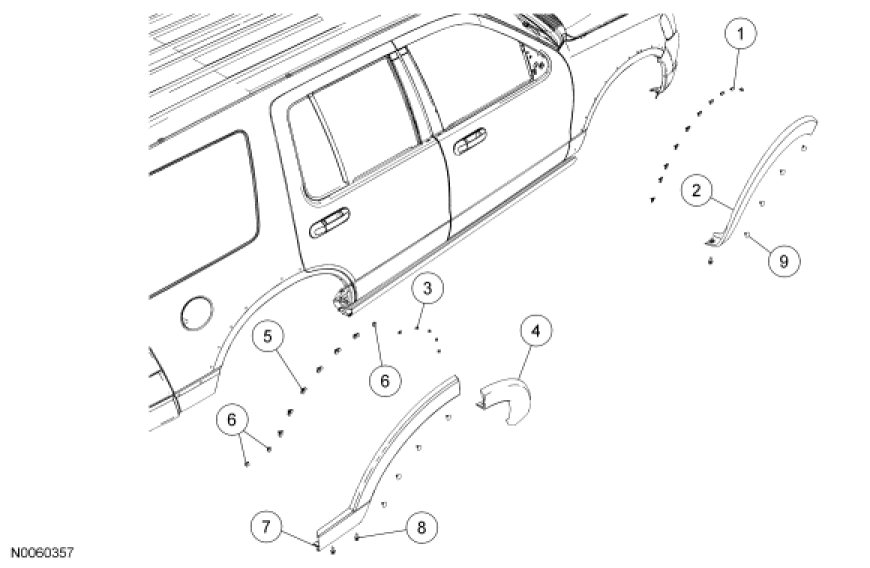

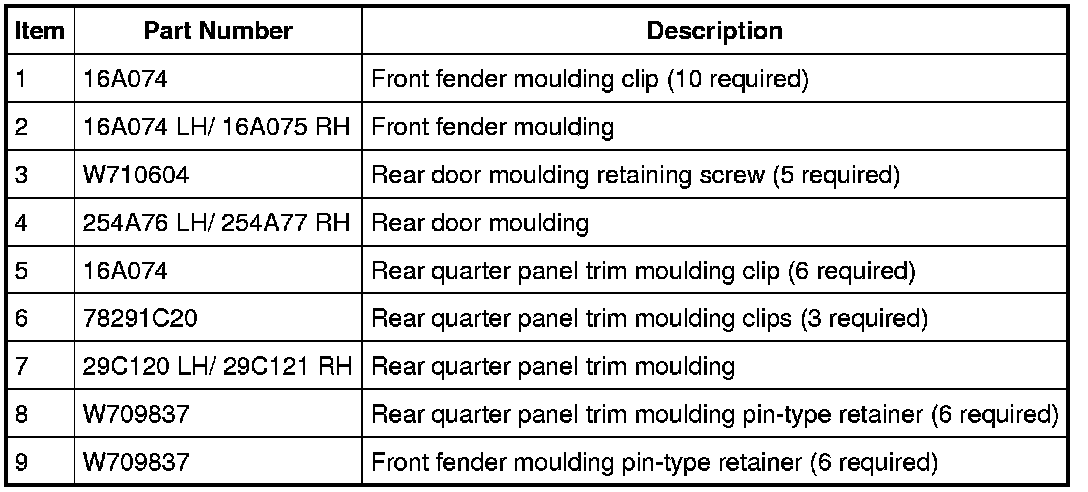

Exterior Moulding - All Explorer and Mountaineer Vehicles

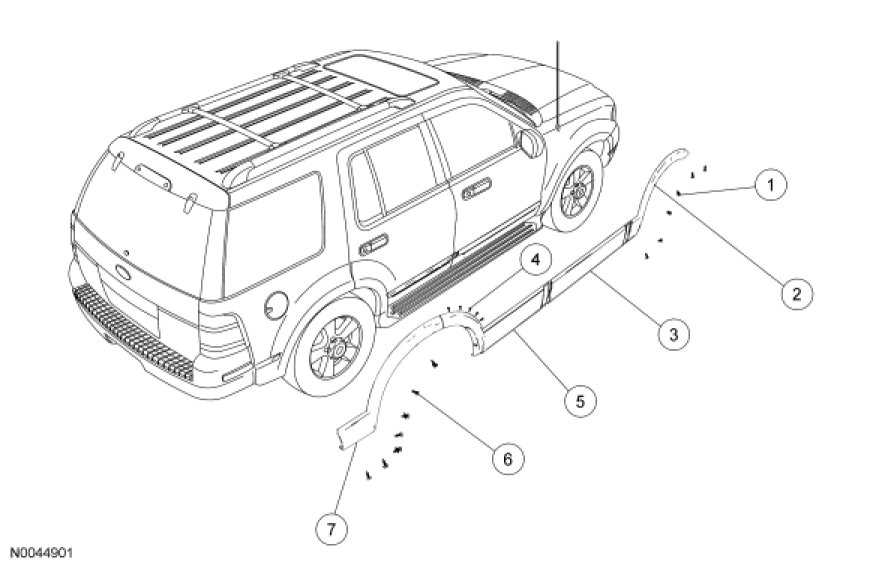

NOTE: Explorer XLT shown.

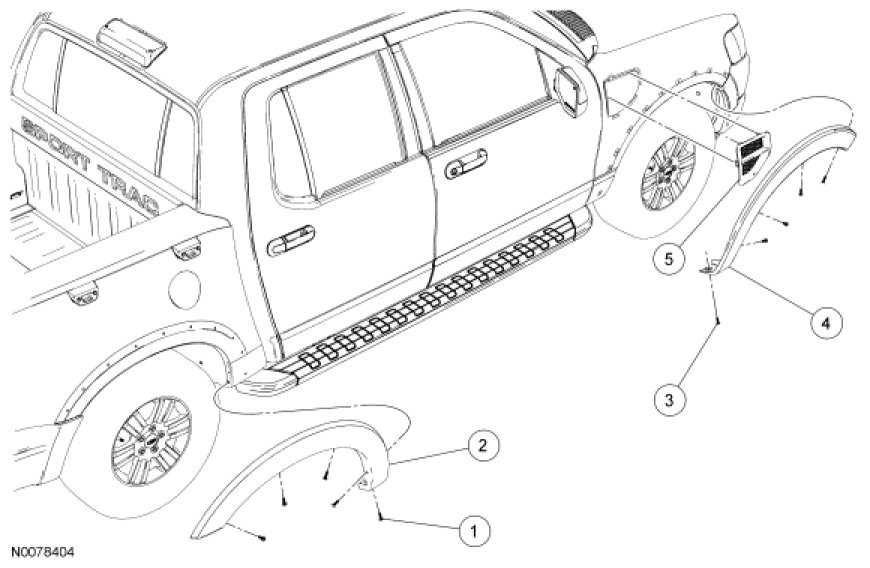

Exterior Moulding - Explorer Sport Trac









1. For additional information, refer to the procedures.
