Home >> Ford Truck >> 2009 >> Explorer 4WD V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

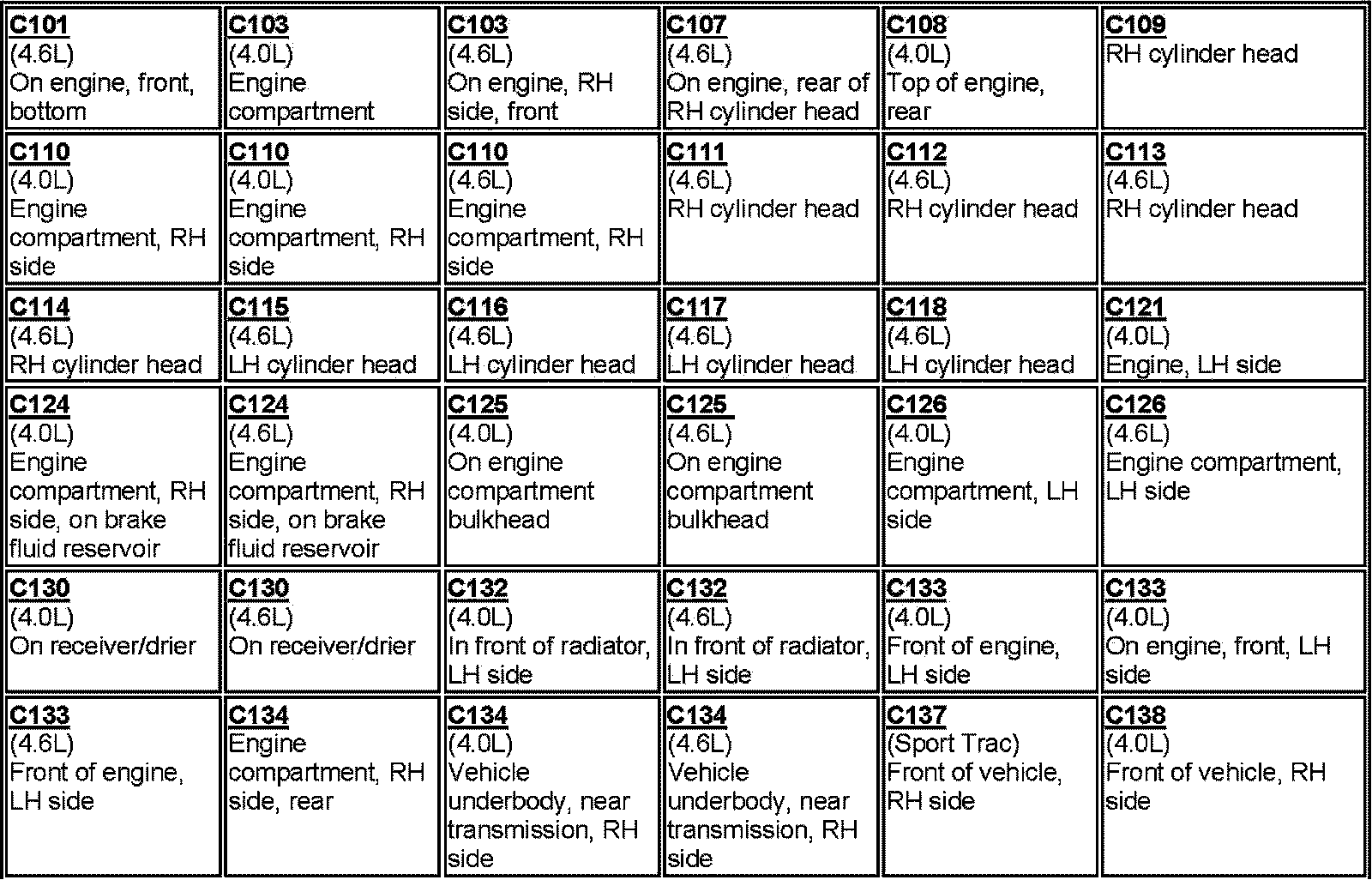

C101-C138:

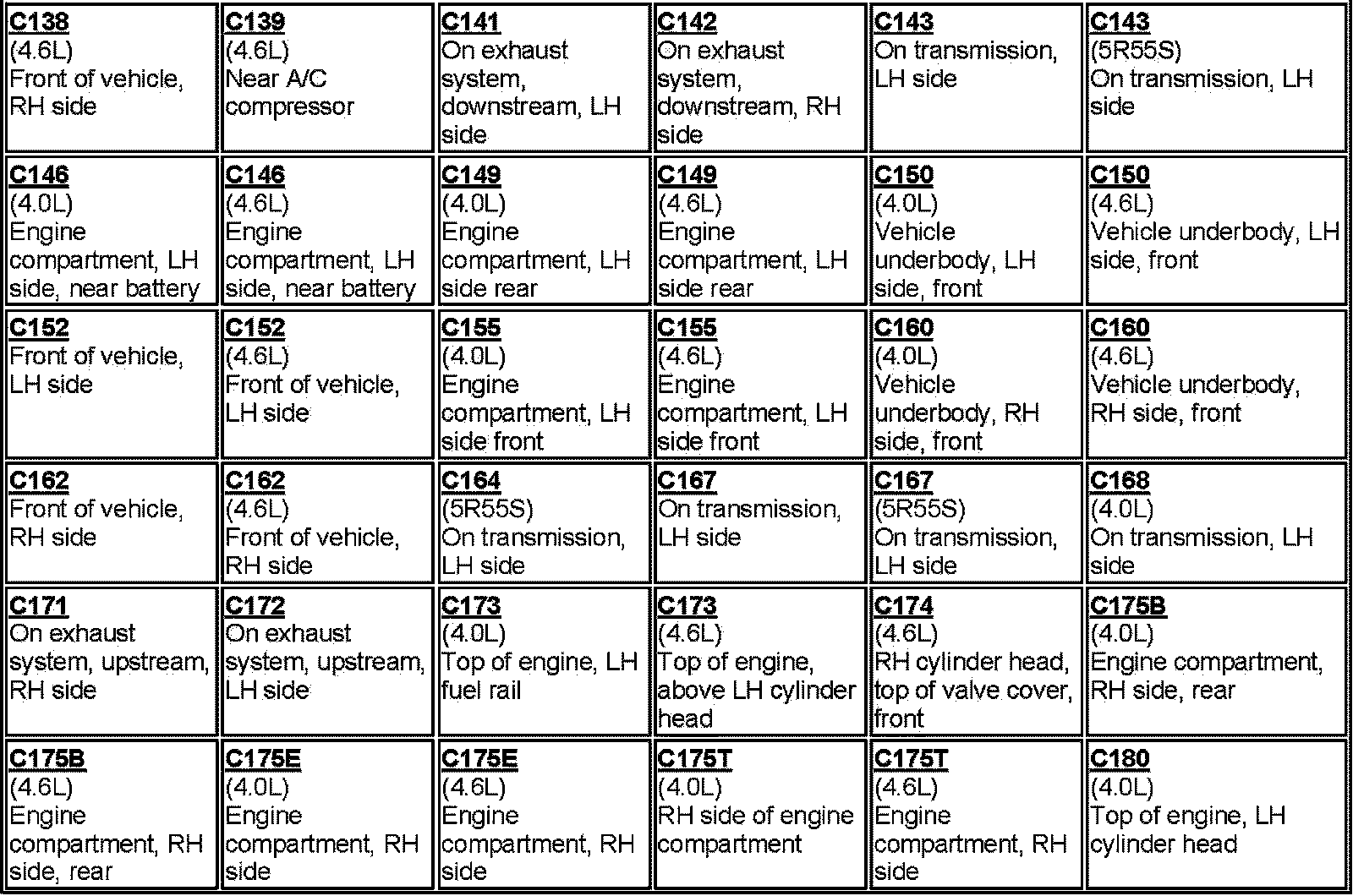

C138-C180:

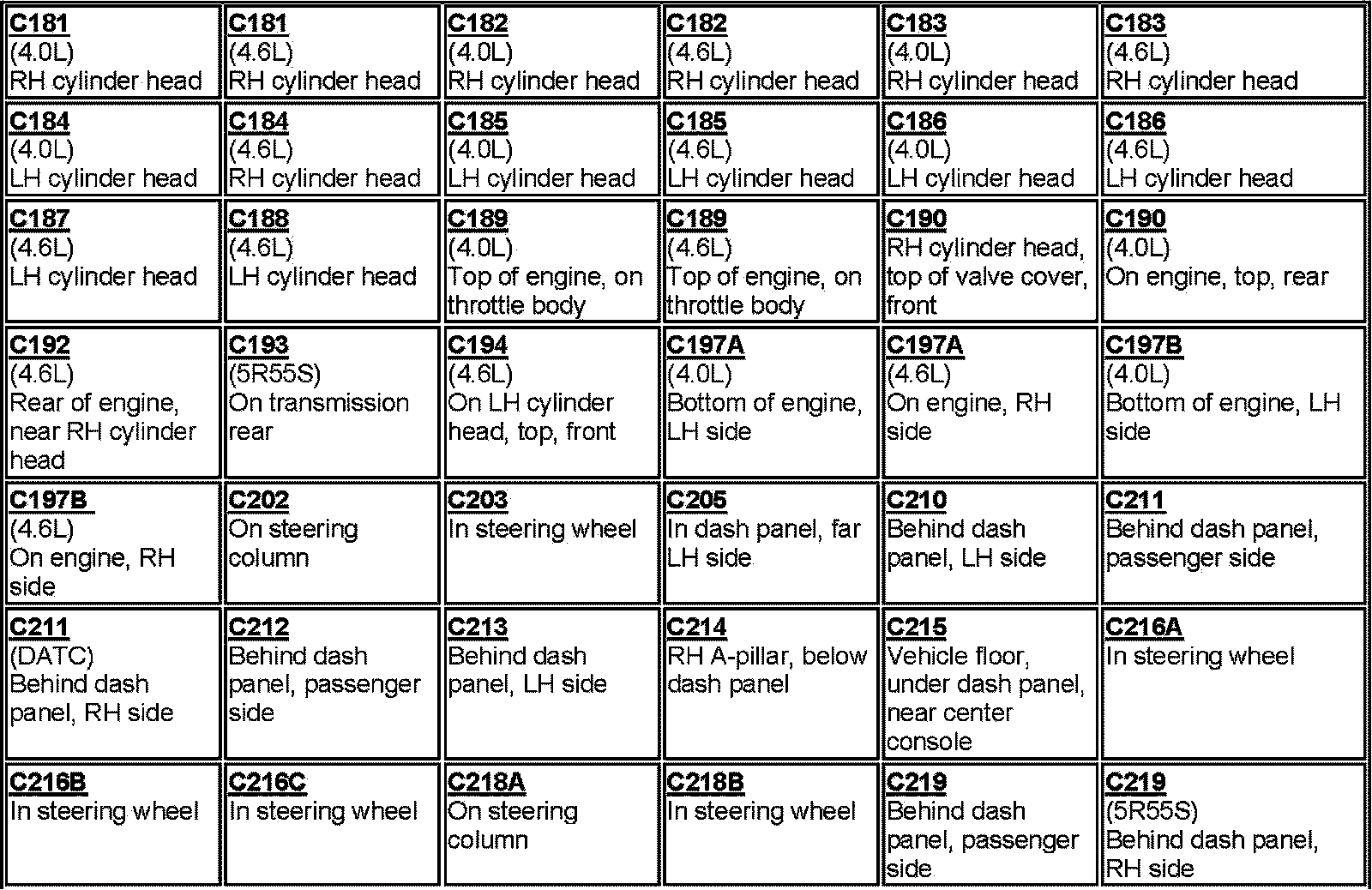

C181-C219:





C219-C311:

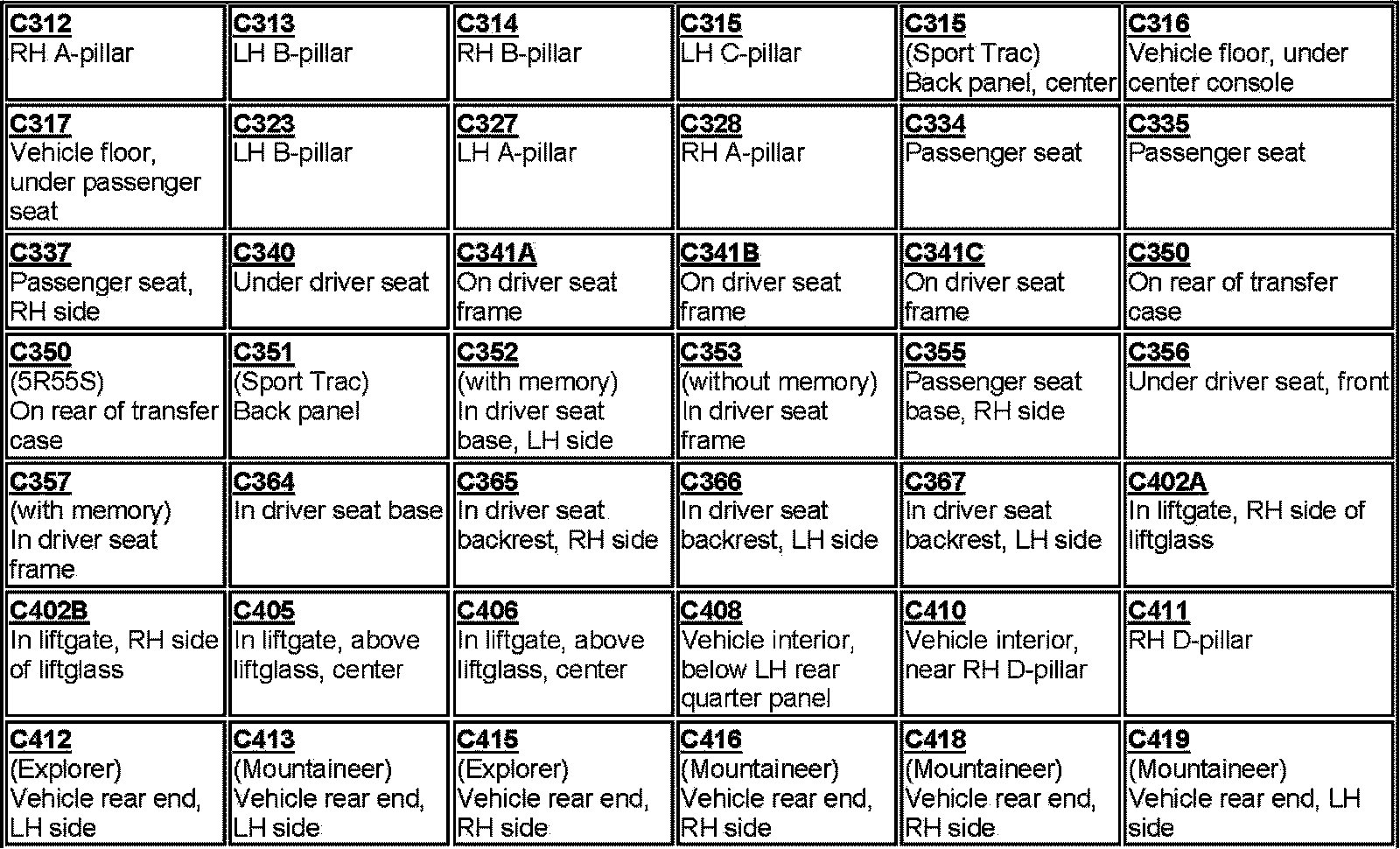

C312-C419:





C421-C511:

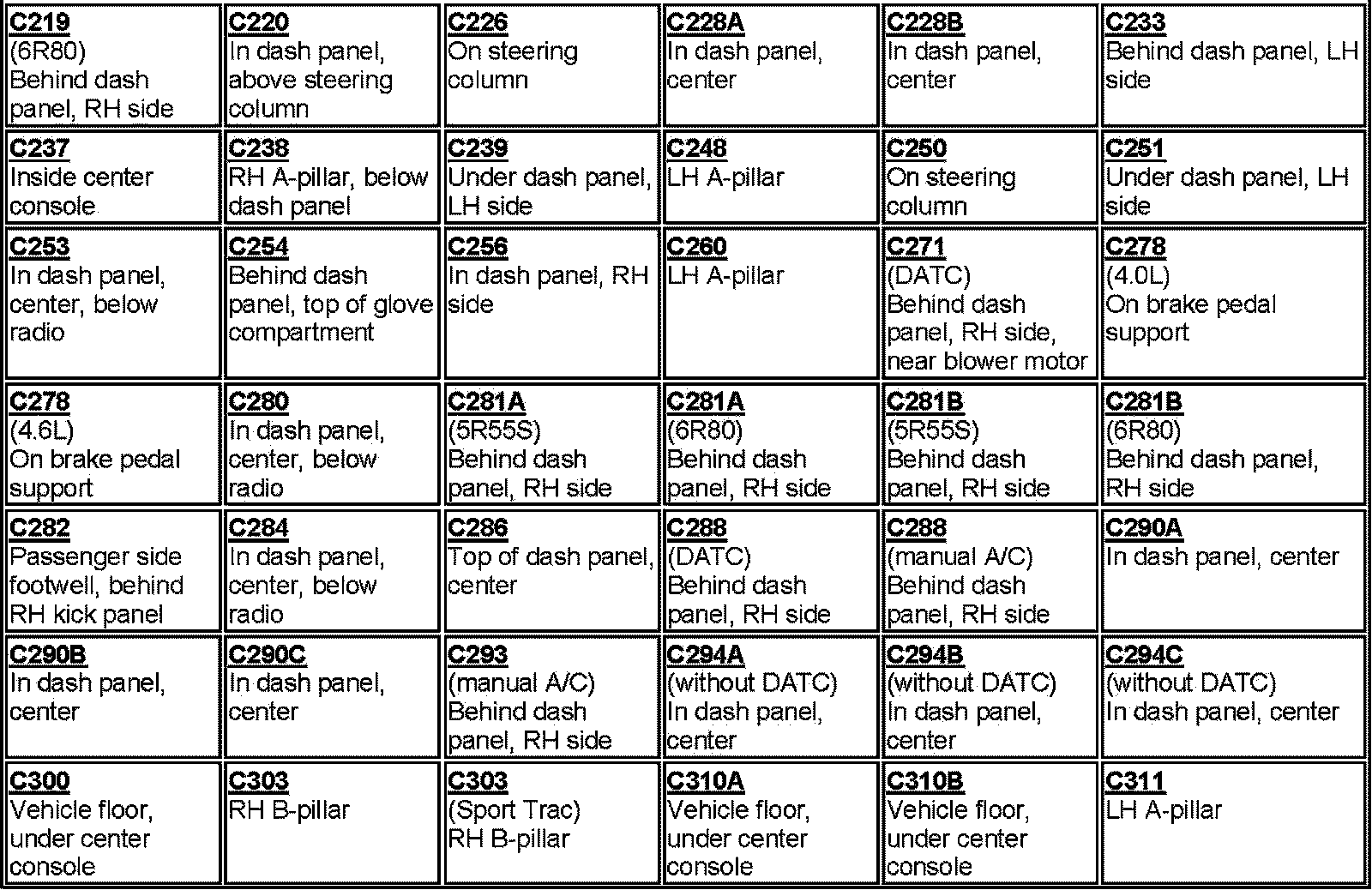

C520-C929:





C951A-C1127:





C1158-C2092:

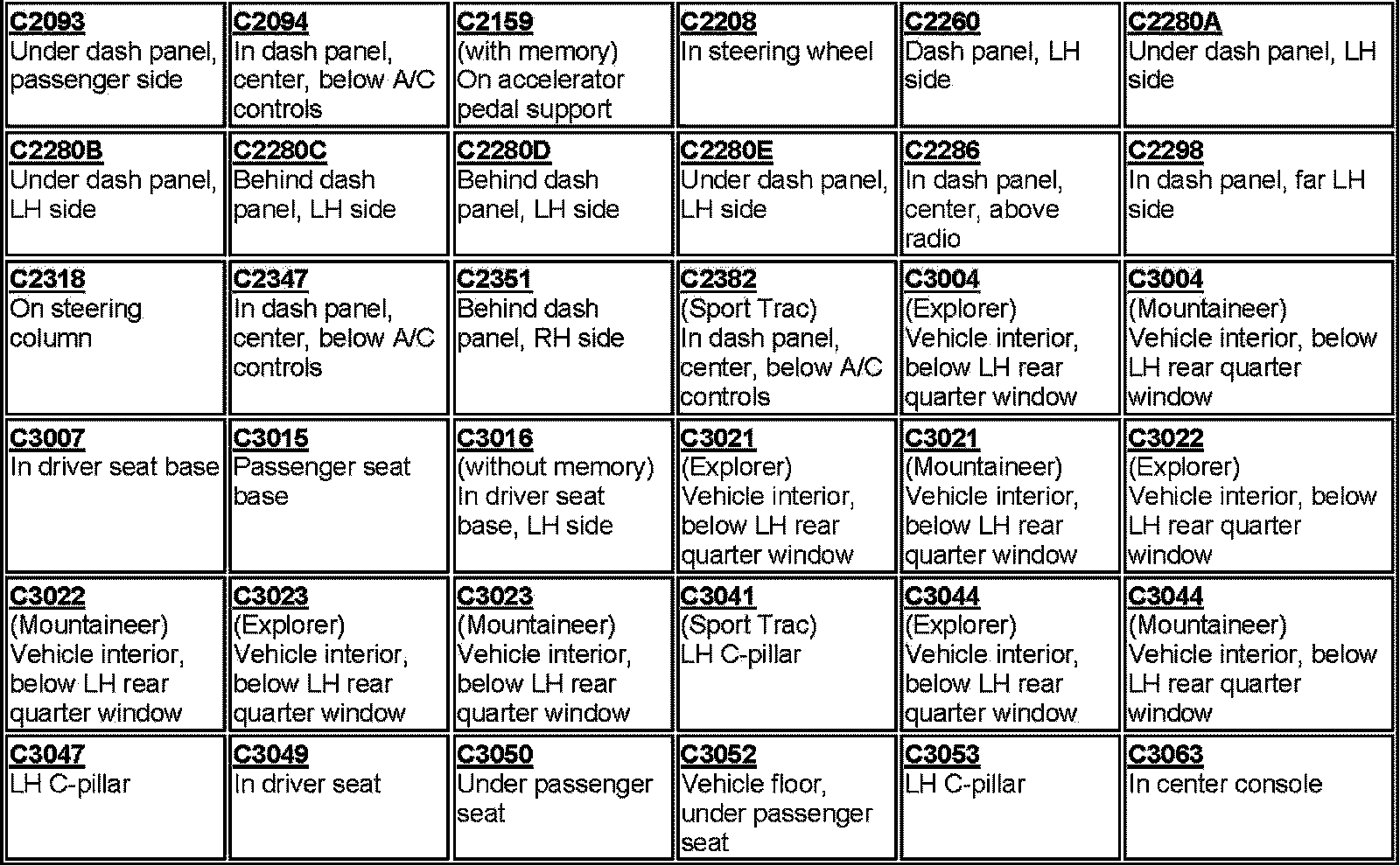

C2093-C3063:

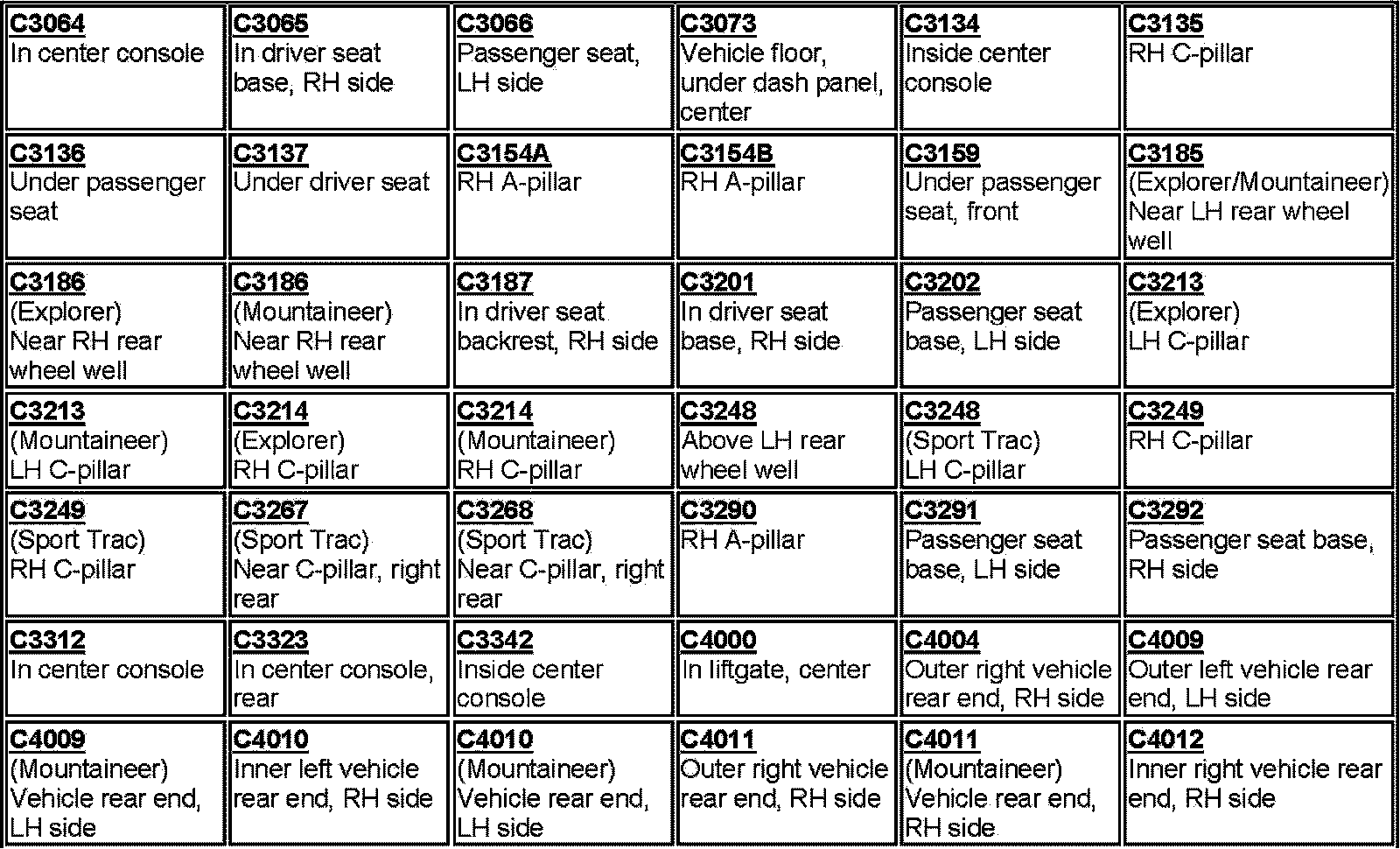

C3064-C4012:





C4012-C9029:
