Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2009
>>
Explorer 4WD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

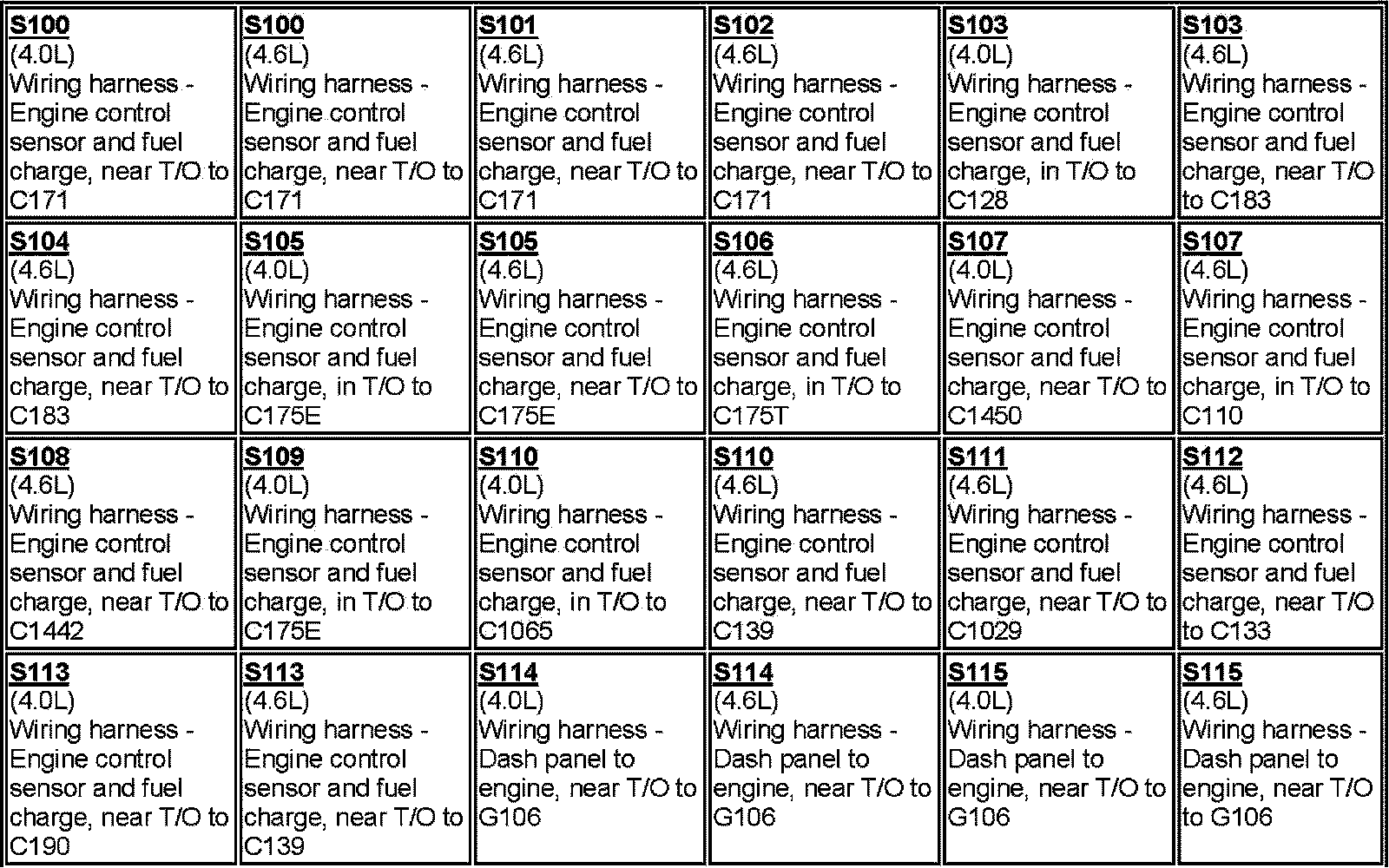

S100-S115:

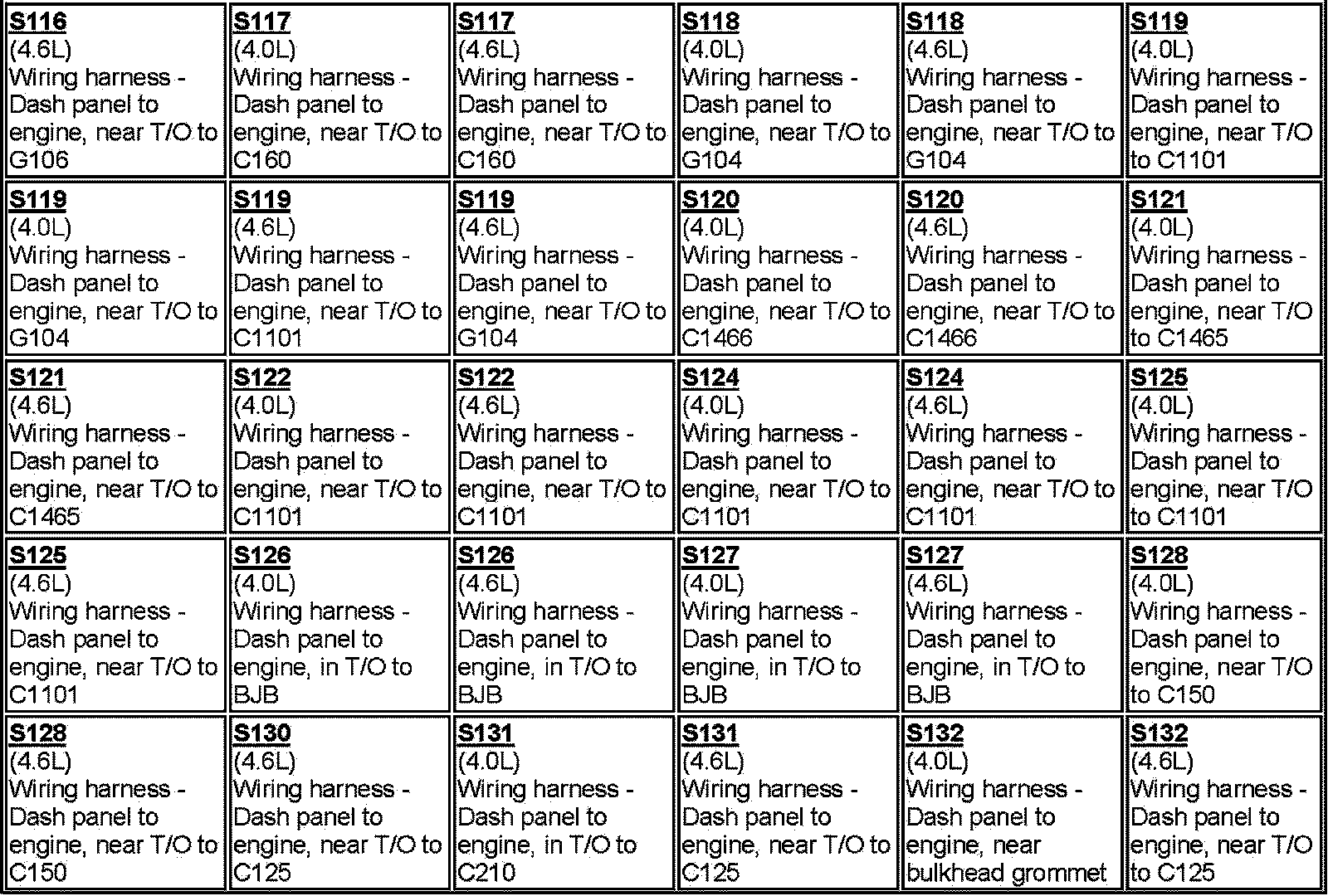

S116-S132:

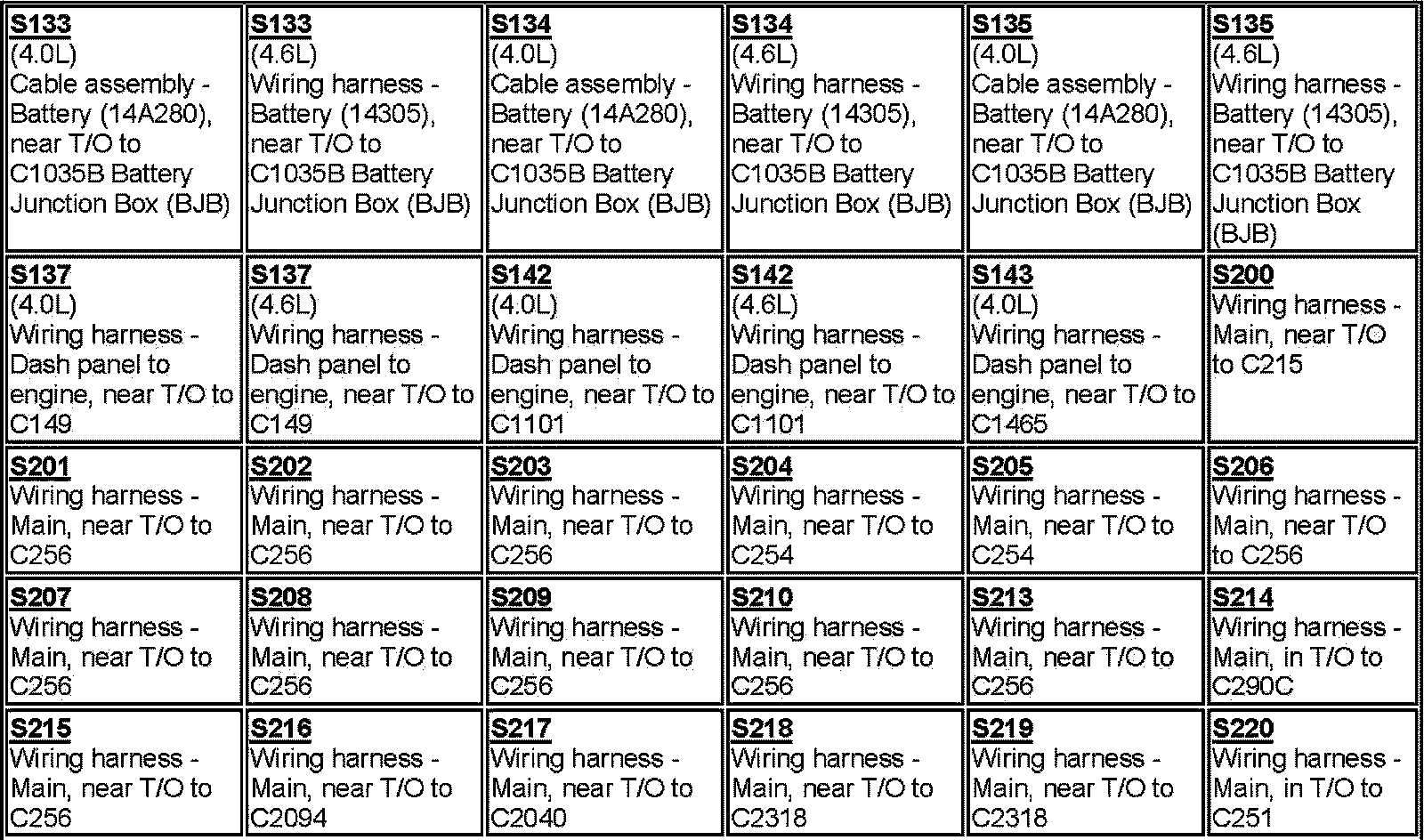

S133-S220:
S222-S317:
S318-S353:
S354-S419:

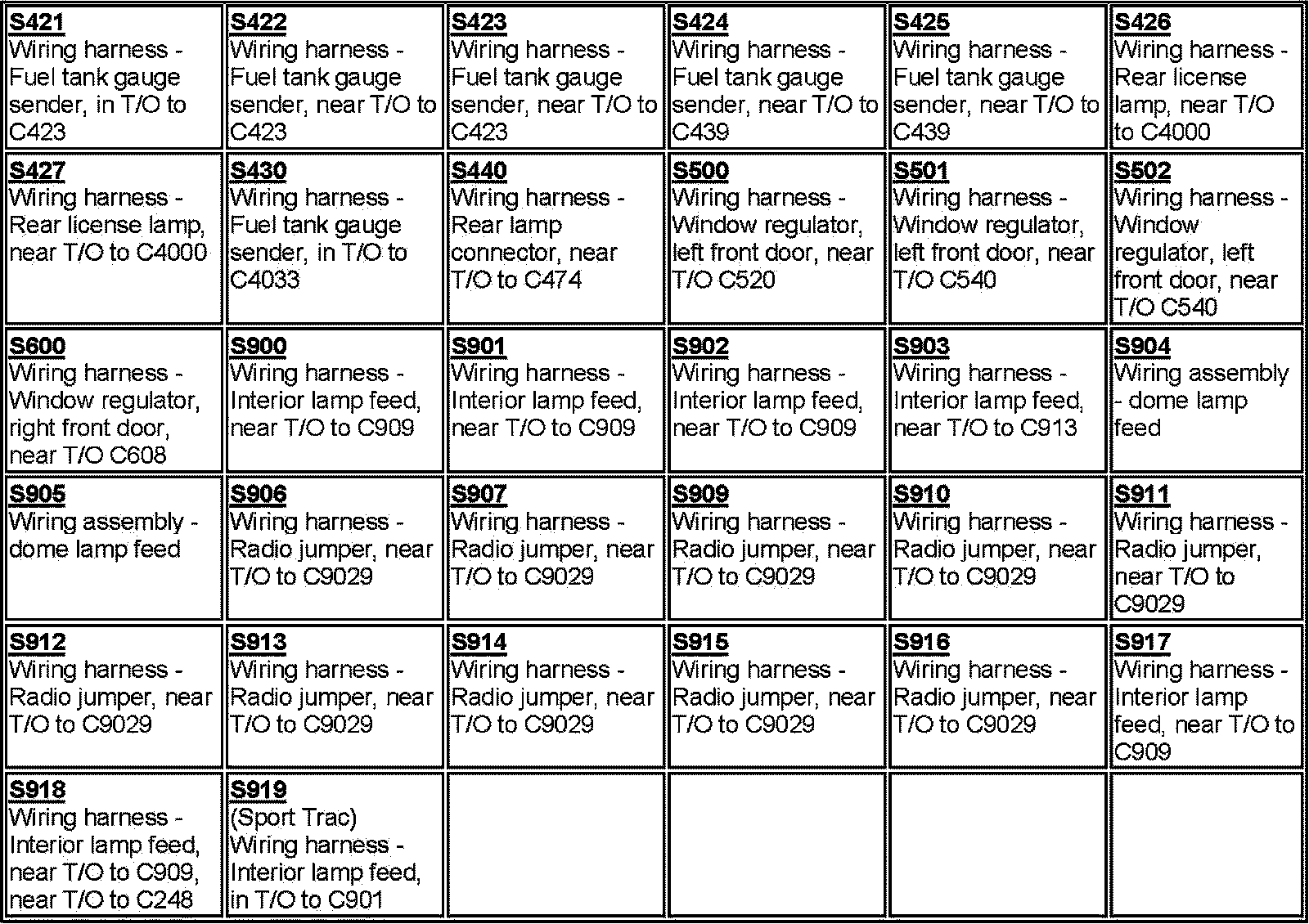

S421-S919:
