Vacuum Reservoir HVAC: Service and Repair

Vacuum Reservoir

Removal and Installation

1. Remove the evaporator core housing. For additional information, refer to Evaporator Core Housing Evaporator Core Housing.

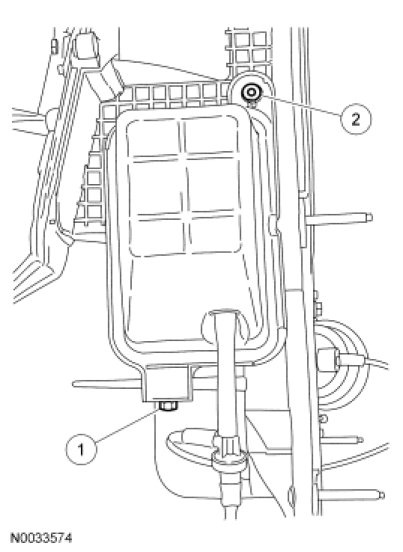

2. Remove the vacuum reservoir tank.

1. Remove the screw.

2. Drill out the heat stake.

- Remove the vacuum reservoir tank.





3. Disconnect the vacuum harness.





4. NOTE: Use a screw in place of the heat stake to install the vacuum reservoir.

To install, reverse the removal procedure.
